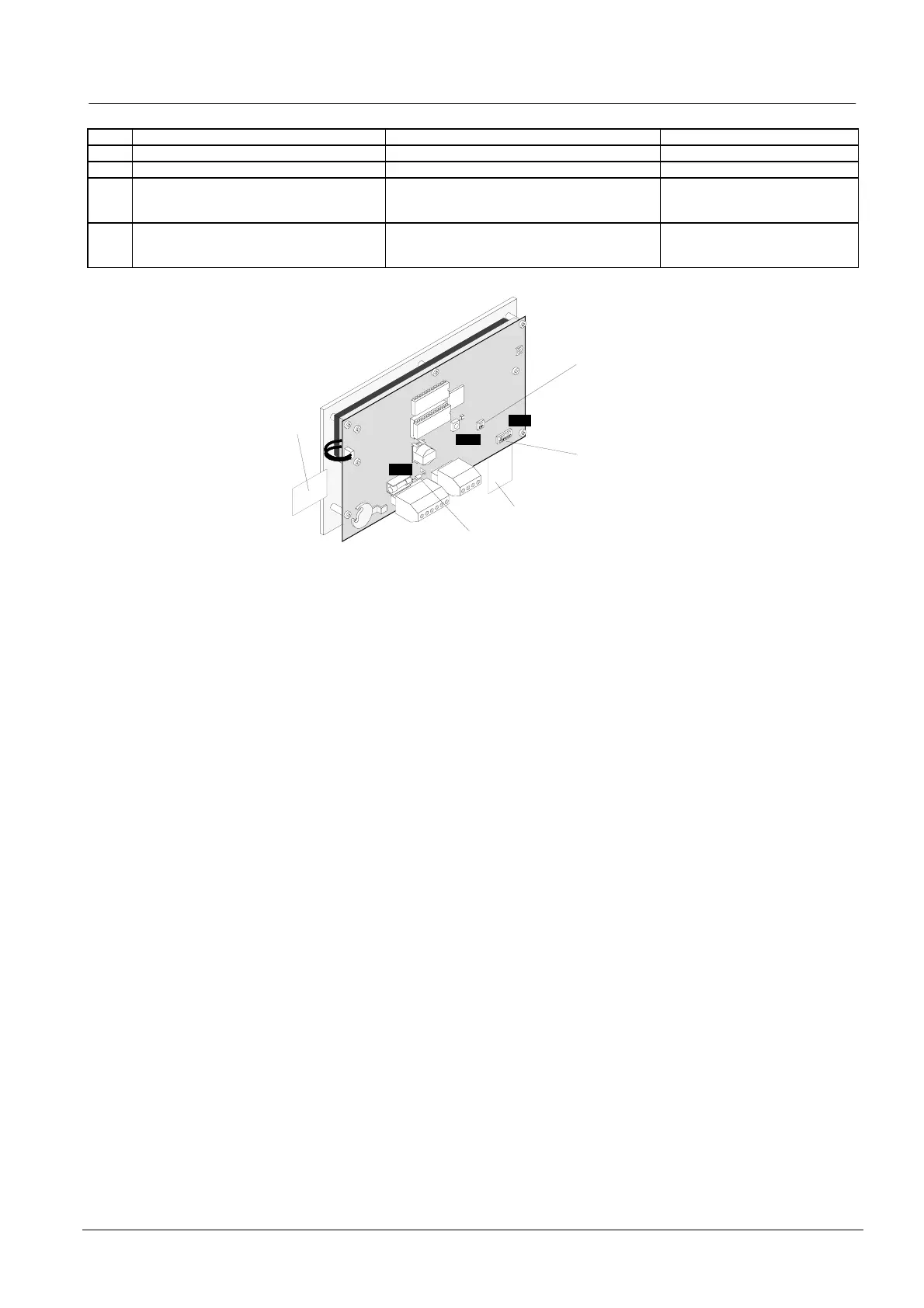

10.8 B3Q590/595 Floor repeater panel with control functions
Pos. Module Preparation Default
1 Programming switch 'S3': LON-Bus address According to the system documentation Set Address 0
2 Programming switch 'S4-1': Buzzer off Set 'S4-1' to 'ON' for commissioning Set to 'OFF'
3 Resistor 'R1': line termination element
'LON-Bus'
Stub line: if B3Q59x is not the last device, re-
move resistor 'R1', see description in document
007831
Inserted 100Ω
4 Inscription strips Inscribe and insert No inscription
Created with Word template DOT
(document 007874)
2
S3
R1
3
4
S4
1
4
Î Afterwards connect LON-Bus cable and supply cable, connect LED control if
necessary, installation -> see document 007831.
