Install modules
31
Building Technologies 007828_b_en_--
Fire Safety & Security Products 09.2008
15 Install modules
NOTE Do never connect the I-Bus from other stations together!
Procedure:

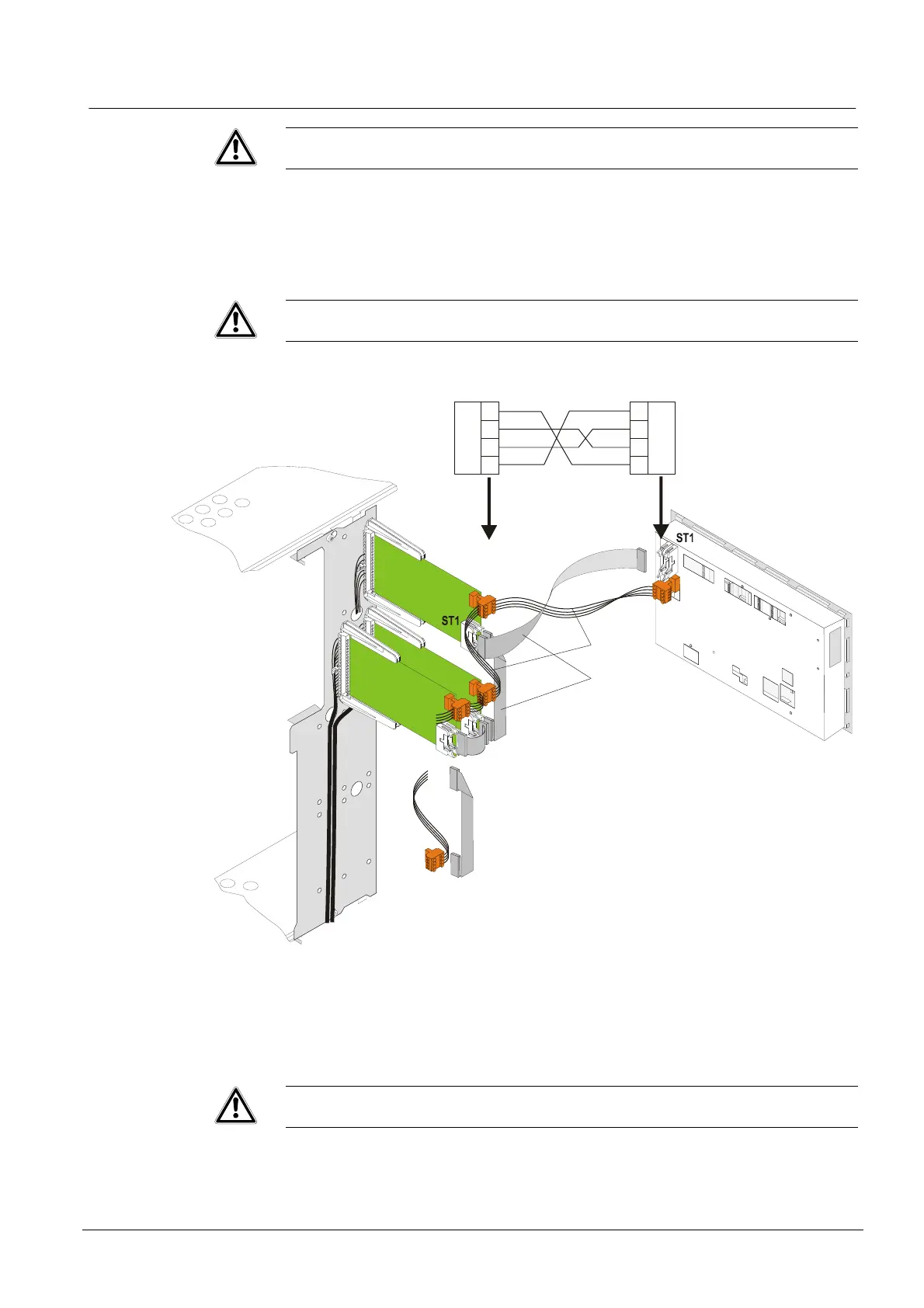

1. Install modules in accordance with the system documentation and fix them
2. Attach I-Bus flat cable (1) (ensure good contact)
3. Attach supply cable (2). Be aware that the I-Bus supply is wired correct
NOTE
Never connect or disconnect the flat cable and the supply cable when power
supply is switched on!
1
1
4
4
1
2
3
4
K1
4
3
2
1
K1
B3Q700 (FC)
E3C011
K1
blue
blue
green
red
K1
E3G070
E3M111
Z3I380
to additional I-Bus modules
1
2
E3C011
B3Q700 (FC)
4. Attach battery cable
5. Attach temperature sensor to battery
6. Electrically isolate controls (e.g. remove relays from base)
7. Remove module chassis from the housing front panel and install it in the housing
NOTE
When switching off for brief periods, remove the mains fuse (if available) or
remove minus potential from power unit and minus potential battery.
