Connecting the 24 V supply
Connecting the 24 V supply

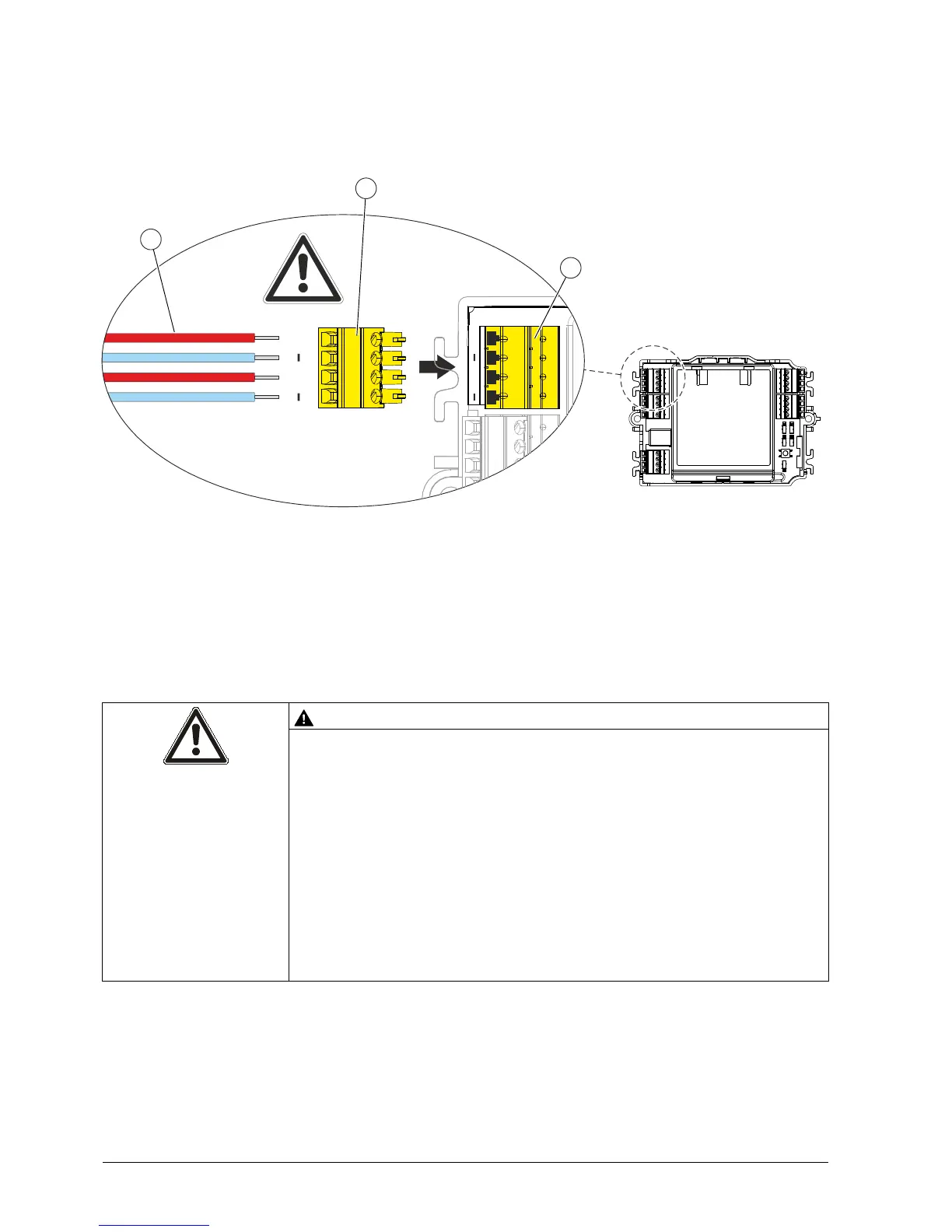

1 Wires 2 Pluggable terminal blocks
3 Connection for the 24 V secondary
side supply
Damage to the device due to current flowing in the wrong direction
Observe the polarity of the power supply source when making the
connection!
Observe the terminal assignment inscription on the printed circuit board
Only mount the pluggable terminal block for the 24 V supply into the
designated connection.
When mounting the terminal block on the connection for the 24 V supply,
ensure that it is not offset or twisted.
