Siemens FDCIO223

Structure and function
44
Building Technologies
009122_e1_en_--
Fire Safety
2015-10-06

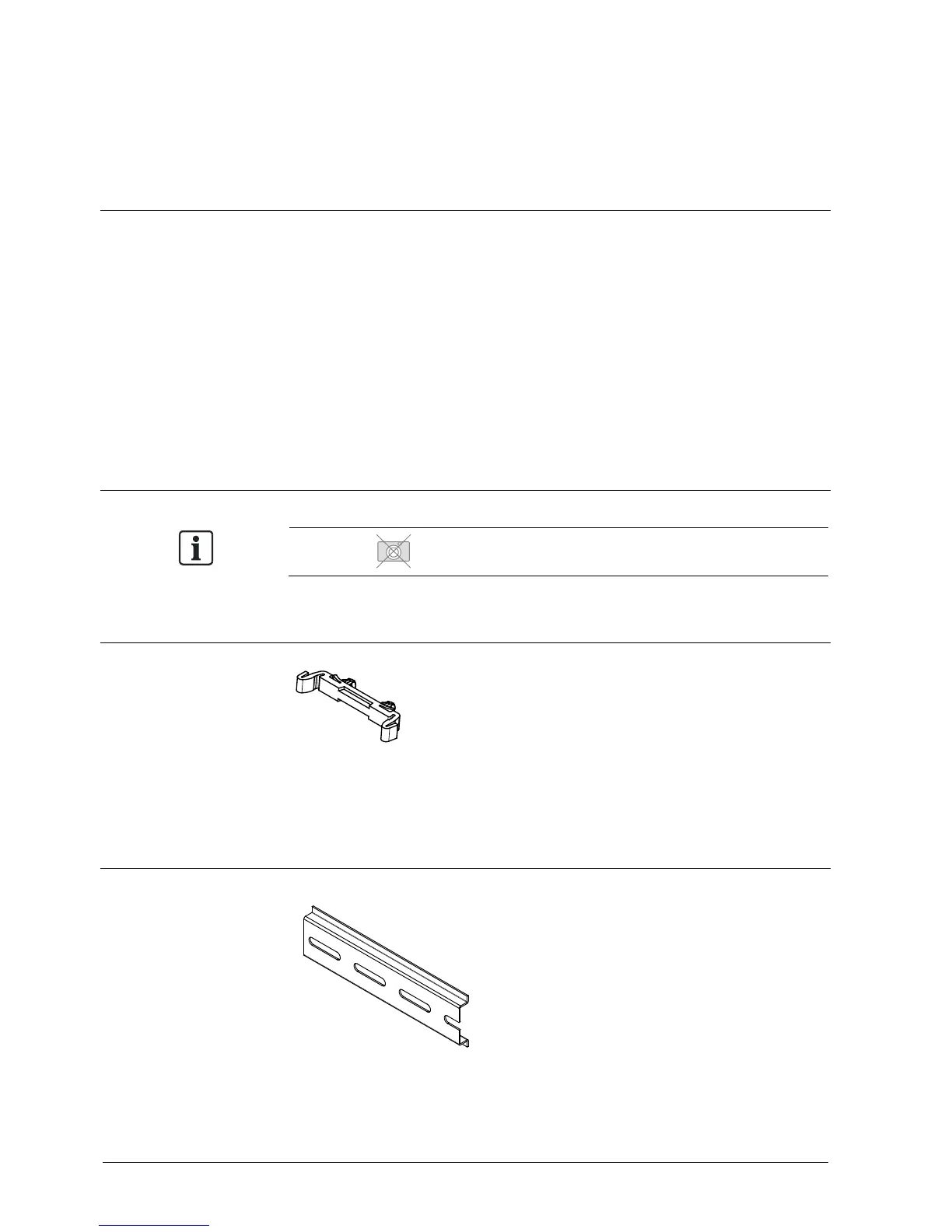

3.7 Accessories
3.7.1 Enclosed accessories
The FDCIO223 input/output module is supplied with the following accessories:
 2x resistors 560 Ω, 0.25 W
 2x resistors 680 Ω, 0.25 W
 2x resistors 2.7 kΩ, 0.25 W
 2x resistors 3.3 kΩ, 0.25 W
 2x bidirectional voltage reference diodes for terminating
the collective detector lines
 2x mounting feet FDCM291 for mounting on a TS35 DIN rail
3.7.2 Optional accessories
The symbol is used if there are no graphics for an accessory.
3.7.2.1 Mounting foot FDCM291
 For device mounting on a DIN rail TS35
 Two mounting feet must always be used
 Compatible with:
– Input module FDCI22x(CN)
– Input/output module FDCIO22x(CN)
– Multi line separator module FDCL221M
 Order no.: A5Q00003855
3.7.2.2 DIN rail TS35
 Standard DIN rail for installing devices
 Width: 35 mm
 Length: 122 mm or 288 mm
 Compatible with:
– FDCL221 line separator
– Mounting foot FDCM291
 Order no. (length 122 mm): BPZ:5644780001
 Order no. (length 288 mm): BPZ:5644230001
