5.2 Installation without housing
Note the positive and negative poles.
Only connect one wire per terminal. This is the only way to ensure the connection
is failure-free for the entire service life of the device.
If you are installing the module without the housing, proceed as follows:

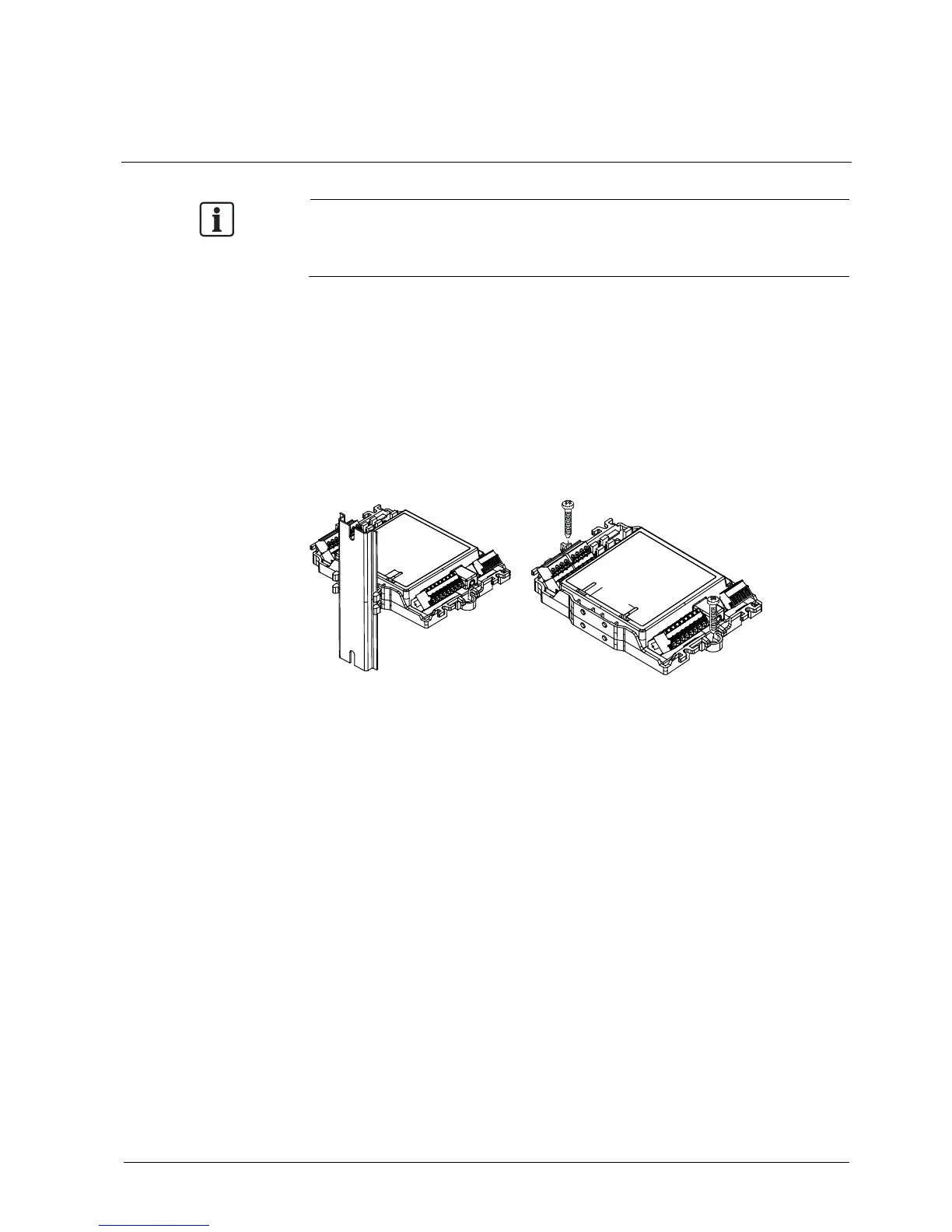

1. Mount the module on an even surface or on a TS35 DIN rail, using the two
FDCM291 mounting feet supplied (see figure). To make sure that the LEDs
remain visible at all times, the housing cap is transparent. Pick a suitable
mounting position, ensuring that the LEDs will remain visible at all times during
operation.
2. Connect cables to corresponding terminals (see connection diagram).
3. Secure cables on module with cable ties.
