Cable with diameter > 1.5 mm²
If the cable diameters on the inputs/outputs are greater than 1.5 mm
2
, auxiliary
terminals must be used:
In the case of cables with a diameter of 1.5…2.5 mm
2
, connection terminal
DBZ1190-AB can be used.
In the case of cables with a diameter of >2.5 mm
2
, an appropriate terminal must
be provided by the customer.

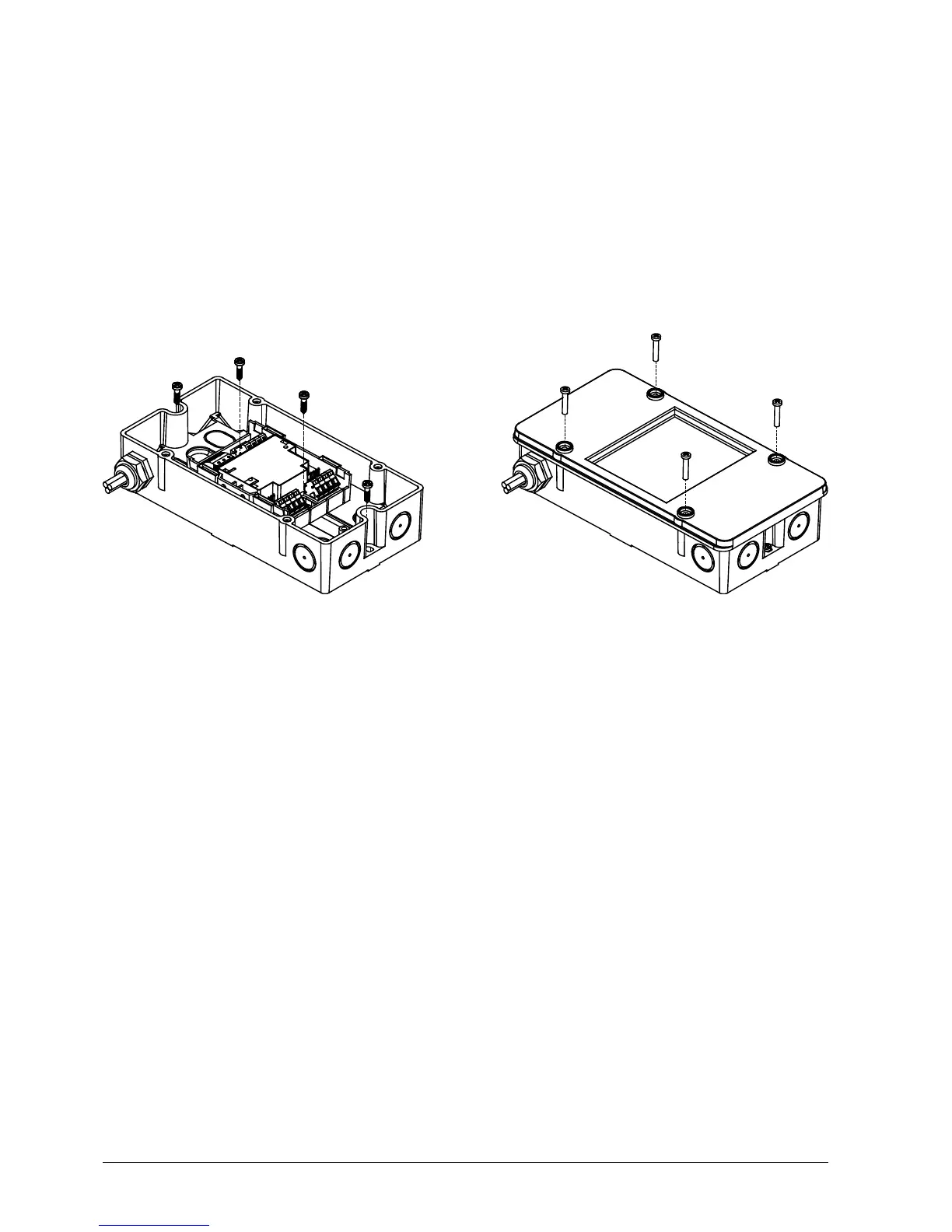

The terminal can be positioned inside the housing.
