40/73
Building Technologies Division Basic Documentation LME39… CC1P7106en

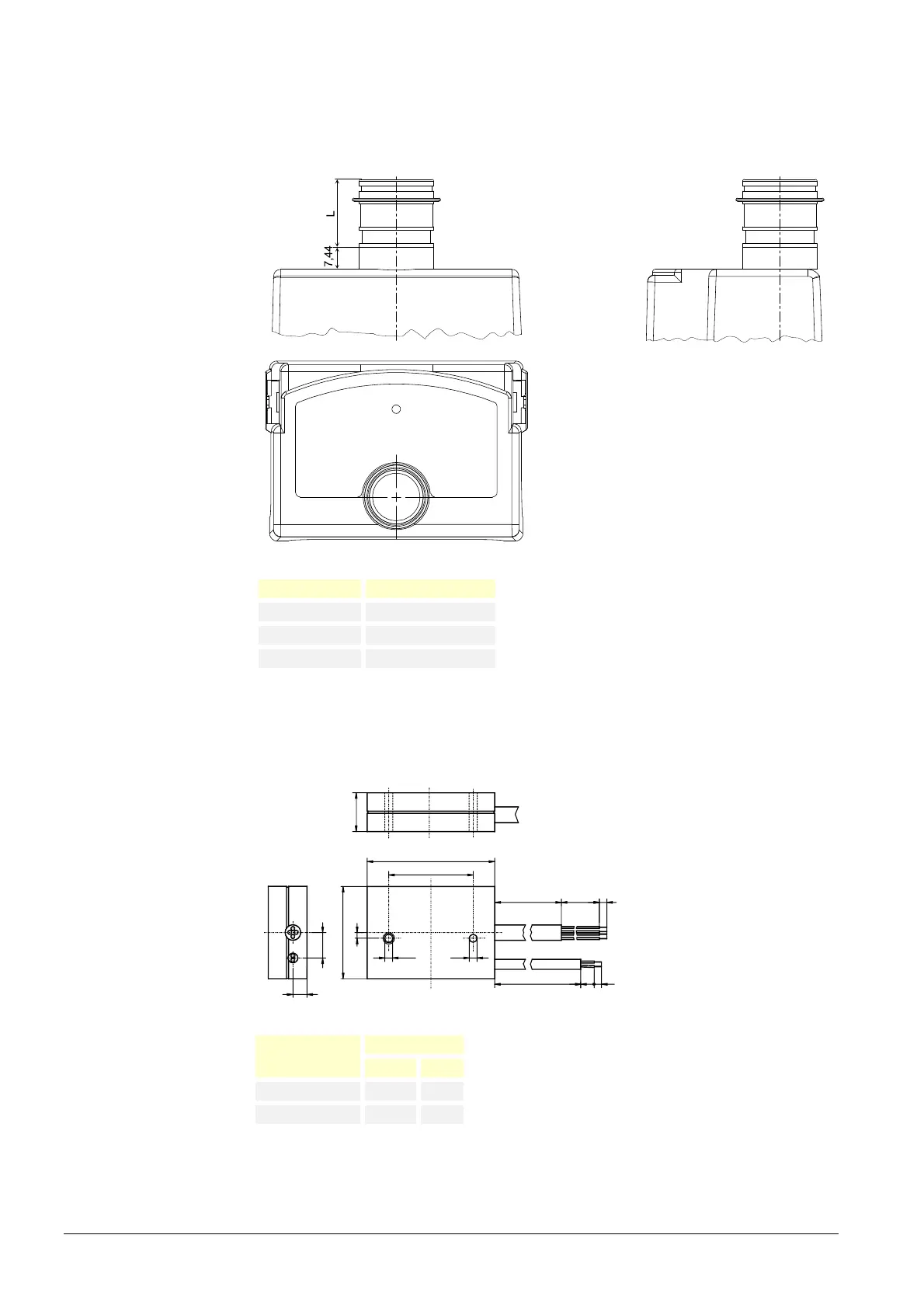

13 Dimensions 08.12.2017
13.2 LME39... with lockout reset button extension
AGK20...
Dimensions in mm
7101m03/1108
Figure 18: Dimensions LME39... with AGK20...
Designation Length (L) in mm
AGK20.19 19
AGK20.43 43
AGK20.55 55
Table 8: Dimensions table AGK20...
13.3 Ancillary unit AGQ3.xA27
Dimensions in mm
90,5
60
220
69
6
A
B6
5,4
5,4
13
18
4
65,6
27,5
7106m02/0405
Figure 19: Dimensions AGQ3.xA27
Product no. Dimensions
A B
AGQ3.1A27 500 19
AGQ3.2A27 300 34
Table 9: Dimensions table AGQ3.xA27
