Building Technologies Division Basic Documentation LME39… CC1P7106en
16 Menu-driven operation 08.12.2017
16 Menu-driven operation
16.1 Assignment of levels
The various levels can be accessed via different button combinations. The parameter
level can only be accessed by entering a password.
P
7105z10e/0716
Standby
VSD
AF
>1 s
P
Change to
operating mode
ESC
P
Info level
P
Service level
P
Parameter level
P
Operating mode
>8 s
or
or
automatic
return after 120 s
>1 s
>3 s
<8 s
>8 s

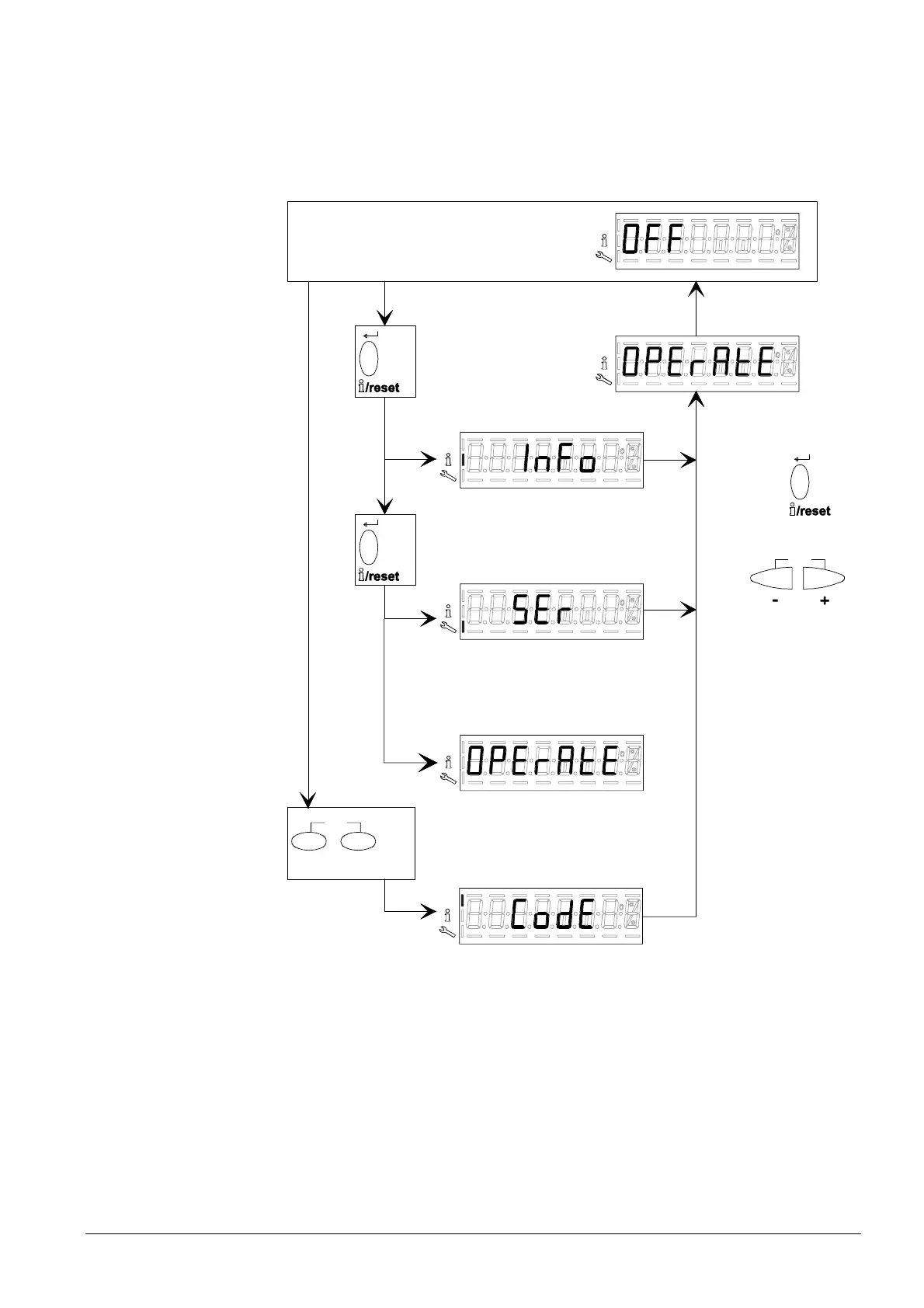

Figure 22: Assignment of levels
