Siemens POLYMOBIL III - Checking the High-Voltage kVNOM and KVACT

POLYMOBIL III RXB8-115.061.02 Page 12 of 24 Siemens AG
Rev. 01 10.95 CS PS 24 Medical Solutions
4 - 12 Notes on trouble-shooting
Checking the high-voltage kV
NOM
and kV
ACT
4

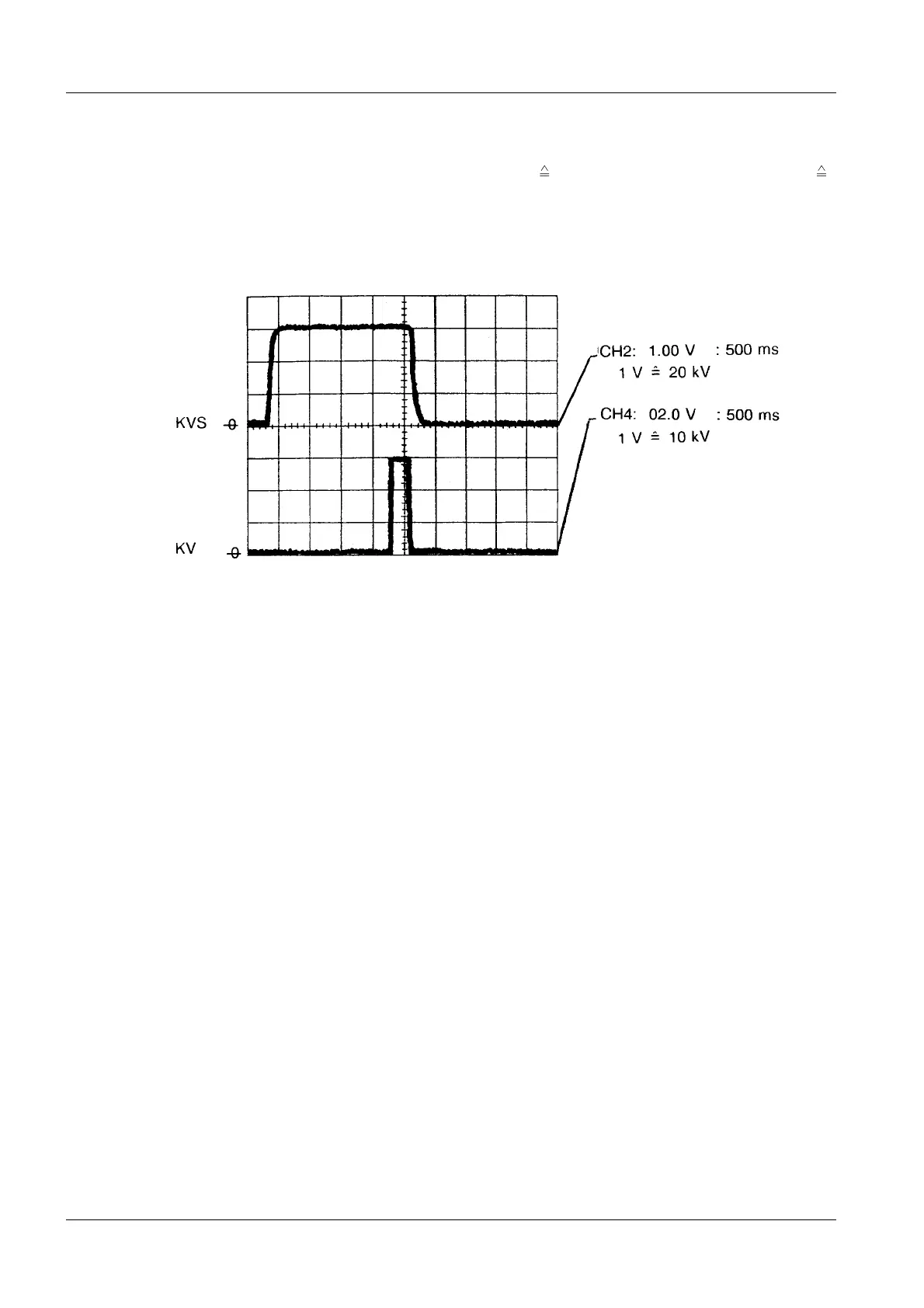

• Connect oscilloscope on D910 to MP "kVS" (1 V 20 kV nominal value) and "kV" (1 V
10 kV actual value) and "GND" (X038I-6).
• POLYMOBIL ON
• Trigger an exposure with the default values 60 kV; 10 mAs.
