Siemens POLYMOBIL III Service Manual

Notes on trouble-shooting 4 - 19
Siemens AG RXB8-115.061.02 Page 19 of 24 POLYMOBIL III
Medical Solutions Rev. 01 10.95 CS PS 24
Adjusting the mAs 4
• Unplug plug X2 on D910.
• Establish connection (jumper) from plug contact X2.5 (side of the board) toMP "P5 VR"
on D910 .
• Establish connection (jumper) from plug contact X2.6 (side of the board) to MP "GND" on
D910.

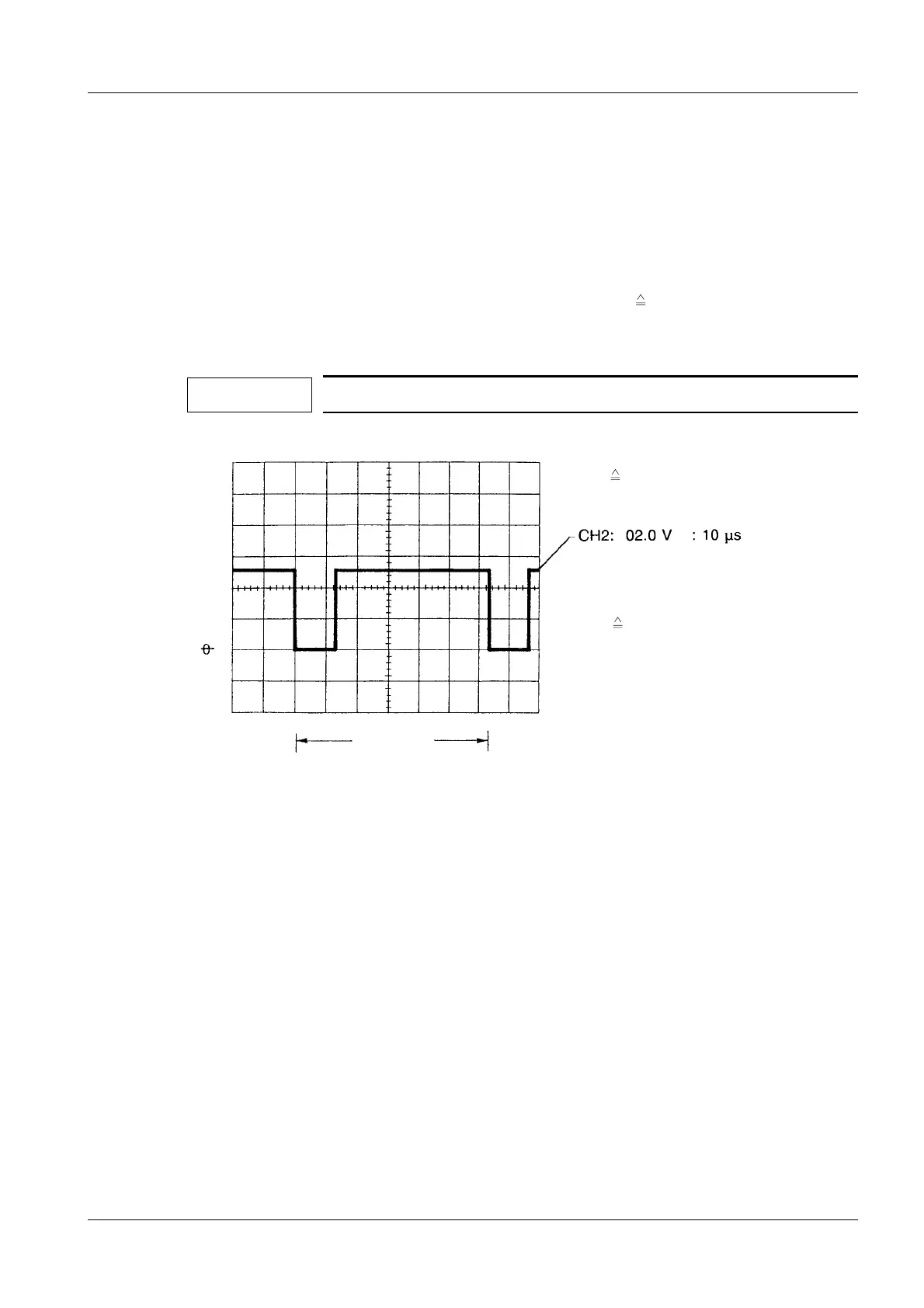

• Connect oscilloscope on D910 to MP "F1" and "GND" (1 V 3,2 kHz).
• POLYMOBIL ON
• Adjustment with potentiometer P7 on D910 (adjust to 16 kHz)
Err 6 is displayed.
NOTICE
62.5 µs
5 V 16 kHz
1 V 3.2 kHz
