Siemens POLYMOBIL III Service Manual

2 - 1
Siemens AG RXB8-115.061.02 Page 1 of 2 POLYMOBIL III
Medical Solutions Rev. 01 10.95 CS PS 24
Test with the unit in the operative condition 2
High-voltage test with the radiation detector 2
• POLYMOBIL ON
• Connect radiation detector to the oscilloscope and place it in the beam path of the
POLYMOBIL III (see Fig. 1).
• Set the slide switch on the radiation detector to measuring range 1 (1 point visible).
• Set an SID of 40 cm and collimate onto the radiation detector with the light localizer
(Fig.1).
• Trigger check exposures using the exposure data specified in the oscillograms (see
Fig.2).
The amplitude can be different for each detector.

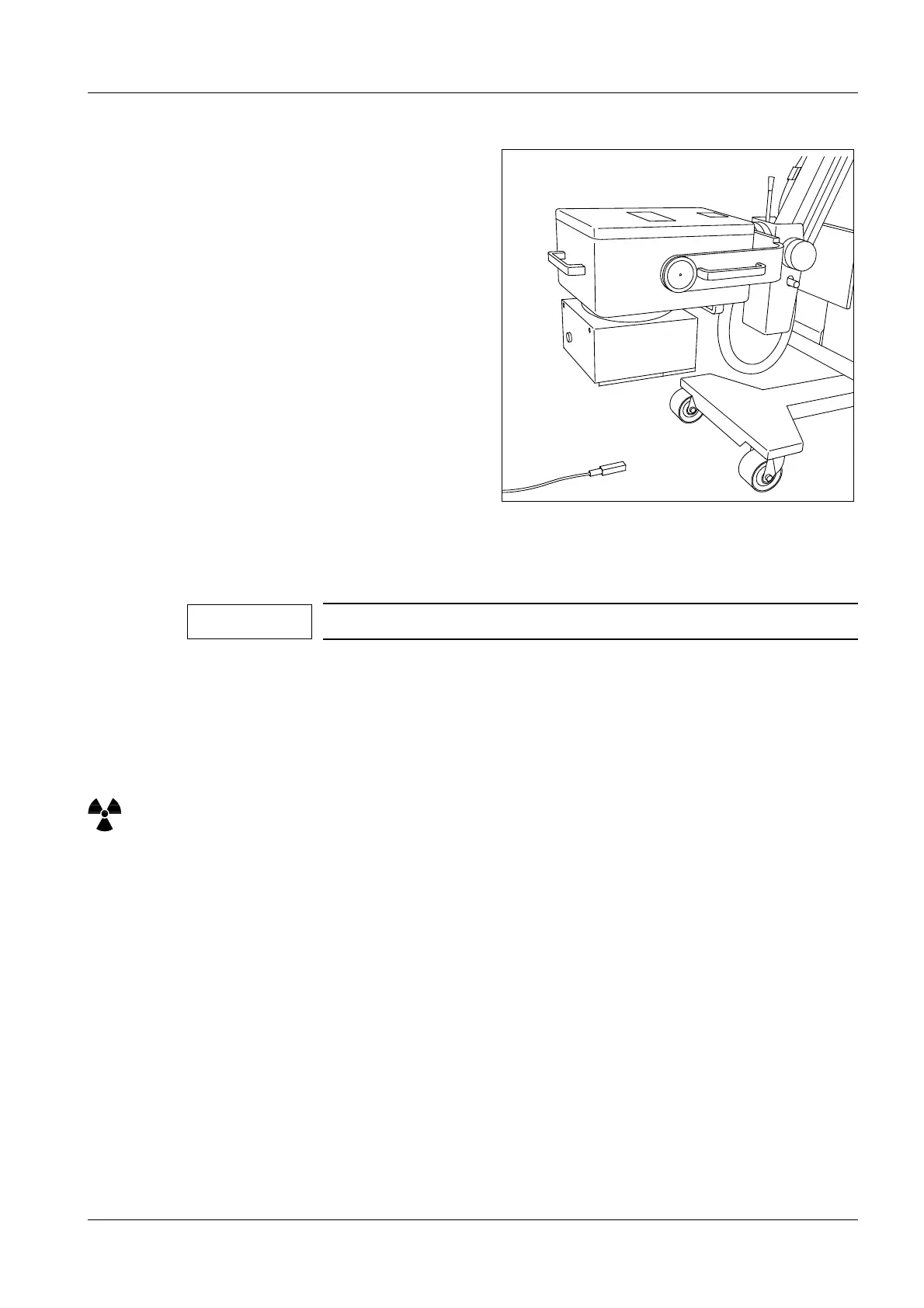

Fig. 1
NOTICE
