Network topologies
SCALANCE X-100
12 Operating Instructions, 12/2016, A2B00060666-08

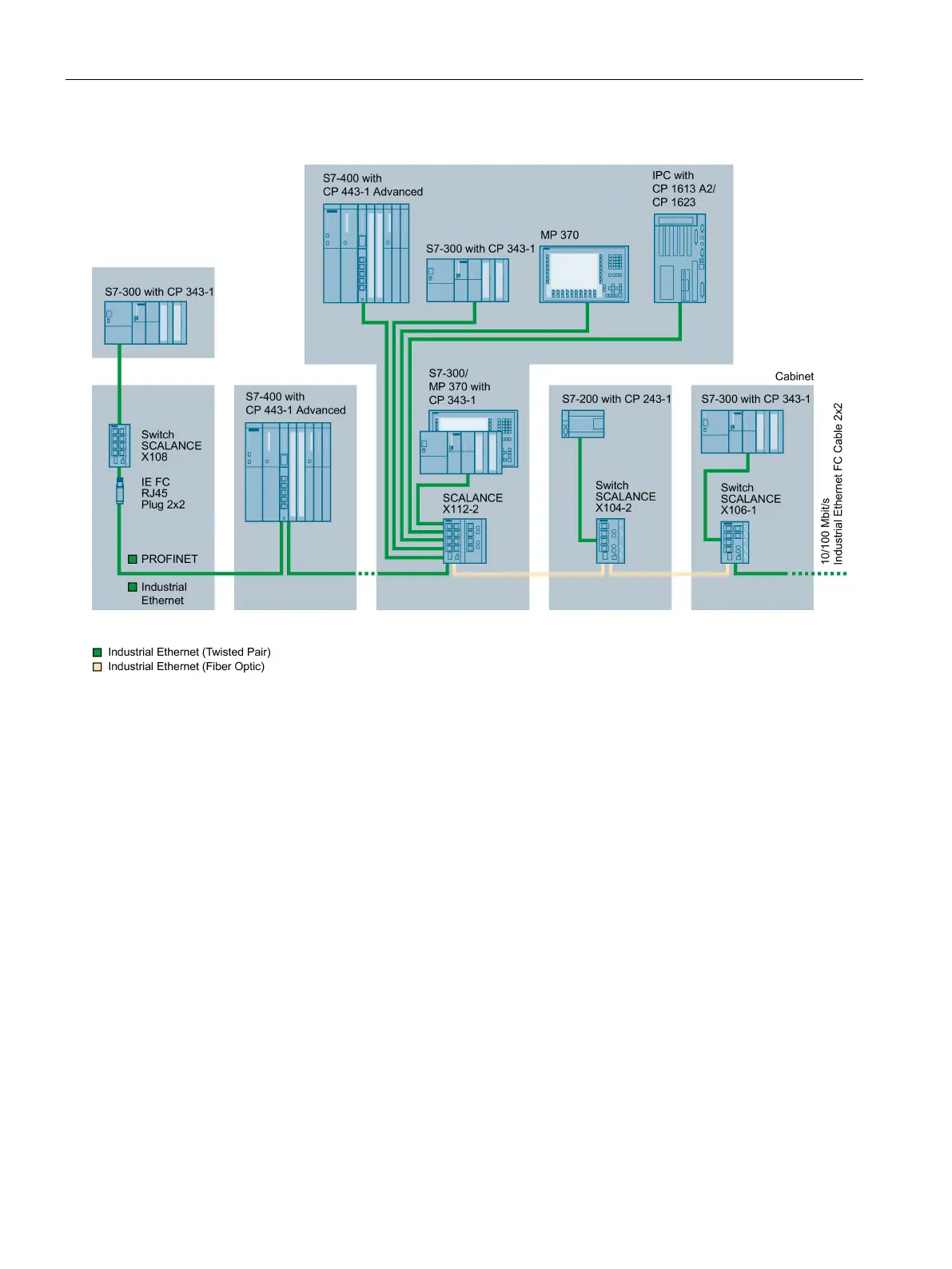

Figure 2-2 Example of an electrical/optical star topology with SCALANCE X112-2 and SCALANCE X104-2
