Switching technology allows extensive networks to be set up with numerous nodes and
simplifies network expansion.
Which topologies can be implemented?
Using the IE switches of the SCALANCE X-100 product line, you can implement star
topologies.
Note
Keep to the maximum permitted cable lengths of the devices you are using. You will find the
permitted cable lengths in the section "
Technical specifications (Page 43)".

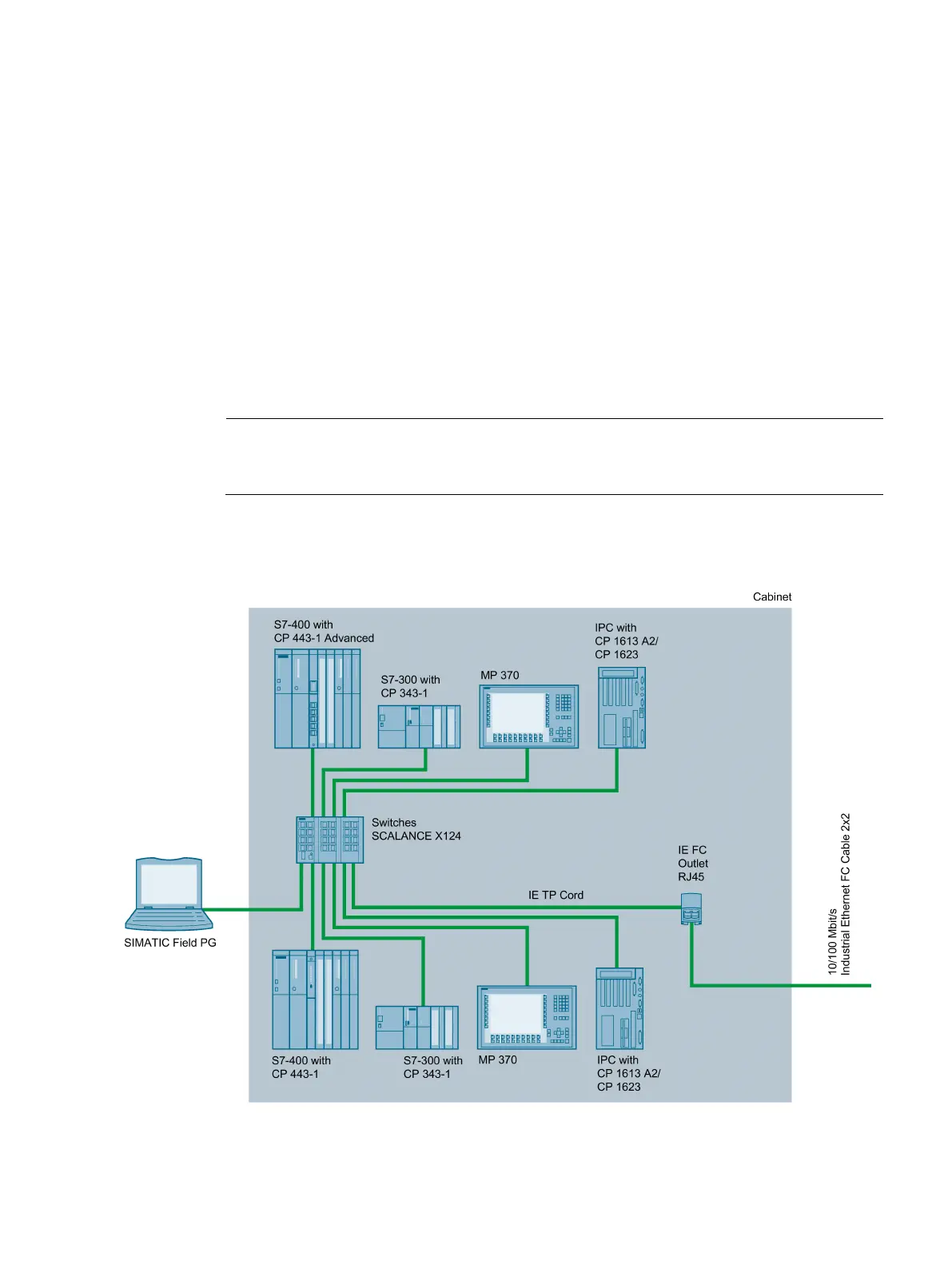

Figure 2-1 Example of an electrical star topology with SCALANCE X124
