Assembly
4.4 Installation on a standard rail
SCALANCE X-100
Operating Instructions, 12/2016, A2B00060666-08
31

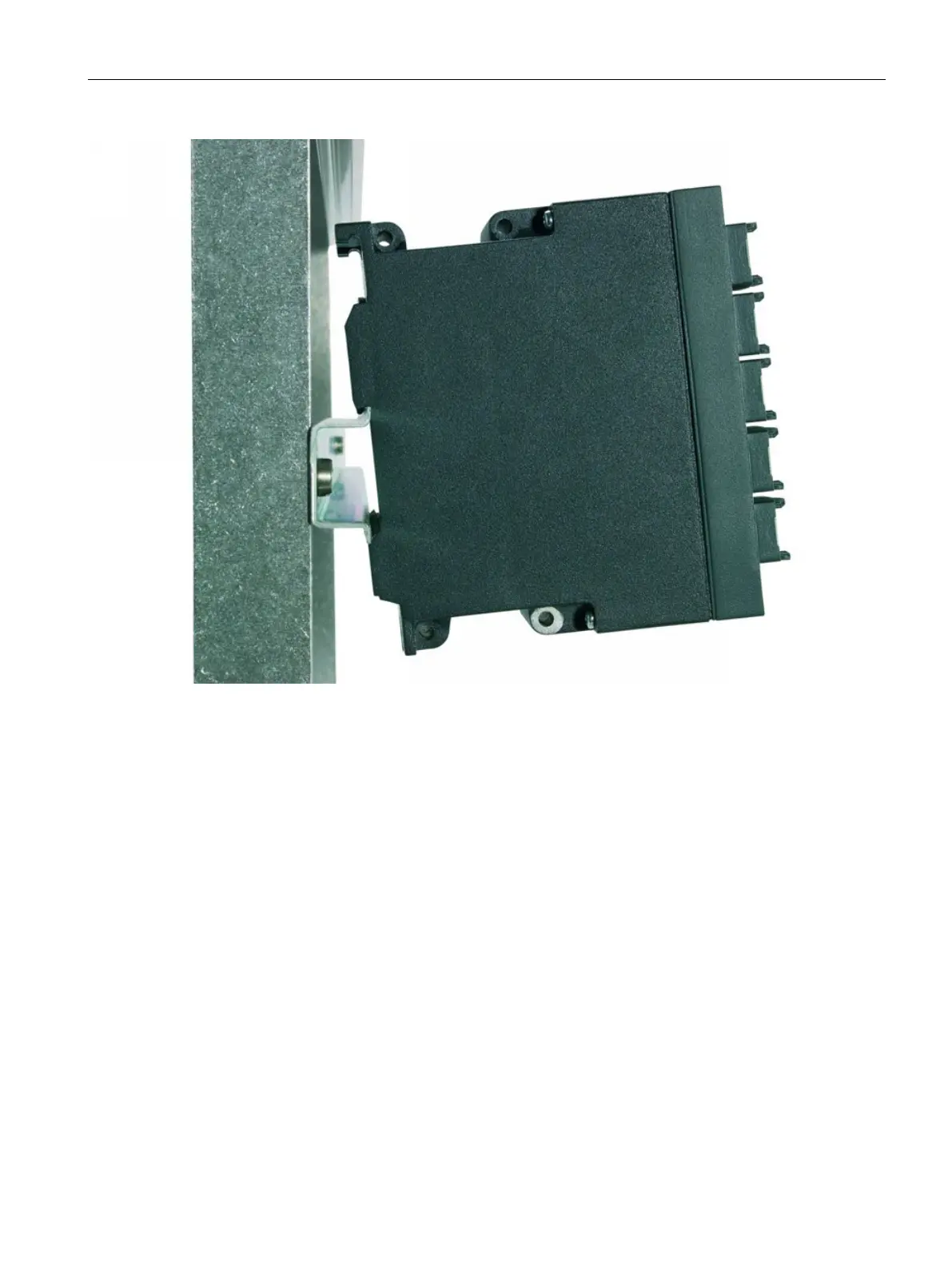

Figure 4-2 Removal from a 35 mm DIN rail
Installation on a standard rail
Installation on a SIMATIC S7-300 standard rail
To install the device on an S7-300 standard rail, follow the steps below:
1. Place the first housing guide of the device on the top edge of the S7-300 standard rail.
2. Screw the device to the underside of the standard rail (tightening torque 2 Nm).
3. Fit the connectors for the power supply. See also section "Power supply (Page 37)".
