Description of the device
3.3 TP ports (twisted pair)
SCALANCE X-100
20 Operating Instructions, 12/2016, A2B00060666-08
3.2.7
SCALANCE X124
Possible connections
The SCALANCE X124 has 24 RJ-45 jacks for the connection of end devices or other
network segments.

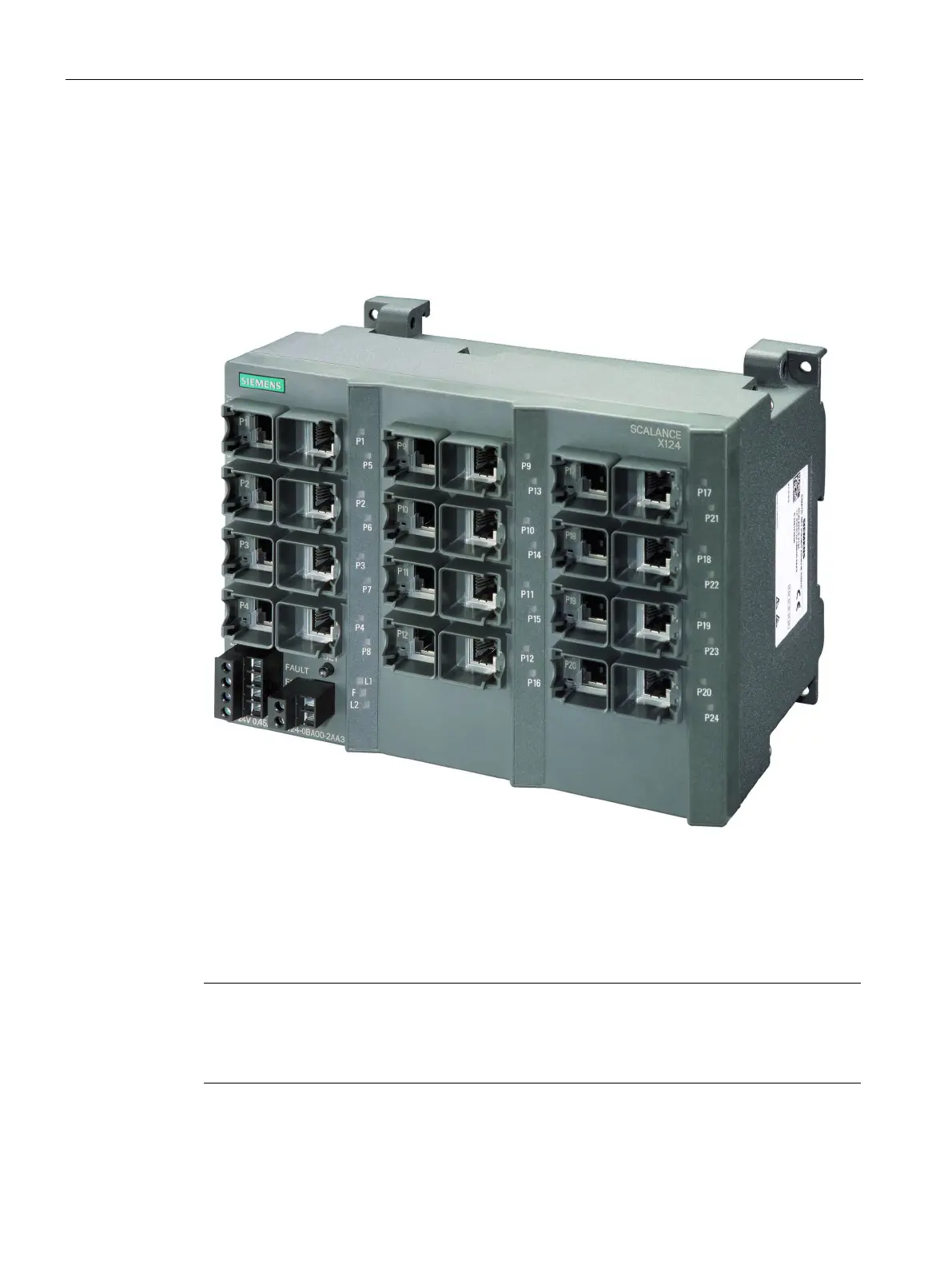

Figure 3-7 SCALANCE X124
3.3
TP ports (twisted pair)
Note
Strain relief of the interfaces
To prevent weights or mechanical movement that can affect an interface causing interrupted
contact, fix the cables to a cable guide or rail at short intervals.
