Description of the device
3.2 Product properties
SCALANCE X-100
Operating Instructions, 12/2016, A2B00060666-08
19
3.2.6
SCALANCE X116
Possible connections
The SCALANCE X116 has 16 RJ-45 jacks for the connection of end devices or other
network segments.

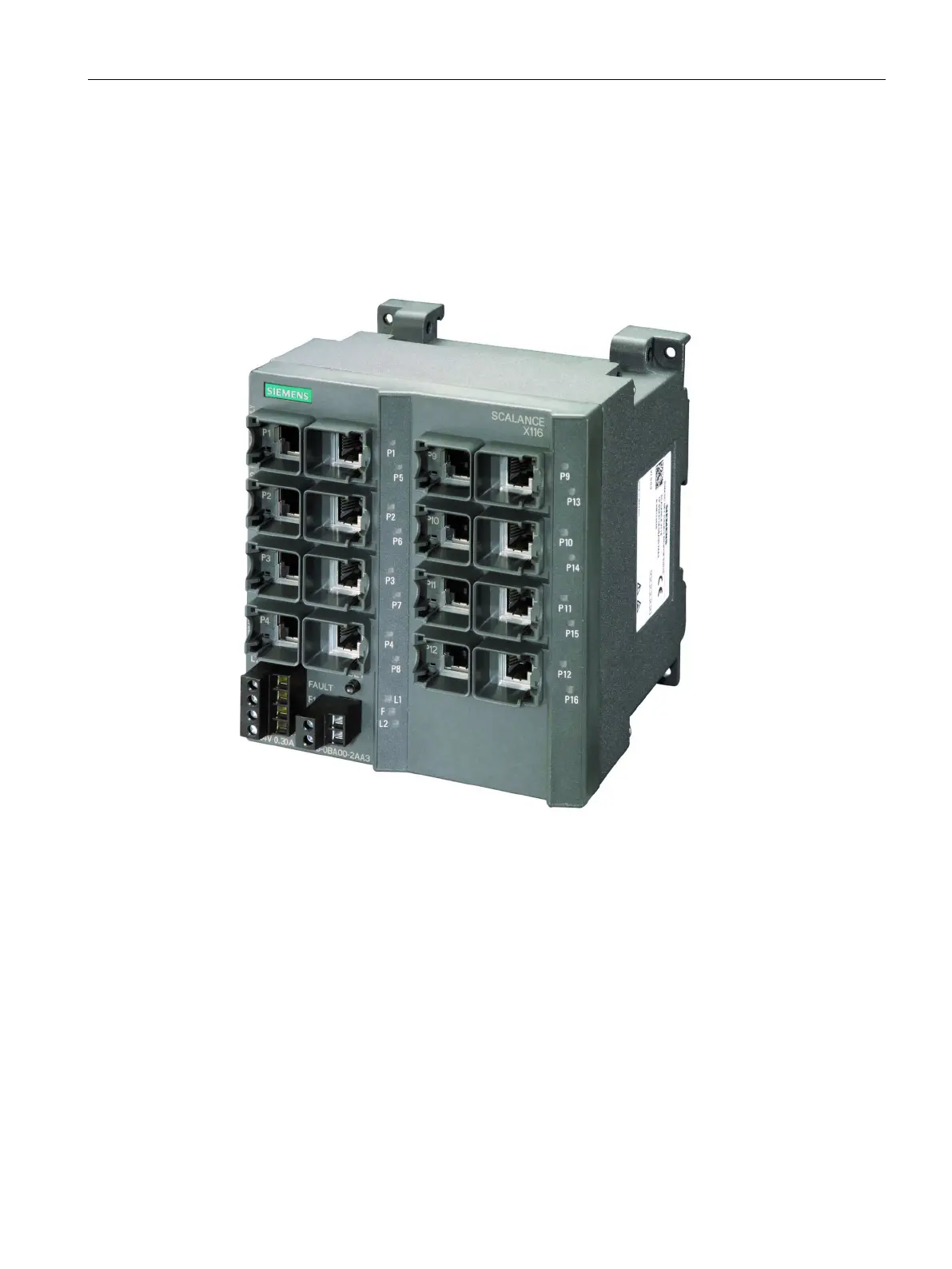

Figure 3-6 SCALANCE X116
