Description of the device
3.2 Product properties
SCALANCE X-100
16 Operating Instructions, 12/2016, A2B00060666-08
3.2.3
SCALANCE X108
Possible connections
The SCALANCE X108 has eight RJ-45 jacks for the connection of end devices or other
network segments.

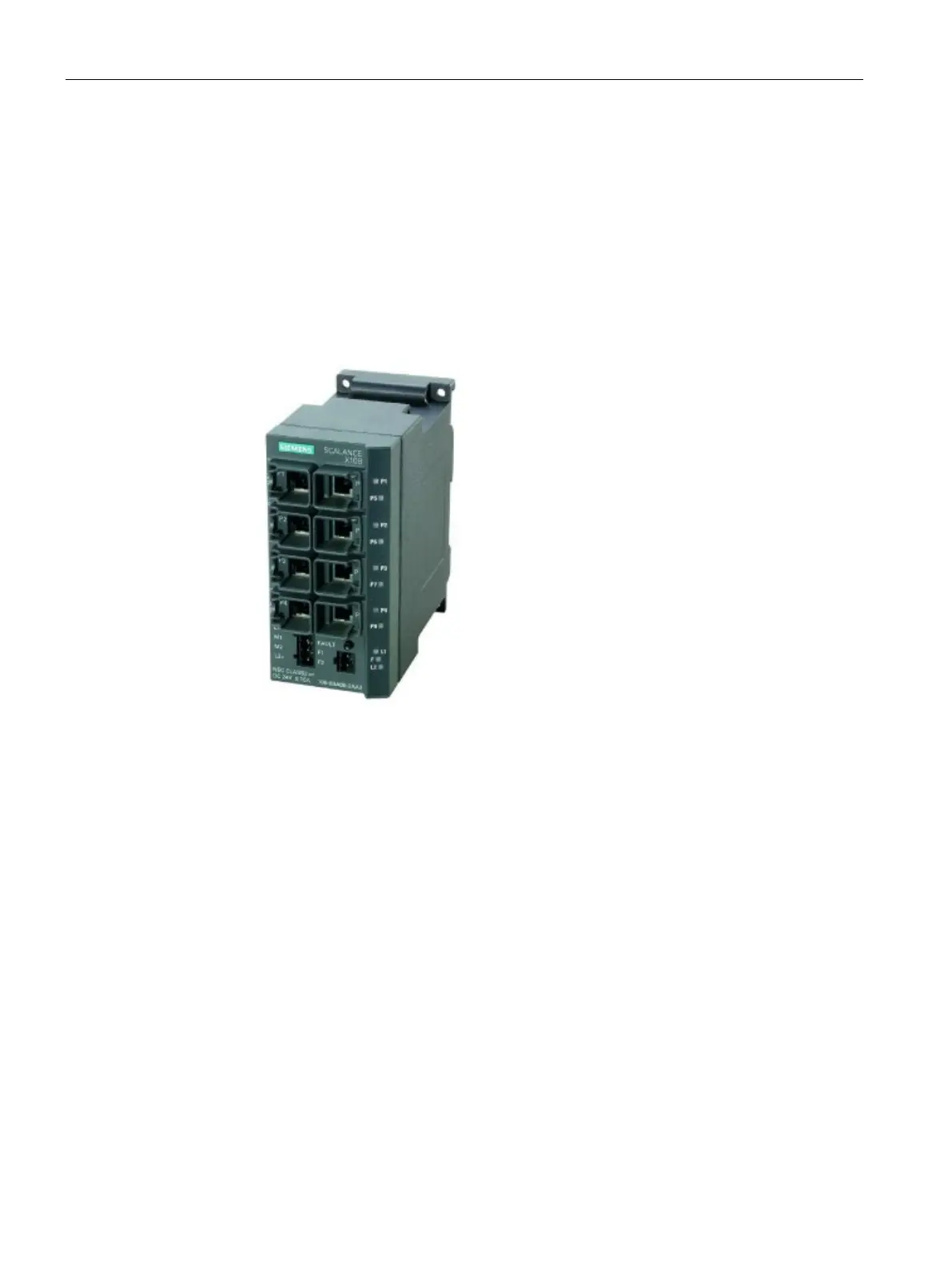

Figure 3-3 SCALANCE X108
