Assembly
4.3 Installation on a DIN rail
SCALANCE X-100
30 Operating Instructions, 12/2016, A2B00060666-08
4. Fit the connectors for the signaling contacts. See also section "Signaling contacts
(Page 38)".
5. Insert the terminal blocks into the sockets on the device.
Use of the SCALANCE X108PoE in shipbuilding
When used in shipbuilding, mounting the SCALANCE X108PoE on 35 mm DIN rails is
not permitted.
35 mm DIN rails do not ensure sufficient stability when used in shipbuilding.

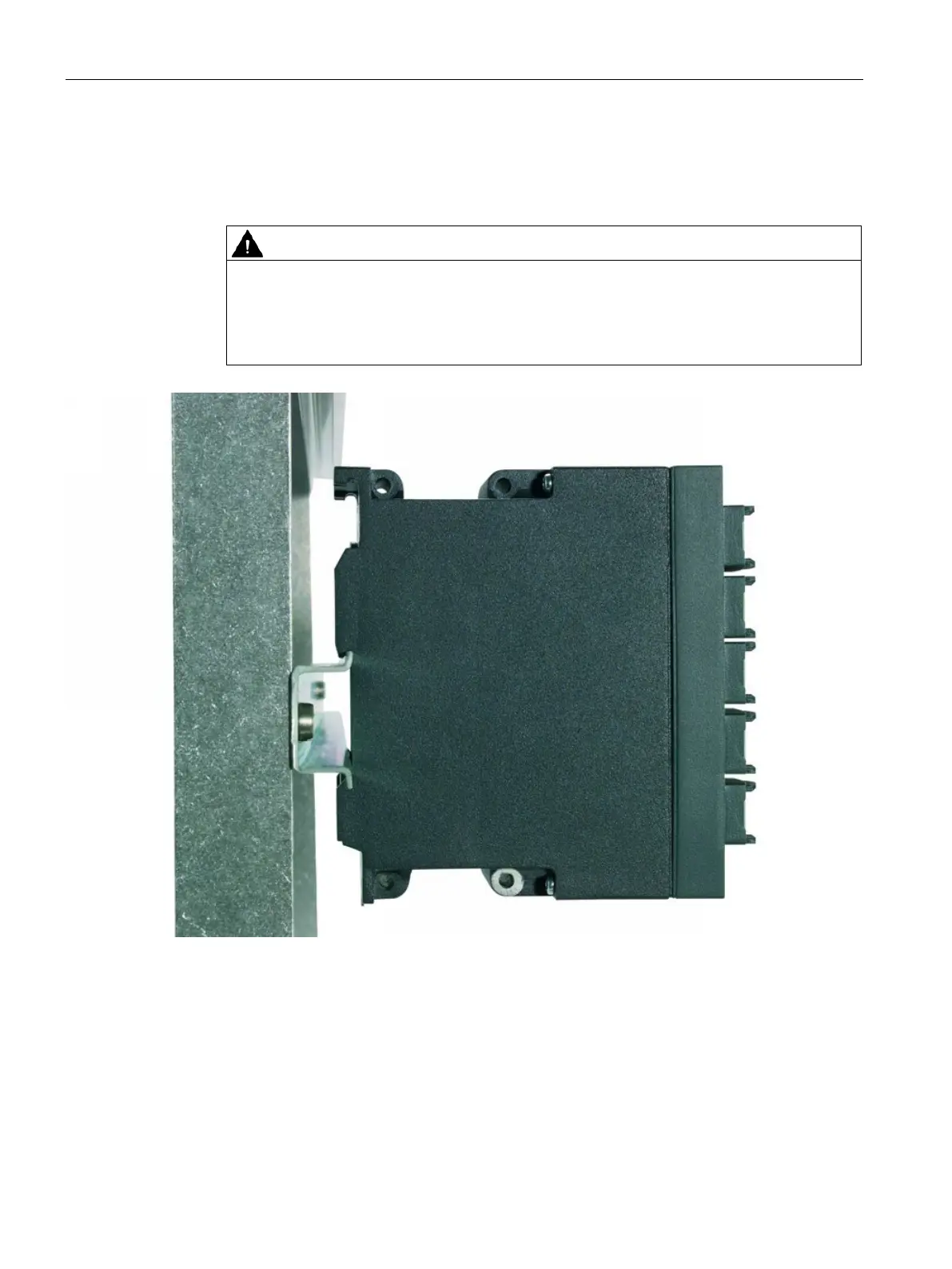

Figure 4-1 Installation on a 35 mm DIN rail
To remove the device from the DIN rail, follow the steps below:
1. Disconnect all connected cables.
2. Release the DIN rail catch on the bottom of the device using a screwdriver.
3. Pull the lower part of the device away from the DIN rail.
