Connecting up
5.5 IE FC RJ-45 Plug 180
SCALANCE X-100
40 Operating Instructions, 12/2016, A2B00060666-08
Plugging in the IE FC RJ45 Plug 180
Plug the IE FC RJ45 Plug 180 into the twisted-pair port of the device until it locks in place.

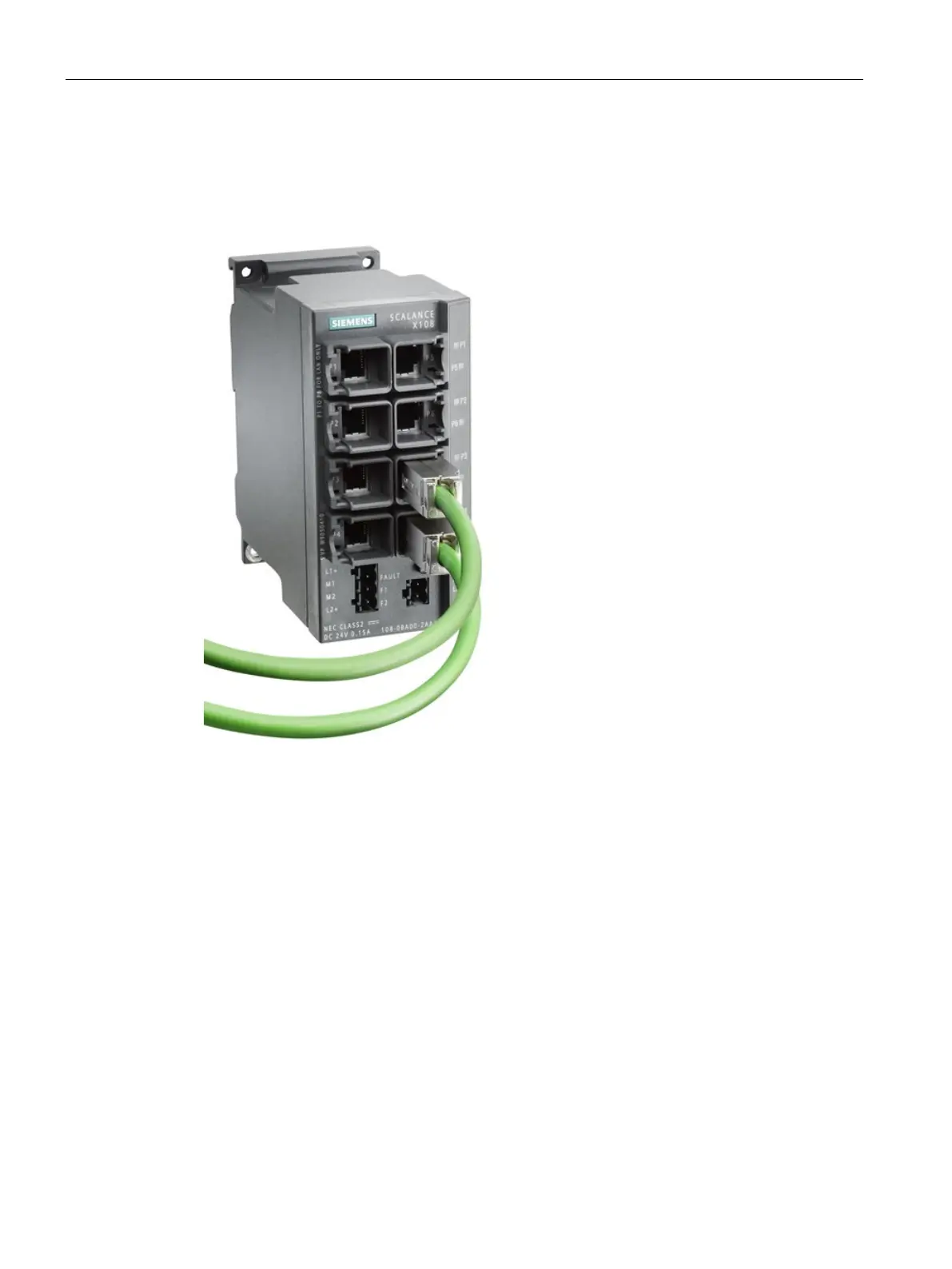

Figure 5-2 Plugging in the IE FC RJ45 Plug 180
With its tight fit and locking mechanism with the PROFINET-compliant male connector
IE FC RJ45 Plug 180, the securing collar on the TP port of the device ensures a rugged
node attachment that provides strain and bending relief for the RJ-45 jack.
Pulling the IE FC RJ45 Plug 180
Press on the locking lever of the IE FC RJ45 Plug 180 gently to remove the plug.
If there is not enough space to release the lock with your hand, you can also use a 2.5 mm
screwdriver. You can then remove the IE FC RJ45 Plug 180 from the RJ-45 jack.
