Description of the device
4.4 C-PLUG (configuration plug)
SCALANCE X-300
Operating Instructions, 05/2016, A5E01113043-20
97

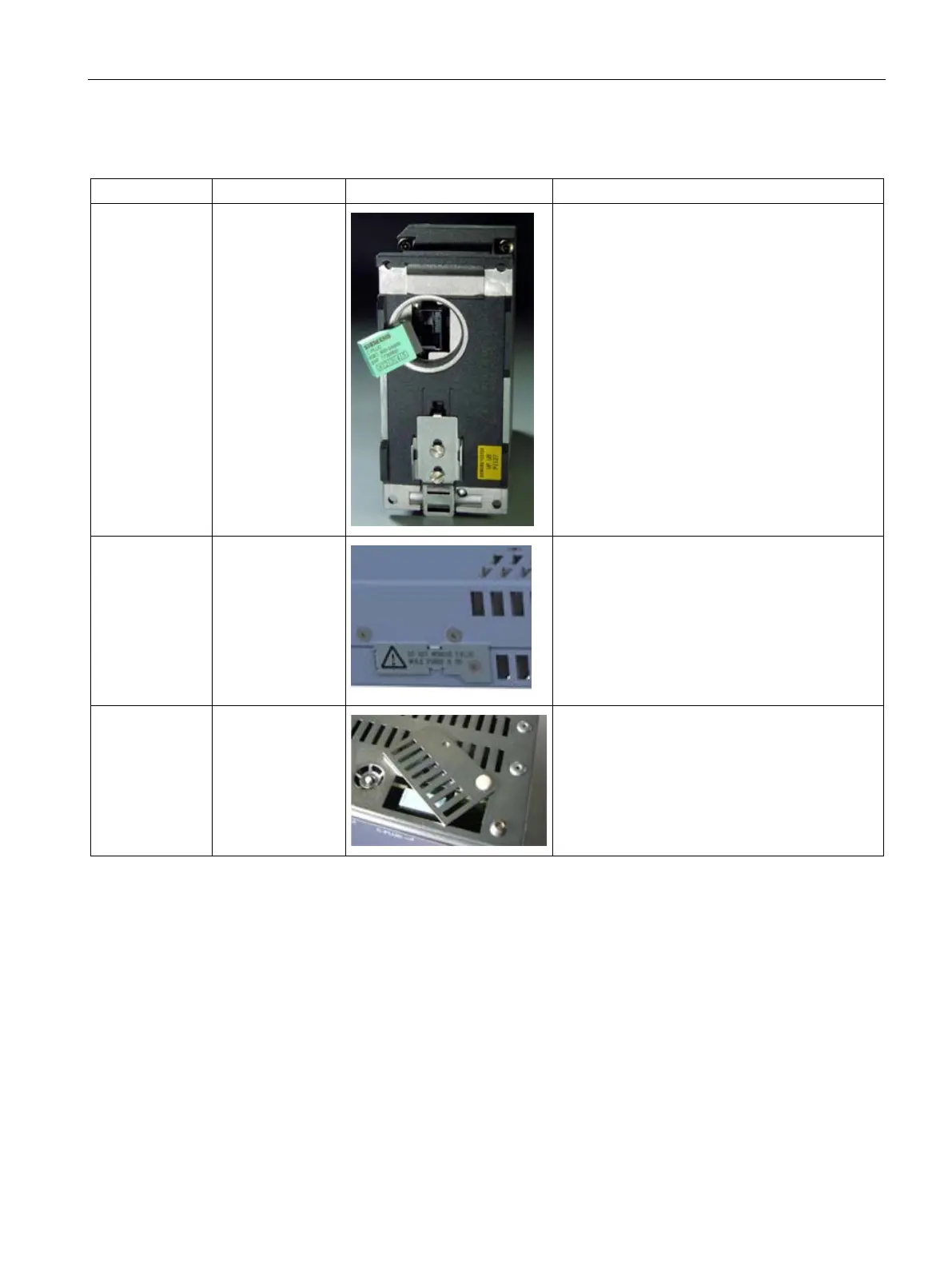

Inserting in the C-PLUG slot on the IE Switch X-300
Rear of the device
1. Remove the screw cover.
2. Insert the C-PLUG in the intended slot.
3. Close the screw cover again correctly.
Rear of the device
- right
1. Remove the cover.
2. Insert the C-PLUG in the intended slot.
3. Close the cover again correctly.
Top of the housing
1. Open the slider.
2. Insert the C-PLUG.
3. Close the slider.
