4.4 C-PLUG (configuration plug)
SCALANCE X-300
98 Operating Instructions, 05/2016, A5E01113043-20

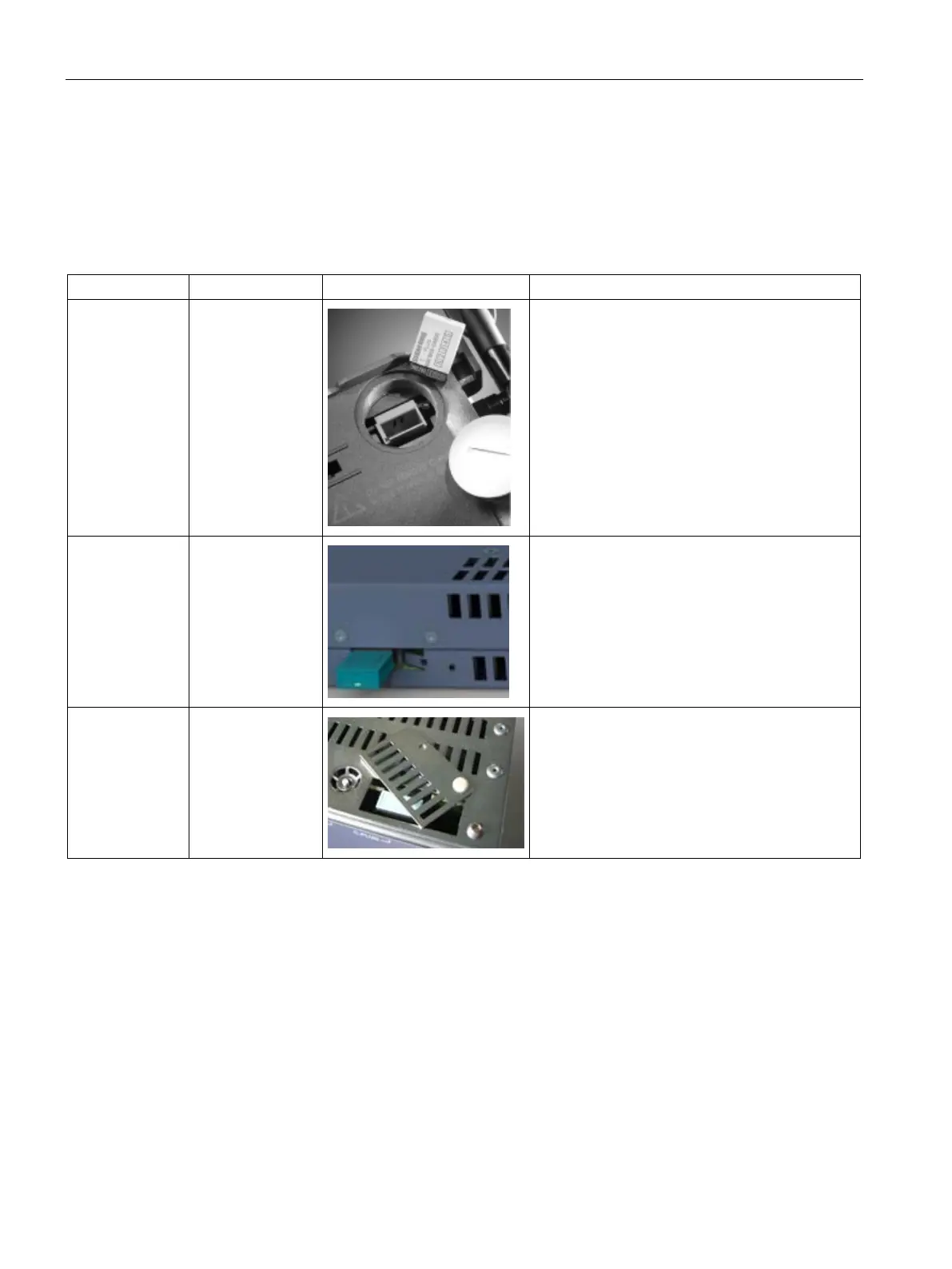

Removing the C-PLUG from the IE Switch X-300
It is only necessary to remove the C-PLUG if the IE Switch develops a fault.
The C-PLUG can be removed from the slot using flat pliers, tweezers, or a small screwdriver.
Rear of the device
1. Remove the screw cover.
2. Remove the C-PLUG.
3. Close the screw cover again correctly.
Rear of the device
- right
1. Remove the cover.
2. Remove the C-PLUG.
3. Close the cover again correctly.
Top of the housing
1. Open the slider.
2. Remove the C-PLUG.
3. Close the slider.
