Installation
12

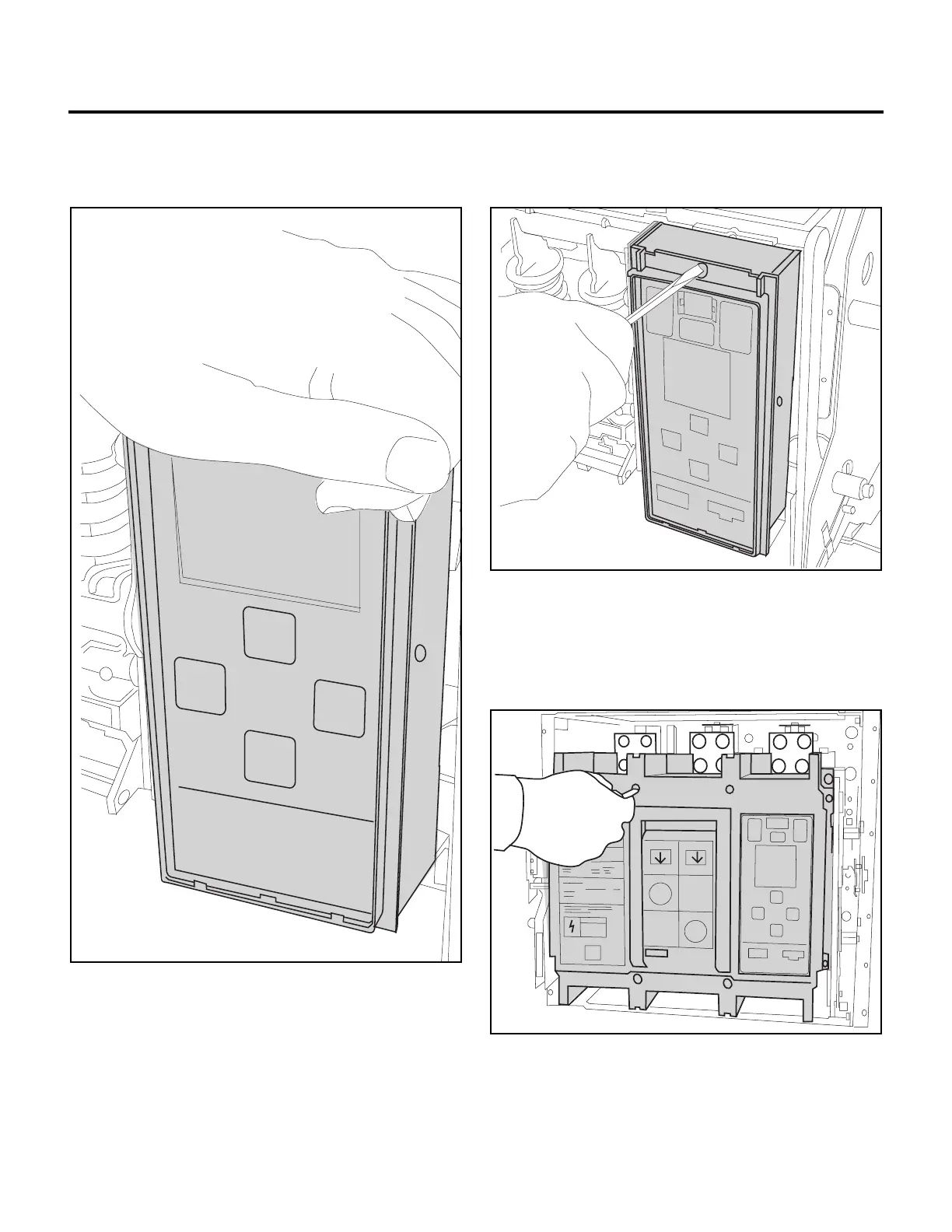

7. Lower the trip unit onto the support plate.
After the connector has been mated, lower (push) the trip unit
onto the support plate. The pins on the support plate will fit into
the holes in the bottom of the trip unit.
8. Secure the trip unit.
Secure the trip unit in place with the retaining screw located at
the top of the device. Torque 6 to 8 in-lbs. If the trip unit top is
not secured correctly the interlock will stop the breaker from
closing.
9. Replace the front cover.
Replace the front cover and the eight (8) front cover screws.
Torque 6 to 8 in-lbs.
