Alarm Setpoints
33

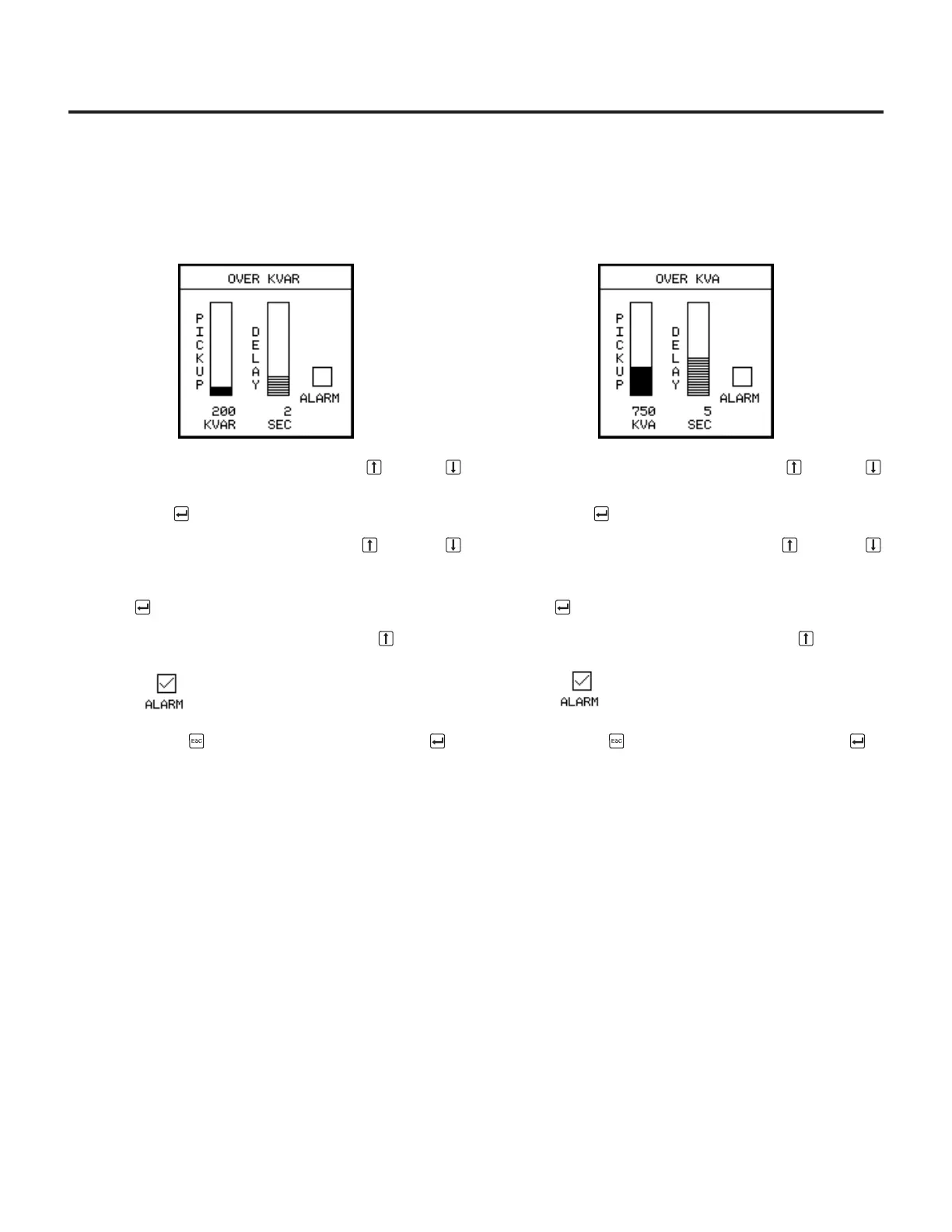

6.8 Over Reactive Power
To alarm on over reactive power (kilovolt-amps reactive):
1. From the Alarms Menu , select Over kVAR.
2. Select a pickup value by pressing the Up or Down
Arrow keys until the value is at the desired level. You can
choose between ten values, based on the frame rating.
Press Enter .
3. Select a delay time by pressing the Up or Down
Arrow keys until the value is at the desired level. Possible
time delay settings are 1, 2, 3, 5, 10, 20, 30, 60, 120, and
300 seconds. When the desired value displays, press
Enter .
4. Highlight the ALARM box and press the Up Arrow key
so that a checkmark appears in the box.
5. Press Escape to leave the menu and press Enter at
the verification screen to accept the new settings and
leave the menu.
6.9 Over Apparent Power
To alarm on over apparent power (kilovolt-amps):
1. From the Alarms Menu , select Over kVA
2. Select a pickup value by pressing the Up or Down
Arrow keys until the value is at the desired level. You can
choose between ten values, based on the frame rating.
Press Enter .
3. Select a delay time by pressing the Up or Down
Arrow keys until the value is at the desired level. Possible
time delay settings are 1, 2, 3, 5, 10, 20, 30, 60, 120, and
300 seconds. When the desired value displays, press
Enter .
4. Highlight the ALARM box and press the Up Arrow key
so that a checkmark appears in the box.
5. Press Escape to leave the menu and press Enter at
the verification screen to accept the new settings and
leave the menu.
