Alarm Setpoints
34

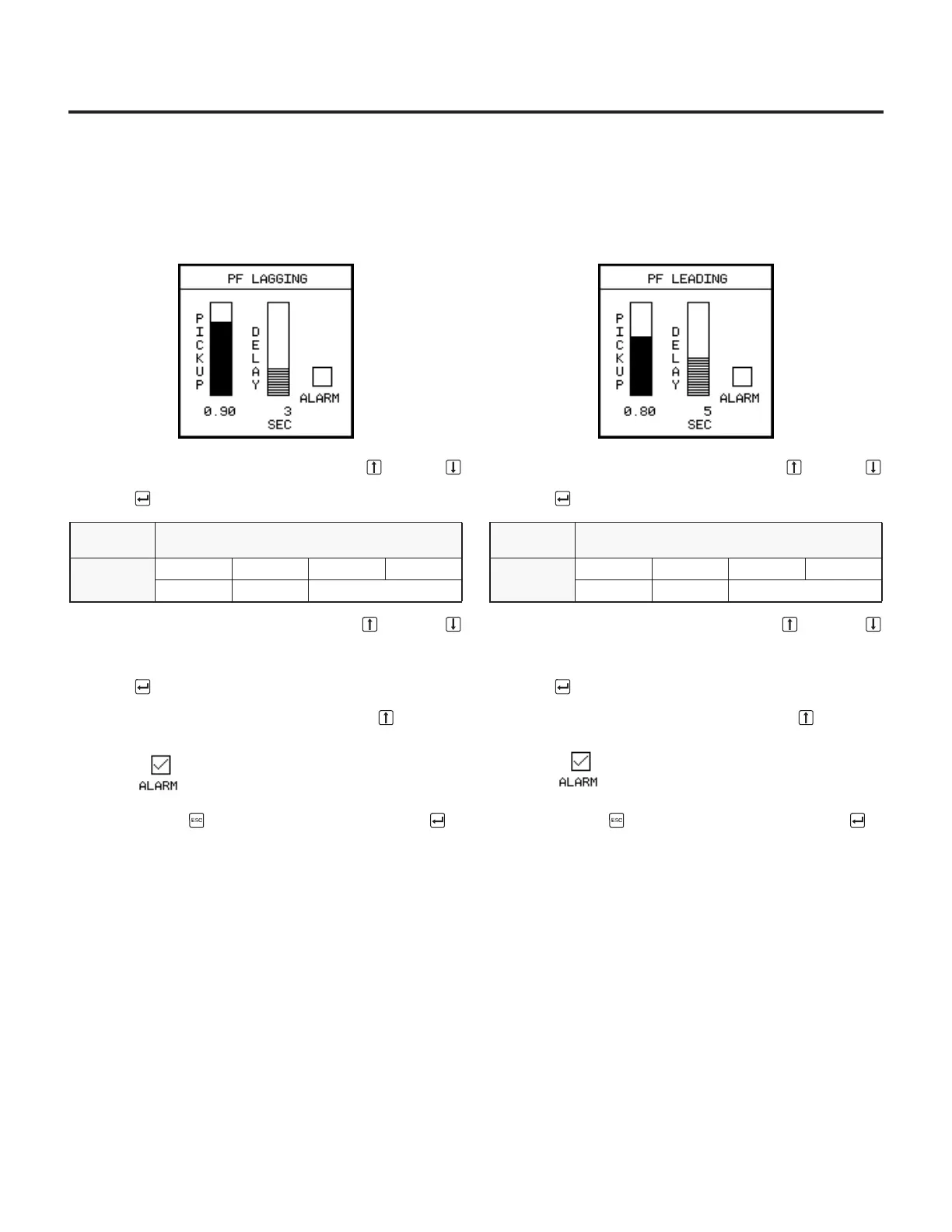

6.10 Under PF Lagging
To alarm on under power factor lagging:
1. From the Alarms Menu , select Under PF Lagging.
2. Select a pickup value by pressing the Up or Down
Arrow keys until the value is at the desired level. Press
Enter . Values appear in the following table.
3. Select a delay time by pressing the Up or Down
Arrow keys until the value is at the desired level. Possible
time delay settings are 1, 2, 3, 5, 10, 20, 30, 60, 120, and
300 seconds. When the desired value displays, press
Enter .
4. Highlight the ALARM box and press the Up Arrow key
so that a checkmark appears in the box.
5. Press Escape to leave the menu and press Enter at
the verification screen to accept the new settings and
leave the menu.
6.11 Over PF Leading
To alarm on over power factor leading:
1. From the Alarms Menu , select Over PF Leading
2. Select a pickup value by pressing the Up or Down
Arrow keys until the value is at the desired level. Press
Enter . Values appear in the following table.
3. Select a delay time by pressing the Up or Down
Arrow keys until the value is at the desired level. Possible
time delay settings are 1, 2, 3, 5, 10, 20, 30, 60, 120, and
300 seconds. When the desired value displays, press
Enter .
4. Highlight the ALARM box and press the Up Arrow key
so that a checkmark appears in the box.
5. Press Escape to leave the menu and press Enter at
the verification screen to accept the new settings and
leave the menu.
Under Power Factor (Lagging)
Alarm Settings
Pickup
Values
0.50 0.60 0.70 0.80
0.90 0.95
Over Power Factor (Leading)
Alarm Settings
Pickup
Values
0.50 0.60 0.70 0.80
0.90 0.95
