Installation
14

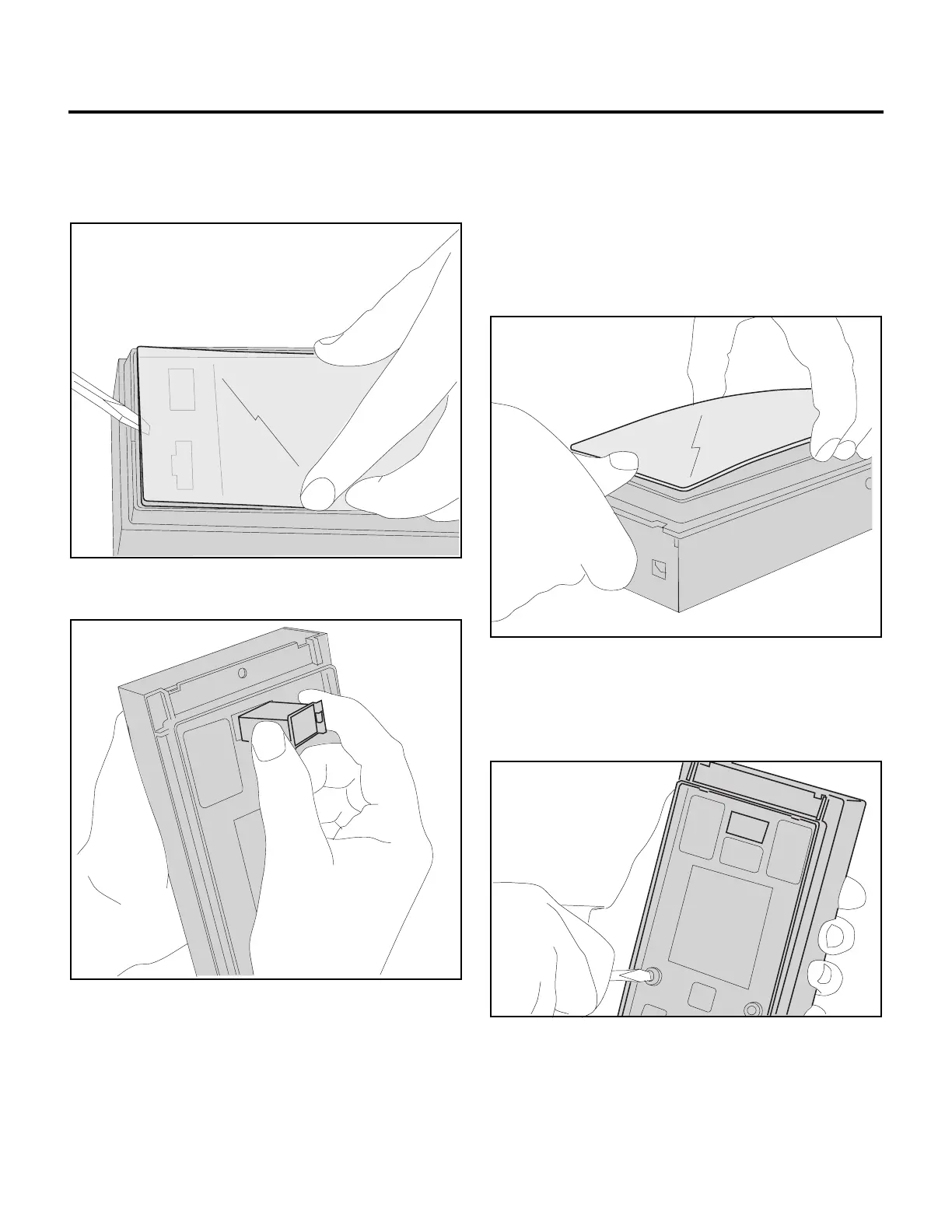

3. Gently pry one end of the cover loose with a small screw-
driver, and lift. Then remove the plexiglass shield.
4. Press the plug into place (or remove).
Note: To
insert
a rating plug in the trip unit, align the plug
with the plug receptacle and press the plug into
place. The clips on the rating plug and the com-
pression fitting of the plug hold the plug in place,
eliminating the need for screws or latches—it will
snap into place without excessive force. Do not
force the rating plug into place.
Conversely, to
remove
a rating plug, squeeze the clips,
located on the sides of the plug, and pull the plug from
the plug receptacle. Since the plug is held in place by
compression, some force will be required to remove the
plug. Do
not
close the circuit breaker with the rating plug
removed from the trip unit.
5. Replace the plexiglass shield.
Slide the protective shield into the top of the trip unit, bow it
slightly in middle, and press down with your thumb on bottom
to snap the shield into place.
6. Replace the two (2) retaining screws.
