Interface module IM 155-5 MF HF (6ES7155-5MU00-0CN0)
Equipment Manual, 11/2023, A5E53268530-AA
67
Dimension drawing
The dimension drawing of the module on the mounting rail, as well as a dimension drawing
with open front panel, are provided in the appendix. Always observe the specified
dimensions for installation in cabinets, control rooms, etc.
Dimension drawings of the IM 155-5 MF HF interface module

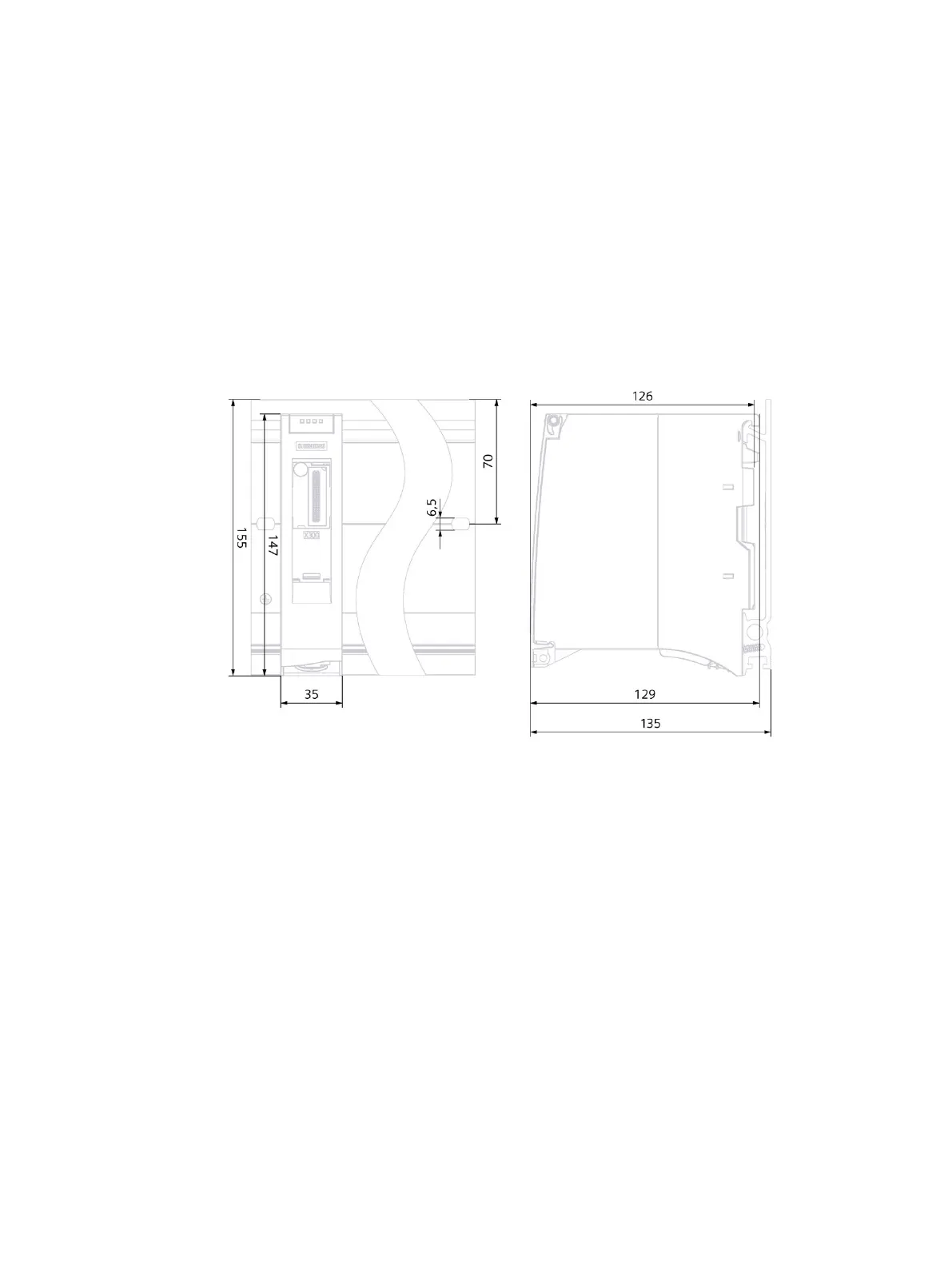

Figure A-1 Dimension drawing of the IM 155-5 MF HF interface module, front and side views
