Strain relief
7.2 Installing
Interface module IM 155-5 MF HF (6ES7155-5MU00-0CN0)
Equipment Manual, 11/2023, A5E53268530-AA
61
7.2 Installing
Requirement
• The Industrial Ethernet/PROFINET cables are not inserted on the BusAdapter. The inserted
Industrial Ethernet/PROFINET cables hamper the mounting of the strain relief.
• Mount the strain relief before connecting the BusAdapter.
Tools required
Screwdriver TX10 (torx).
Procedure
To install the strain relief, follow these steps:
1. Hang the strain relief on the 4 suspension points in the front cover on the PROFINET device.

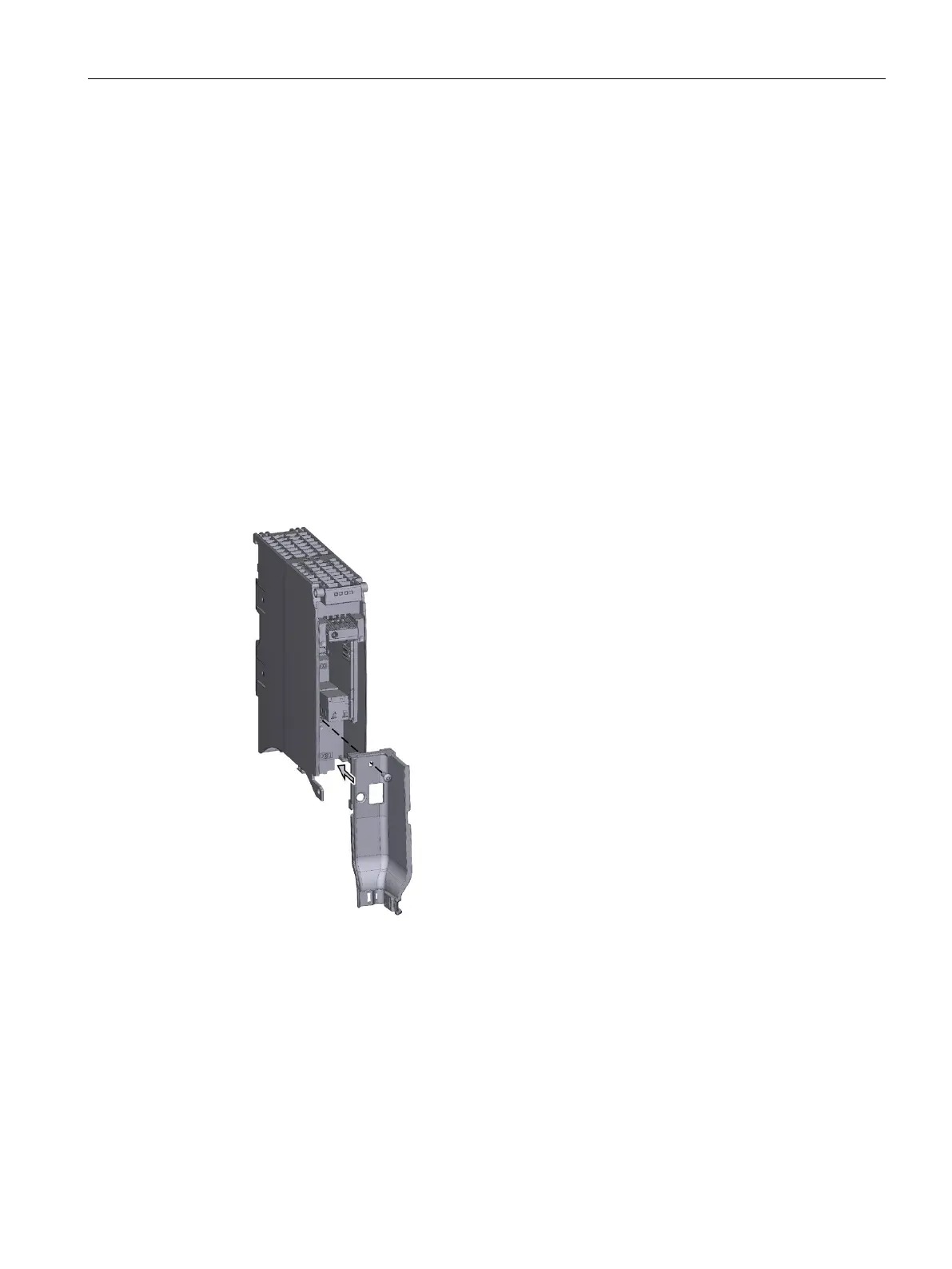

Figure 7-2 Strain relief before mounting
2. Fasten the strain relief (1 screw with 0.7 to 0.8 Nm tightening torque).
3. Plug the BusAdapter into the PROFINET device.
