Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF Series User Manual

Parameters/address space
4.3 Explanation of parameters
Analog input module F-AI 4xI 0(4)..20mA 2-/4-wire HF (6ES7136-6AA00-0CA1)
Manual, 08/2018, A5E41448857-AB
31
"Tolerance window %, relative" parameter
The tolerance window is calculated as a percentage of the
smoothed
process value that
represents the MIN or MAX value (depending on the parameter assignment of the standard
value) in this instant.

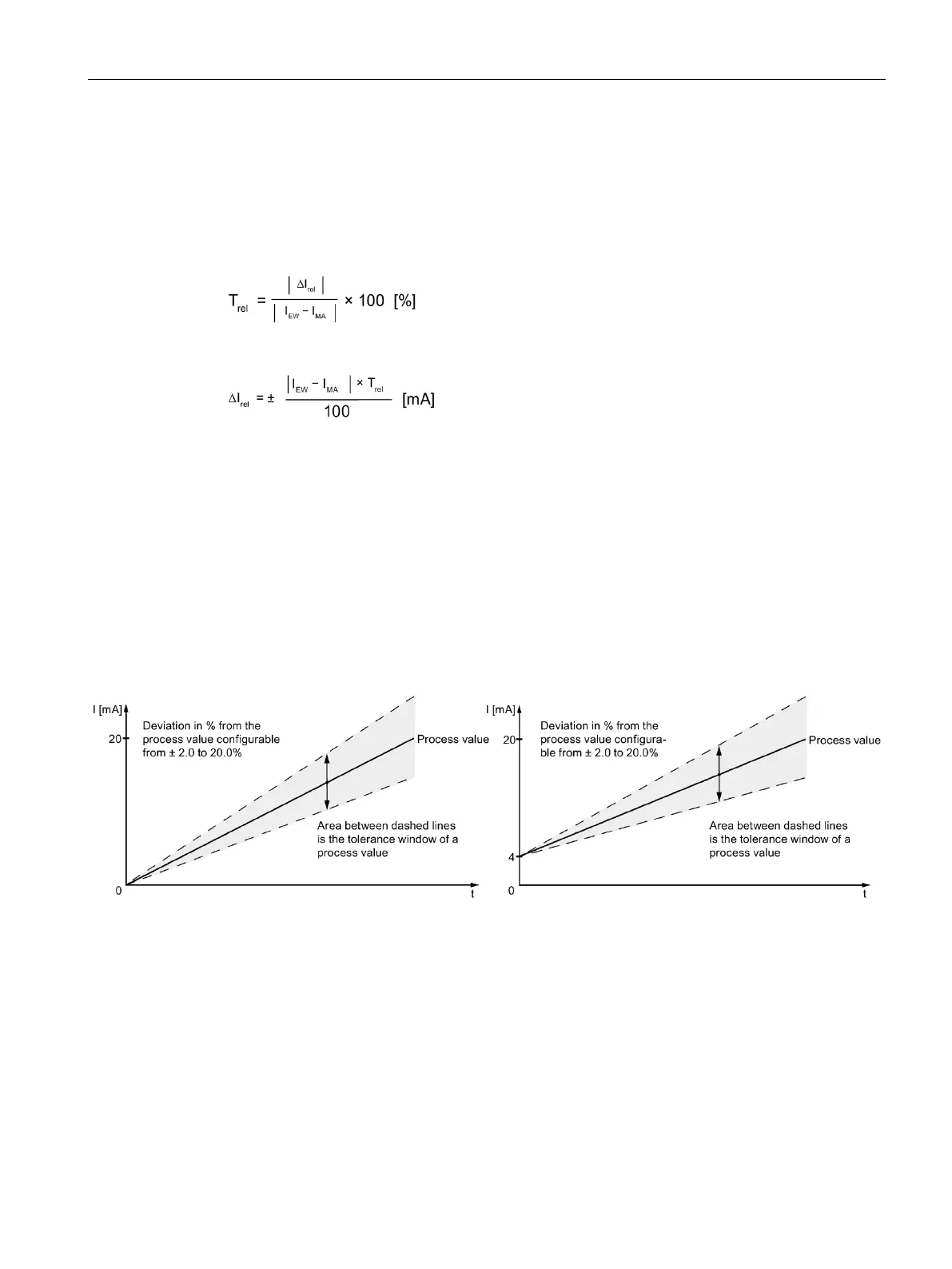

You can calculate the relative tolerance window using the following formula:
Calculate the maximum deviation of the current using the following formula:
With
● I
EW
= Process standard value (min./max.)
● I
MA
= 0 mA for measuring range 0 ... 20 mA
● I
MA
= 4 mA for measuring range 4 ... 20 mA
● T
rel
= Tolerance in %
● ΔI
rel
= Maximum deviation of current (+/-)
You can assign a value of 2.0 to 20.0% for the "Tolerance window %, relative" parameter for
each channel pair.
Figure 4-4 Relative deviation in % of the nominal range for measuring range 0 to 20 mA or 4 to 20 mA

Siemens SIMATIC ET 200SP F-AI 4xI 0(4) 20mA 2-/4-wire HF Series Specifications

General

Input channels	4
Wiring type	2-/4-wire
Series	SIMATIC ET 200SP
Supply voltage	24 V DC
Rated value (DC)	24 V
Power loss, typ.	1.5 W
Interference voltage suppression for interference frequency f1 in Hz	50/60 Hz
Diagnostics function	Yes
Galvanic isolation	Yes
Potential separation channels	Yes
Potential separation between the channels and backplane bus	Yes
Module type	AI
Safety integrity level	SIL 3
Connection method	Push-in terminals
Operating voltage	24 V DC
Weight	200 g
Input current range	0(4)..20 mA
Product type designation	F-AI 4xI 0(4)..20mA 2-/4-wire HF
Analog value generation for the inputs	16 bits
Resolution	16 bit
Integration time/resolution per channel	Configurable
