Siemens Simatic ET200pro - Dimension Diagram; CPU 1516 pro-2 PN Mounting Dimensions

CPU 1516pro-2 PN (6ES7516-2PN00-0AB0)
Operating Instructions, 09/2016, A5E35873416-AA
129
Dimension diagram
A
CPU 1516pro-2 PN with connection module CM CPU 2PN M12, 7/8"
This section contains dimension drawings of the module mounted on various module racks.
You must observe the dimensions when mounting in cabinets, control rooms, etc.

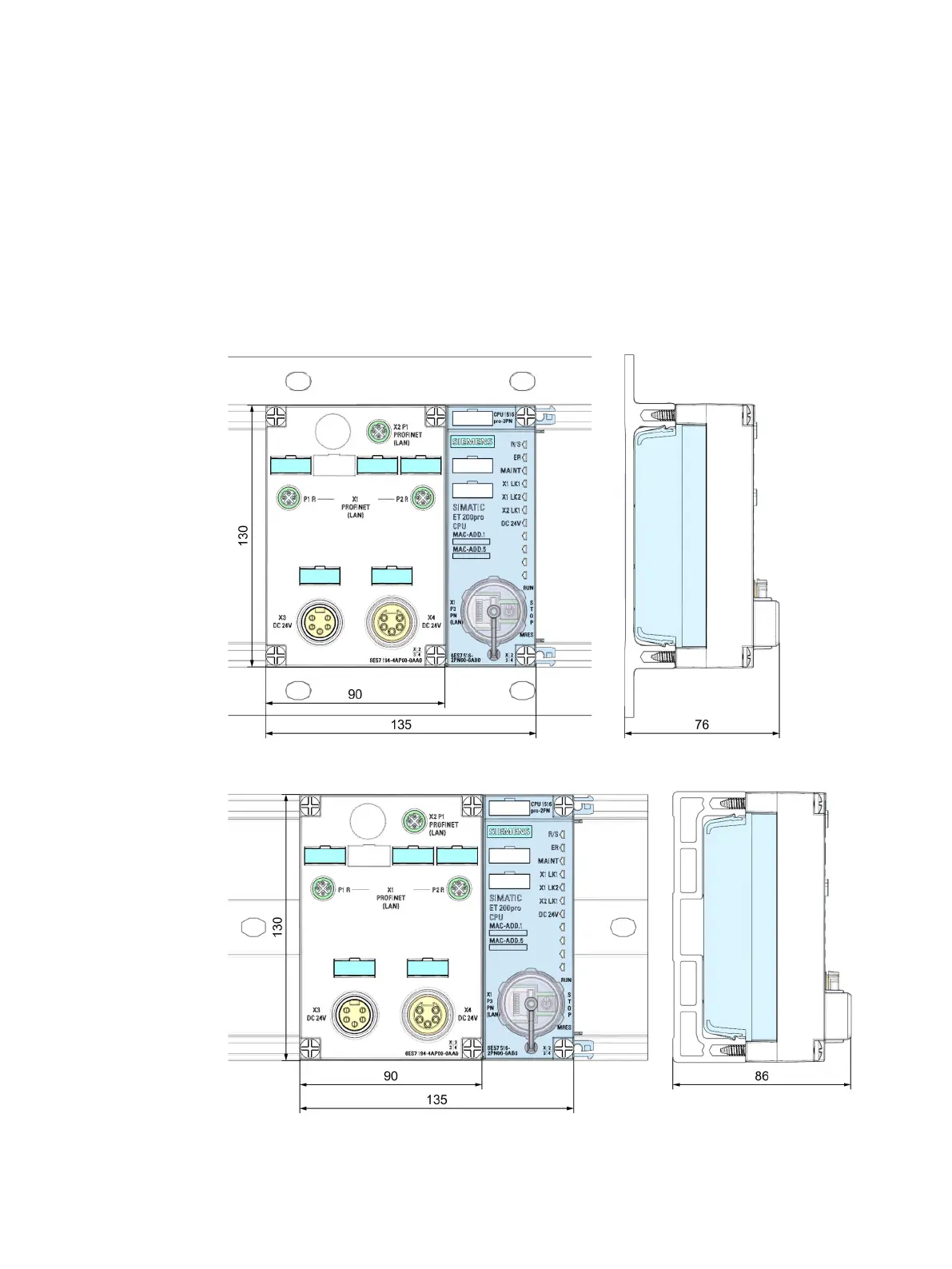

Figure A-1 Dimension diagram - Rack, narrow
Figure A-2 Dimension diagram - Rack, compact
