Siemens Simatic ET200pro

Mounting and connecting
3.3 Connecting the connection module CM CPU 2PN M12 7/8"
CPU 1516pro-2 PN (6ES7516-2PN00-0AB0)
Operating Instructions, 09/2016, A5E35873416-AA
27
3.3
Connecting the connection module CM CPU 2PN M12 7/8"
Introduction
Connect the supply voltages and PROFINET to the connection module
CM CPU 2PN M12, 7/8". The 1st PROFINET interface (x1) is equipped with an internal
PROFINET switch. This enables the direct loop-through of PROFINET or the direct
connection of another IO device (e.g. ET 200pro with IM 154-4 PN). Use X1 Port 1 and X1
Port 2 for configuring ring topologies. The 2nd PROFINET interface (X2) has only one port.

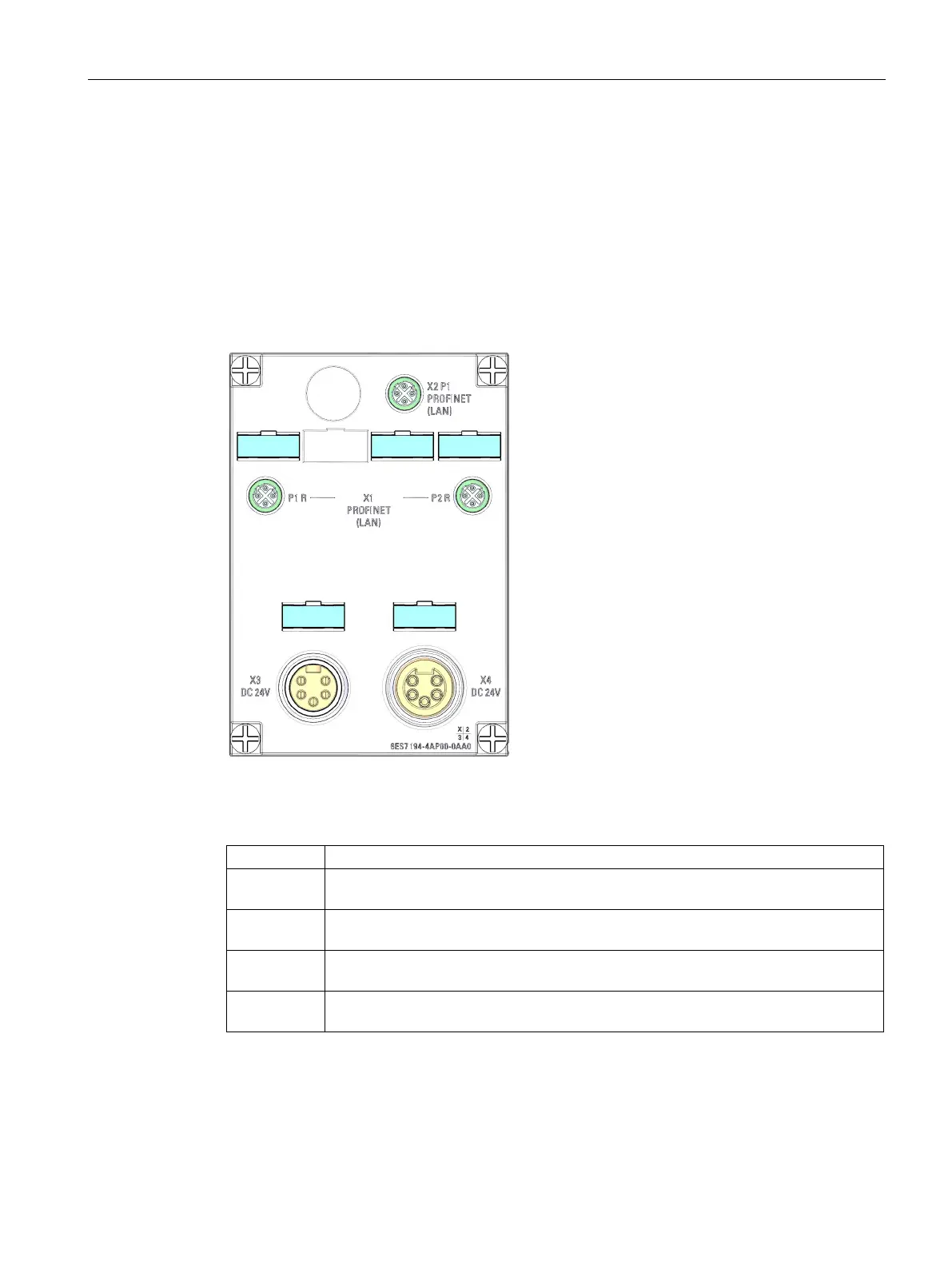

Figure 3-1 View of the connection module CM CPU 2PN M12, 7/8"
X2 P1
M12 circular socket (with female contact insert) for connection of PROFINET
X1 P1 R M12 circular socket connector (with socket insert) for connection of PROFINET
R: Ring port for configuring a ring topology with media redundancy
X1 P2 R M12 circular socket connector (with socket insert) for connection of PROFINET
R: Ring port for configuring a ring topology with media redundancy
X3 DC 24V 7/8" circular socket (with male contact insert) for connecting the electronic / encoder
supply 1L+ and load voltage supply 2L+
X4 DC 24V 7/8" circular socket (with socket insert) for looping through the electronic / encoder
supply 1L+ and load voltage supply 2L+
