Commissioning
7.2 Procedure for commissioning the ET 200pro distributed I/O system with CPU
CPU 1516pro-2 PN (6ES7516-2PN00-0AB0)
Operating Instructions, 09/2016, A5E35873416-AA
71
CPU as I-device
Configuration example
The following configuration example shows the use of the ET 200pro distributed I/O system
with the CPU 1516pro-2 PN as an I-device.

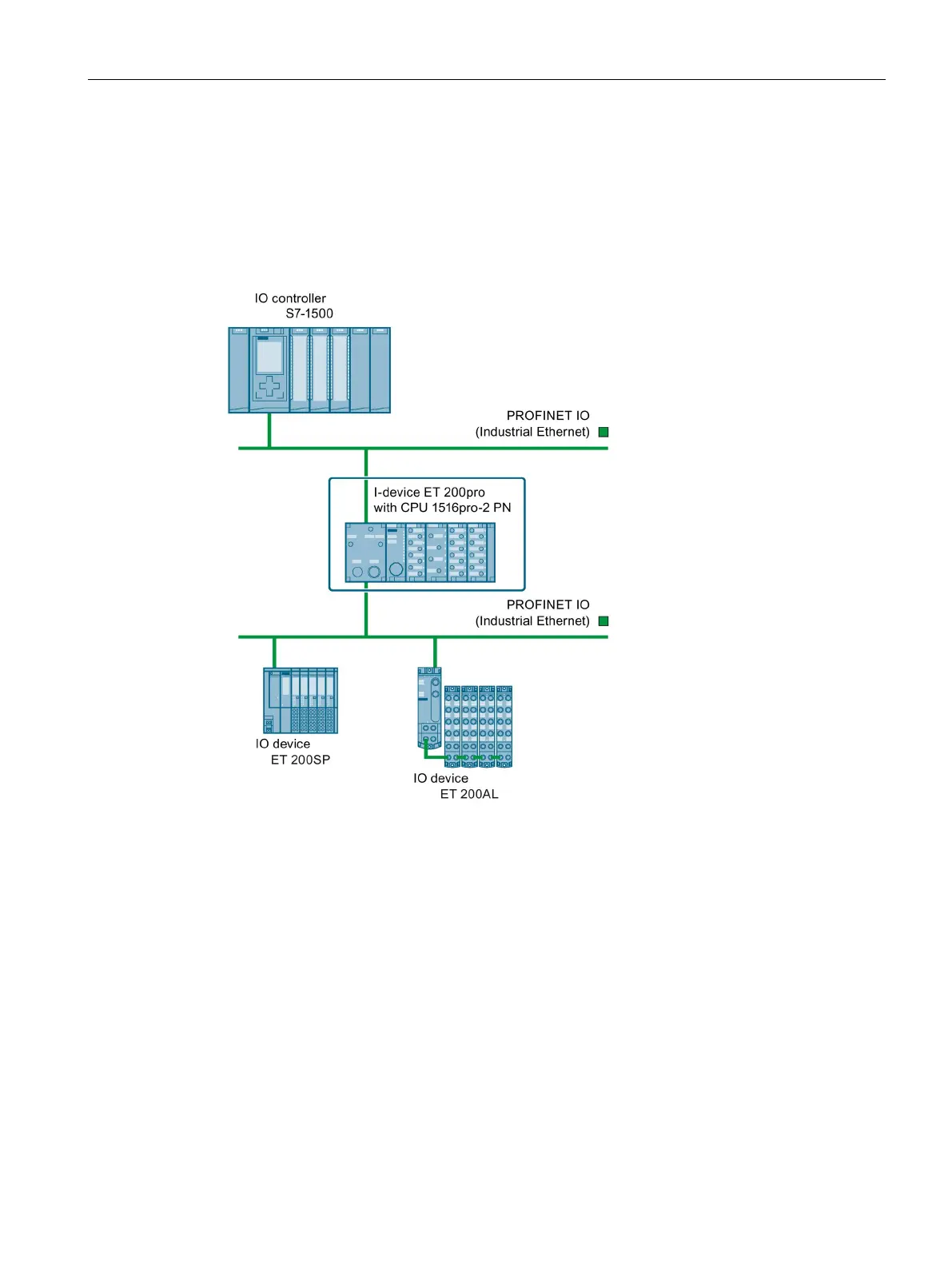

Figure 7-2 CPU 1516pro-2 PN as I-device
