4.2 Configuring the CPU
CPU 1516pro-2 PN (6ES7516-2PN00-0AB0)
40 Operating Instructions, 09/2016, A5E35873416-AA
Address space using the digital electronic module 16 DI DC 24 V as an example

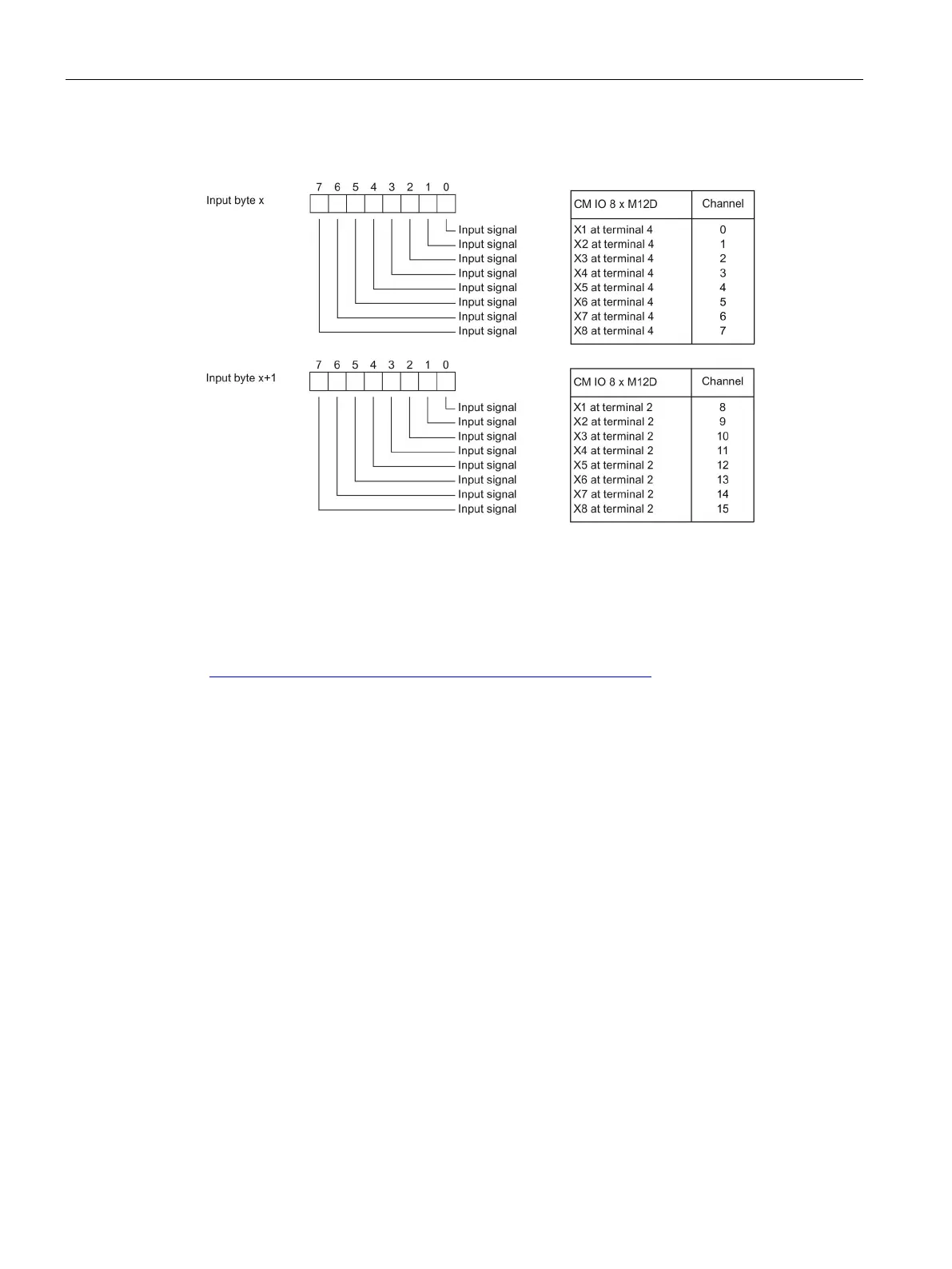

Figure 4-5 Address space 16 DI DC 24 V
You can find additional information on addressing and address allocation in the operating
instructions of the ET 200pro distributed I/O system
(https://support.industry.siemens.com/cs/ww/en/view/21210852
) and in the STEP 7 online
help.
