Overview
1.2 Design of the Mobile Panels
Mobile Panels 2nd Generation
16 Operating Instructions, 09/2018, A5E33876626-AC

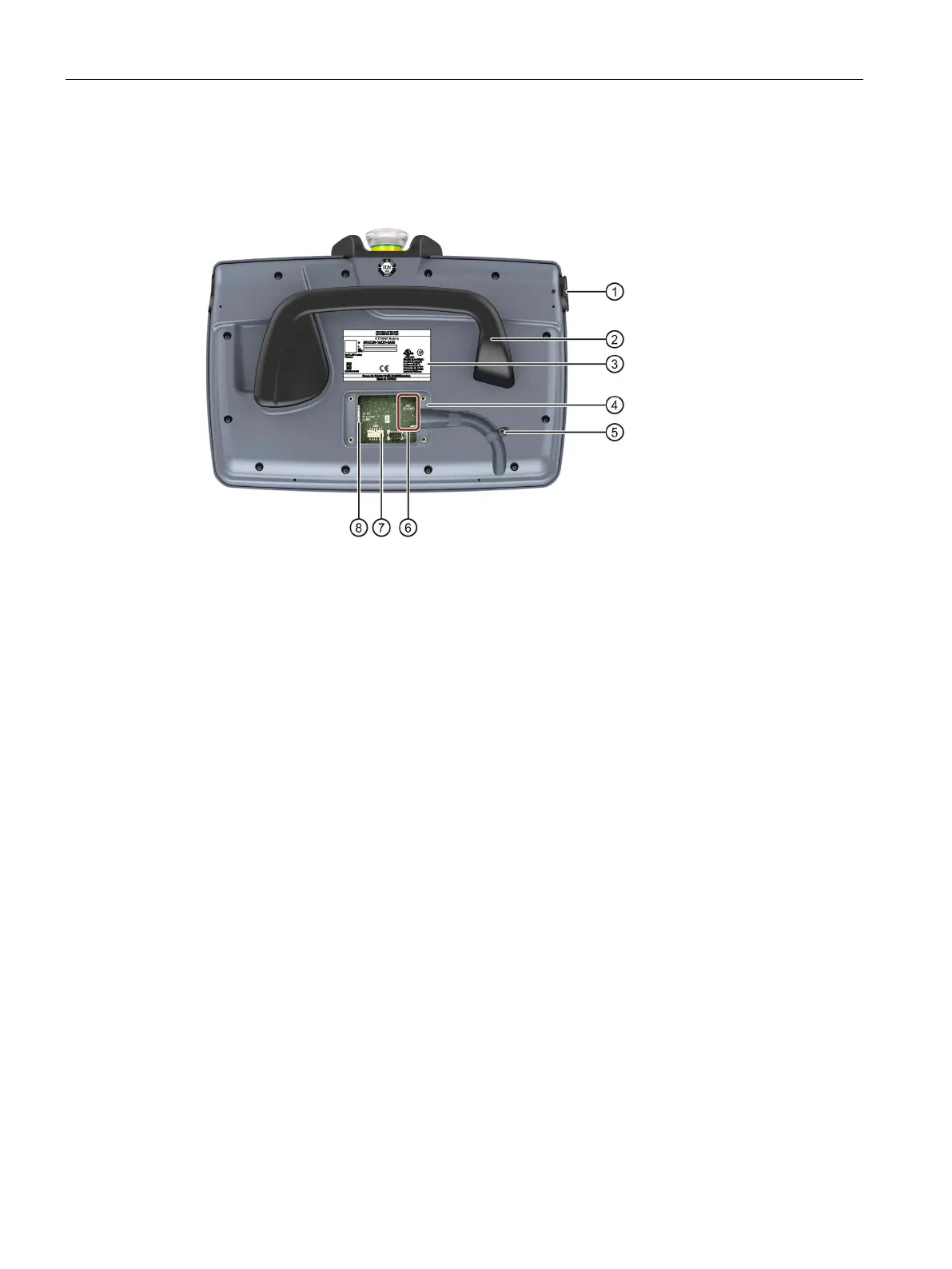

The figure below shows an example of the design of the fail-safe HMI device, KTP900F
Mobile. The other HMI devices of the type KTP Mobile are constructed similarly.
USB port with cover
Threaded sleeve for mounting screw of the cable retainer,
Slot for an SD memory card, not for KTP400F Mobile
12-pin connector for the connecting cable
RJ45 socket PROFINET (LAN)
