Siemens SIMATIC HMI KTP400F Mobile - Attaching the KTP Mobile Wall-Mounting Bracket; Assembling the KTP Mobile Wall-Mounting Bracket

Installing system components
3.4 Attaching the KTP Mobile wall-mounting bracket
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
47
3.4
Attaching the KTP Mobile wall-mounting bracket
3.4.1
Assembling the KTP Mobile wall-mounting bracket
The scope of supply for the wall-mounting bracket includes the following components:
● Wall-mounting bracket
● Safety bar for the HMI device
● 2 screws for fastening the safety bar
● Holding bracket for the connecting cable
The wall-mounting bracket is suitable for all HMI devices of the KTP Mobile type.
Requirement
● 1 torque screwdriver with T10 insert
Procedure
1.

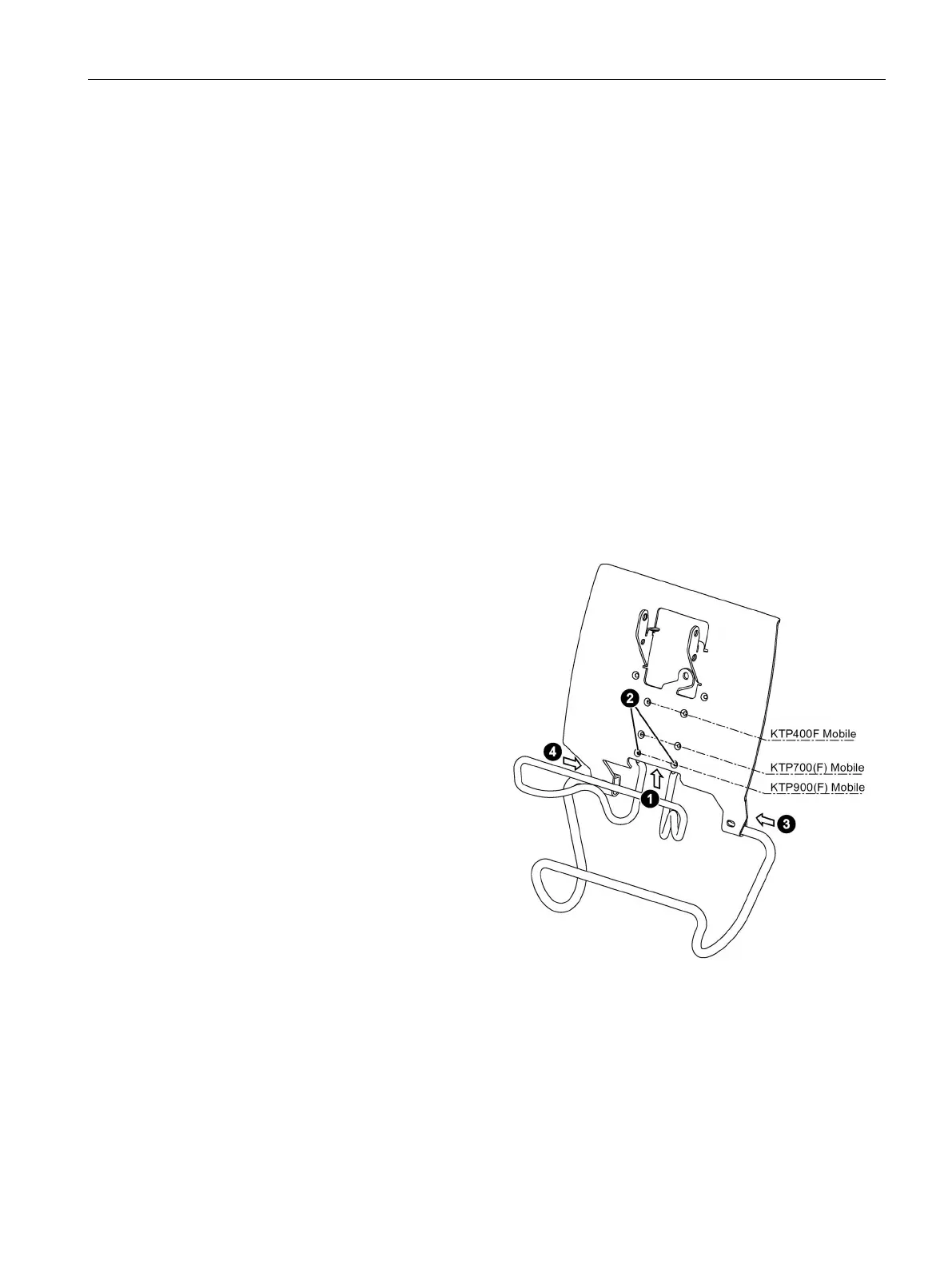

Position the safety bar as shown in
the figure. Note the type of your
HMI device in doing so. The figure,
for example, shows the position of
the safety bar for a
KTP900/KTP900F Mobile.
2.
Fasten the safety bar screws w
ith
the T10 screwdriver in the required
places. The permitted torque is
0.8 Nm.
3.
Slide the holding bracket for the
connecting cable from one side
into the mounting flange.
4.
Slide the holding bracket for the
connecting cable from the other
side int
o the mounting flange until
the holding bracket is aligned with
the center of the wall
-mounting
bracket.
If you fasten the wall-mounting bracket to the mounting surface as described in the following
section, the holding bracket is secured against lateral movement.
