Siemens SIMATIC HMI KTP400F Mobile - Replacing the Connecting Cable

Installing system components
3.5 Connecting the Mobile Panel
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
55
3.5.5
Replacing the connecting cable
Requirement
● The connecting cable is unplugged from the connection box.
● You have taken precautions to protect your device, see section "Connection information
(Page 51)".
● One torque screwdriver with cross-tip insert size 2
Procedure
Open
1. Place the HMI device on its front.

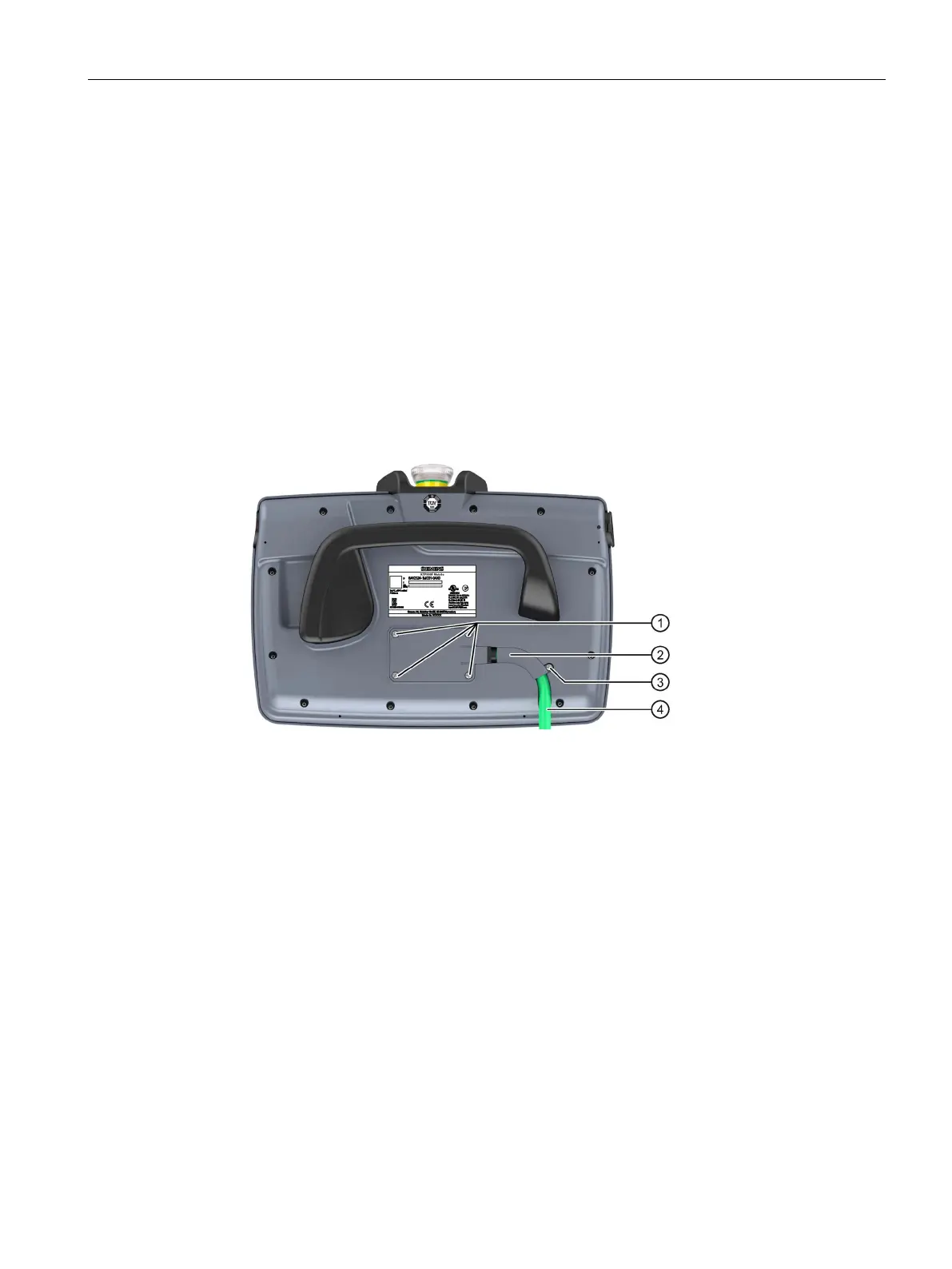

①
Screws for terminal compartment cover
②
Retainer, not for KTP400F Mobile
③
Screw for the retainer, not with KTP400F Mobile
④
Connecting cable
2. All Mobile Panels 2nd Generation with the exception of the KTP400F Mobile: Loosen the
screw
③.
3. Loosen the screws
① of the terminal compartment cover.
4. Lift the terminal compartment cover to expose the connecting cable.
