Installing system components
3.5 Connecting the Mobile Panel
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
53
Connecting the Mobile Panel connecting cable
The connecting cable is a system component and is required for the operation of the Mobile
Panel.
Use a cable labeled "Connecting cable KTP Mobile".
Note
If you use an SD memory card, you must inser
t the SD memory card before installing the
connecting cable. See section "
Inserting the SD memory card (Page 51)".
● You have taken precautions to protect your device, see section
"Connection information (Page 51)".
● One torque screwdriver with cross-tip insert size 2

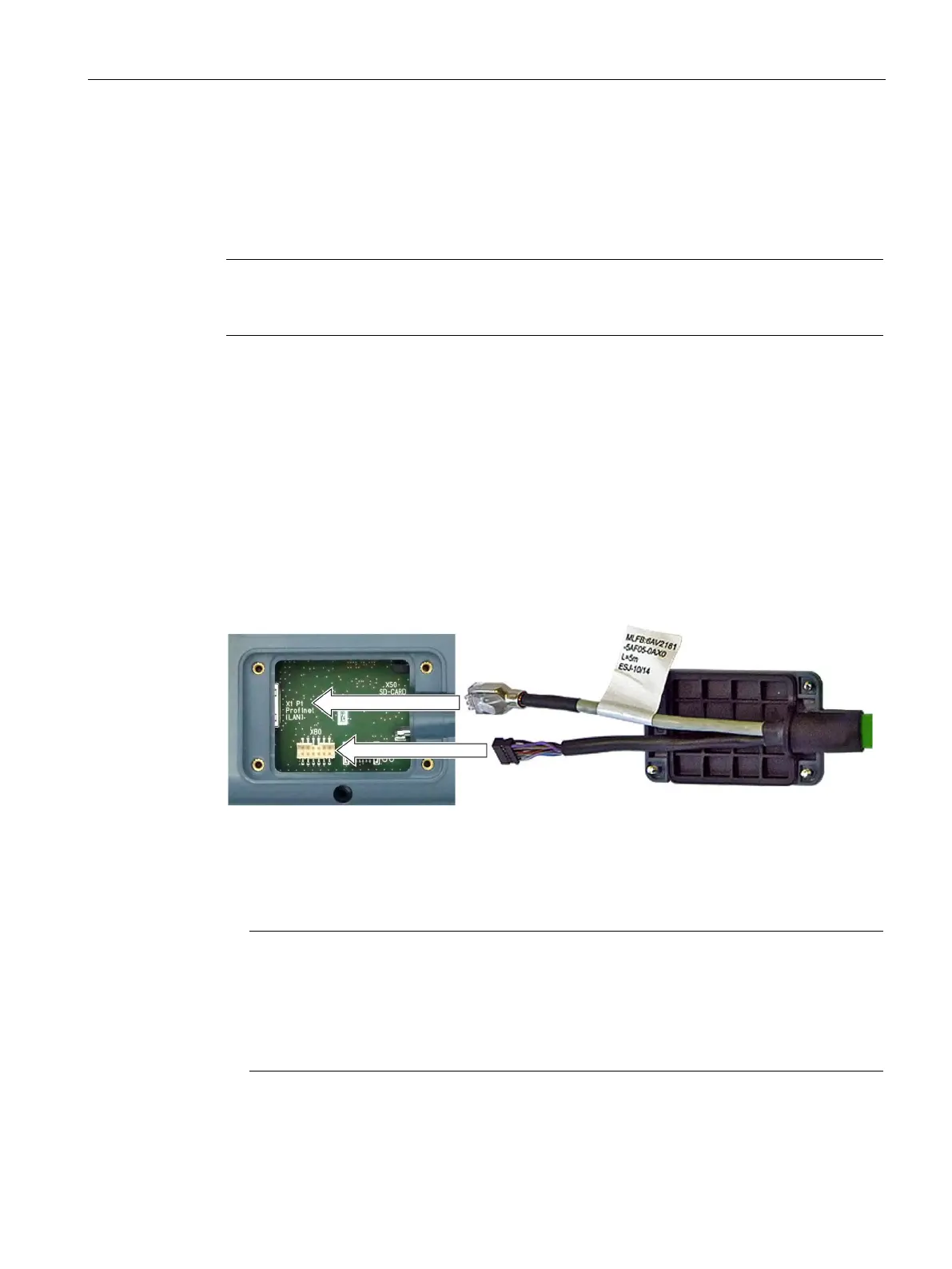

1. Plug the connector into port X80.
Note the mechanical coding on the connector.
2. Plug in the RJ45 connector at port X1.
Make sure that the connector audibly engages.
3. Place the terminal compartment cover over the terminal compartment. Tighten the
corresponding screws using a torque of 0.2 Nm.
When closing the terminal compartment cover, make sure that the corresponding seal
is undamaged and properly seated. Otherwise the specified degrees of protection
cannot be guaranteed.
Make sure that the cables in the terminal compartment are not bent too much.
When closing the terminal compartment cover, be careful not to trap the cables.
4. All Mobile Panels 2nd Generation with the exception of the KTP400F Mobile: Attach the
retainer.
