Configuring the Mobile Panel
6.4 Additional configuration options in WinCC
Mobile Panels 2nd Generation
182 Operating Instructions, 09/2018, A5E33876626-AC

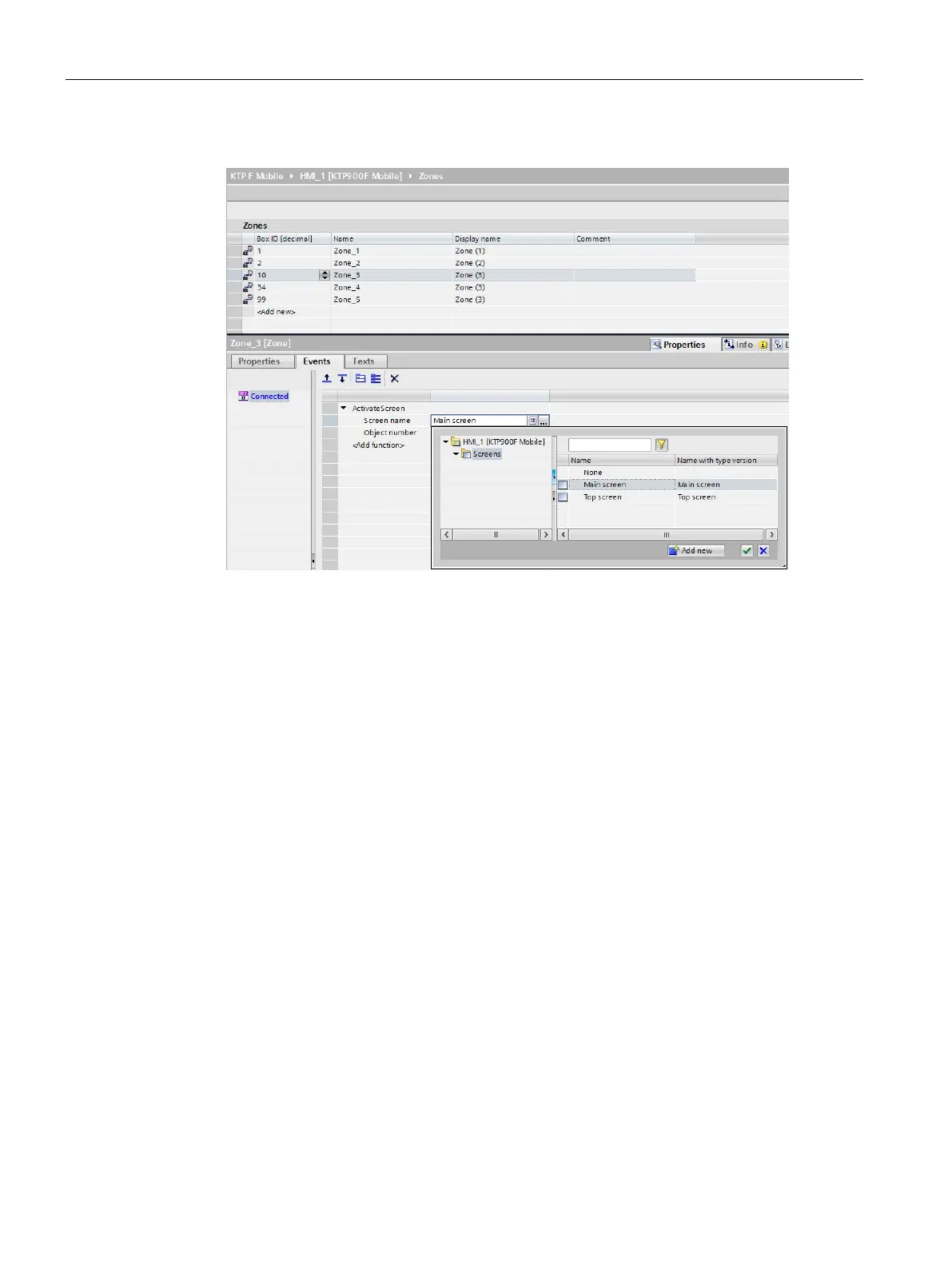

4. Select "ActivateScreen".
5. Select an existing screen or create a new screen for the selected zone.
6. Confirm your entries.
The plant areas are assigned the required screens.
See also
Configuring connection point detection (Page 179)
Setting the box ID of the connection box (Page 70)
6.4
Additional configuration options in WinCC
6.4.1
Configuring function and direct keys
Configure the following operator controls for the Mobile Panel based on a plant and plant
area:
● Function keys
Configure the function keys as required so that you can use operator controls such as the
message display, trend view, recipe view and Status/Force.
The function assigned locally to a function key may vary from screen to screen. A
function key can only be assigned one function within a screen, either a global or local
one. The local assignment function takes priority over the global setting.
