11.11 Interfaces of the connection box standard and connection box advanced
Mobile Panels 2nd Generation
248 Operating Instructions, 09/2018, A5E33876626-AC
11.11
Interfaces of the connection box standard and connection
box advanced
11.11.1
Position of the interfaces

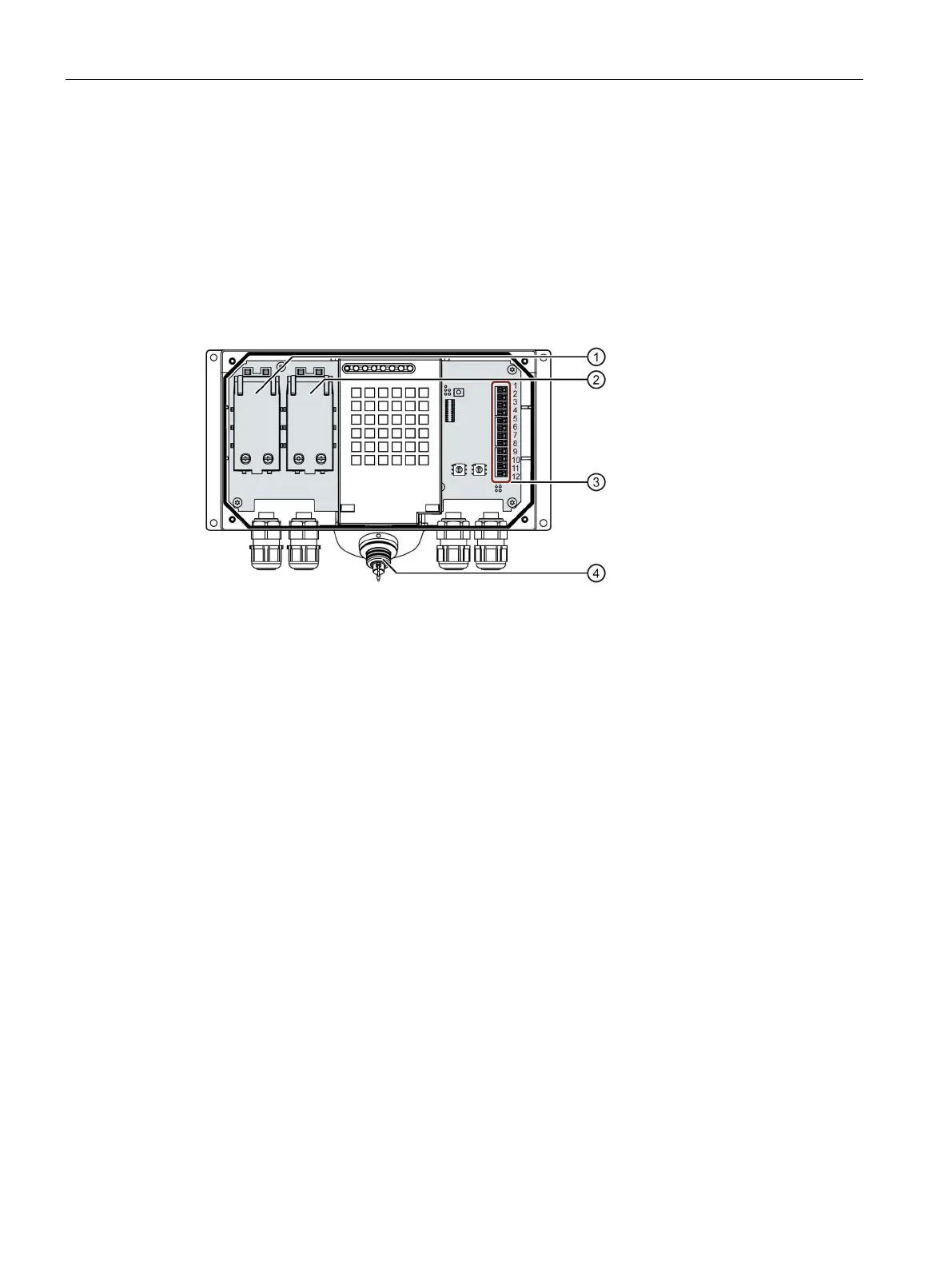

The figure below shows the position of the interfaces in the connection box standard and in
the connection box advanced that are relevant for connecting the data and power supply
cables.
①
Fast Connector X1
②
Fast Connector X2
③
Interface X10
④
Connection socket (X300)
