Siemens SIMATIC HMI KTP400F Mobile - Wiring of Safety-Related Operator Controls

Technical specifications
11.10 Connection box compact interfaces
Mobile Panels 2nd Generation
246 Operating Instructions, 09/2018, A5E33876626-AC
11.10.4
Wiring of safety-related operator controls
Emergency stop/stop button

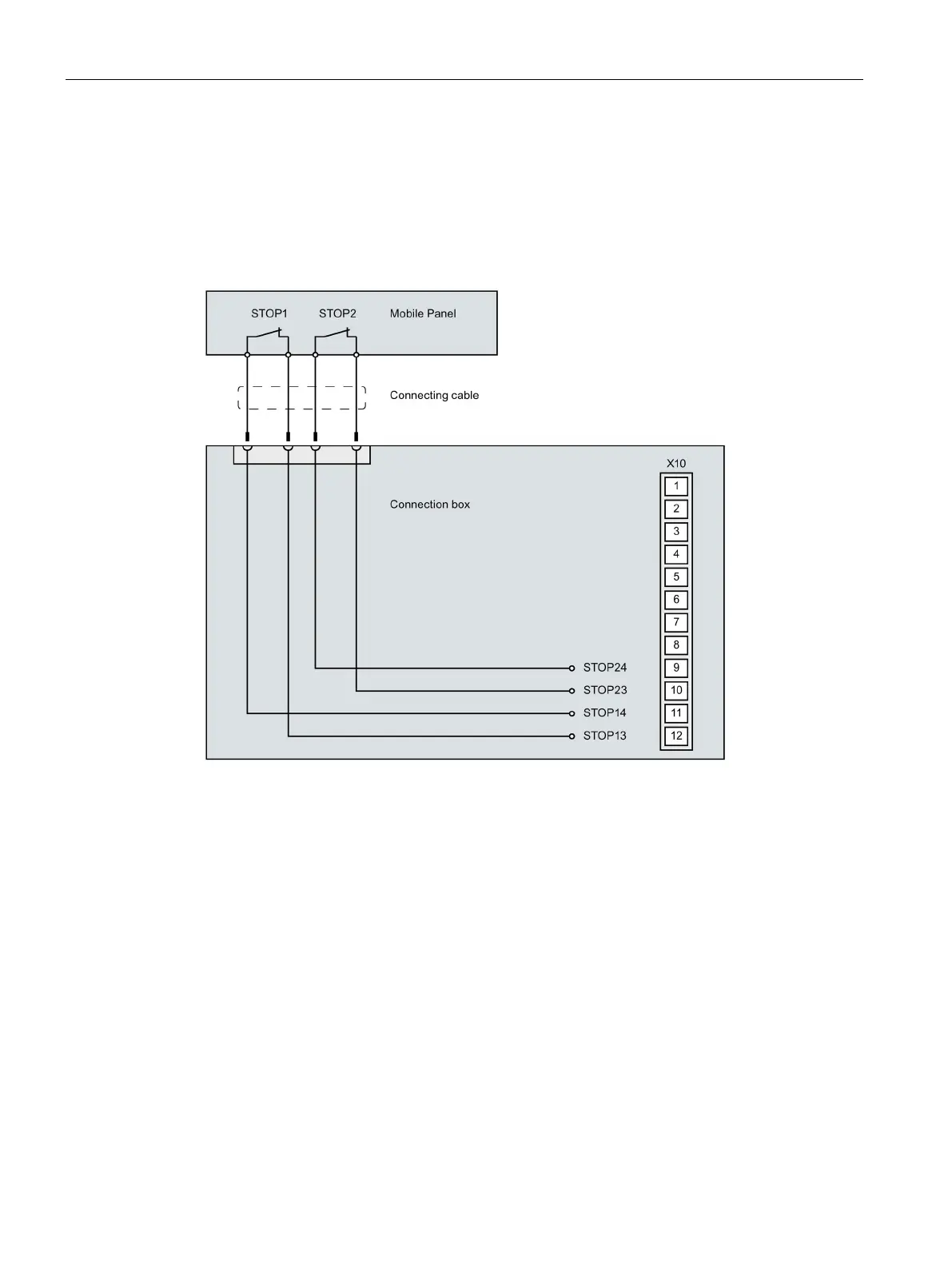

The figure below shows the wiring of the emergency stop/stop button in the connection box
compact.
