4.5 Testing Mobile Panel readiness for operation
Mobile Panels 2nd Generation
Operating Instructions, 09/2018, A5E33876626-AC
85
4.5
Testing Mobile Panel readiness for operation
This section describes how to check the operational readiness of the Mobile Panel after you
have connected the connecting cable and, if necessary, a memory card to the Mobile Panel.
You can find a description of the PROFIsafe communication in the section
"Fail-safe operation (Page 209)".
Requirement
● A connection box compatible with the HMI device is in place and ready for operation.
See "Mobile Panel and connection box compatibility (Page 29)".
Procedure
Switching on
1. Plug the connecting cable into the connection box.
If the HMI device does not start, the wires at interface X10 in the connection box may
have been crossed. Check the connected wires and change the connections if
necessary.
When plugging and unplugging the connecting cable, follow
"Connecting the KTP Mobile connecting cable to the connection box (Page 73)".
The HMI device display lights up once the cable is connected. A start screen is displayed
during startup. The desktop with the Start Center is then displayed, see section
"Desktop and Start Center (Page 87)".

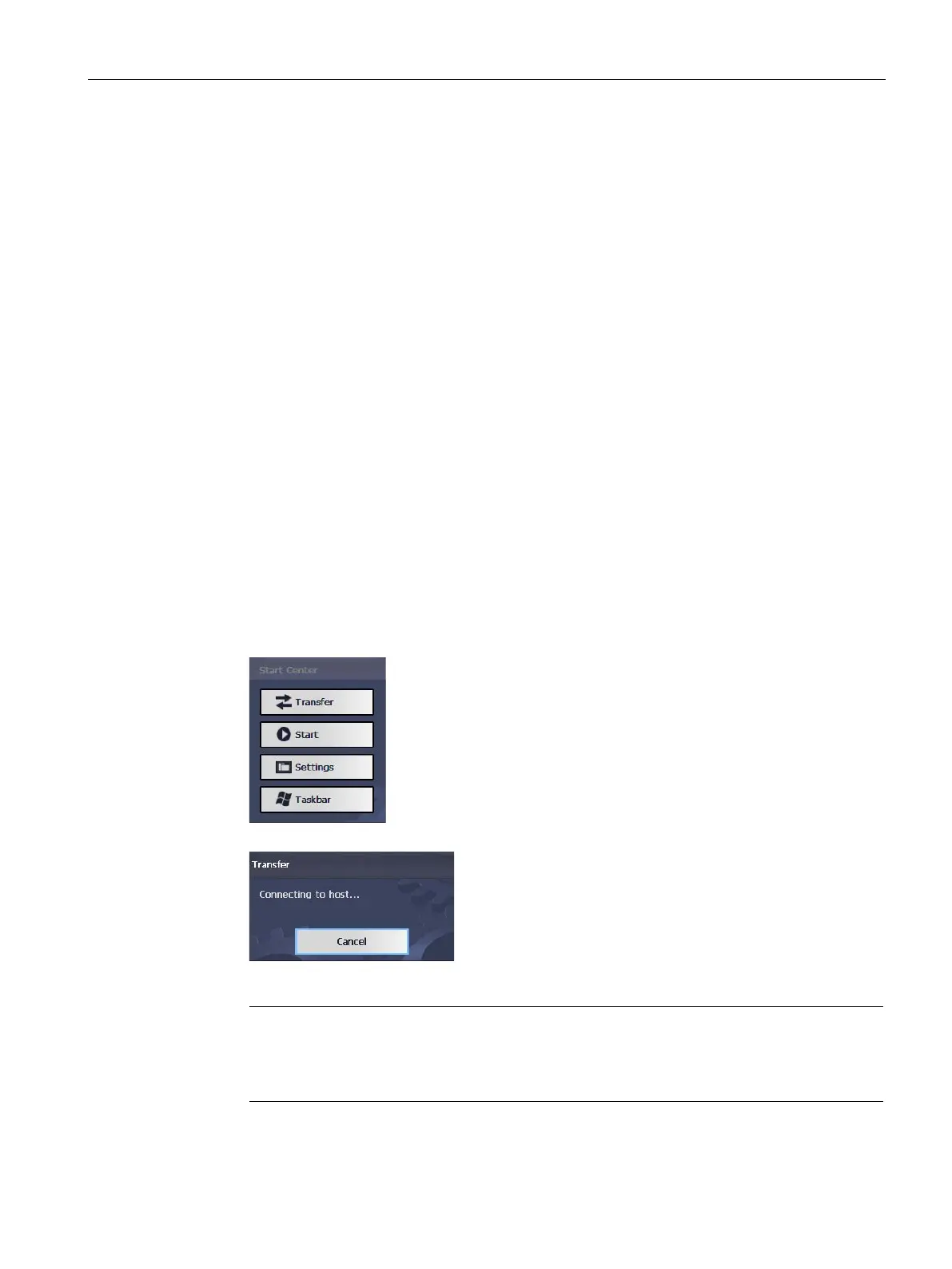

The following dialog then appears:
2. Press "Cancel" to stop the transfer.
Note
When you restart the HMI device, a project may already be loaded. The system then
skips "Transfer" mode and starts the project. Use the relevant operator control to close
the project. Please refer to your plant documentation for additional information.
