Overview
1.2 Design of the PROFINET devices
Basic Panels 2nd Generation
12 Operating Instructions, 10/2016, A5E33293231-AB
1.2
Design of the PROFINET devices

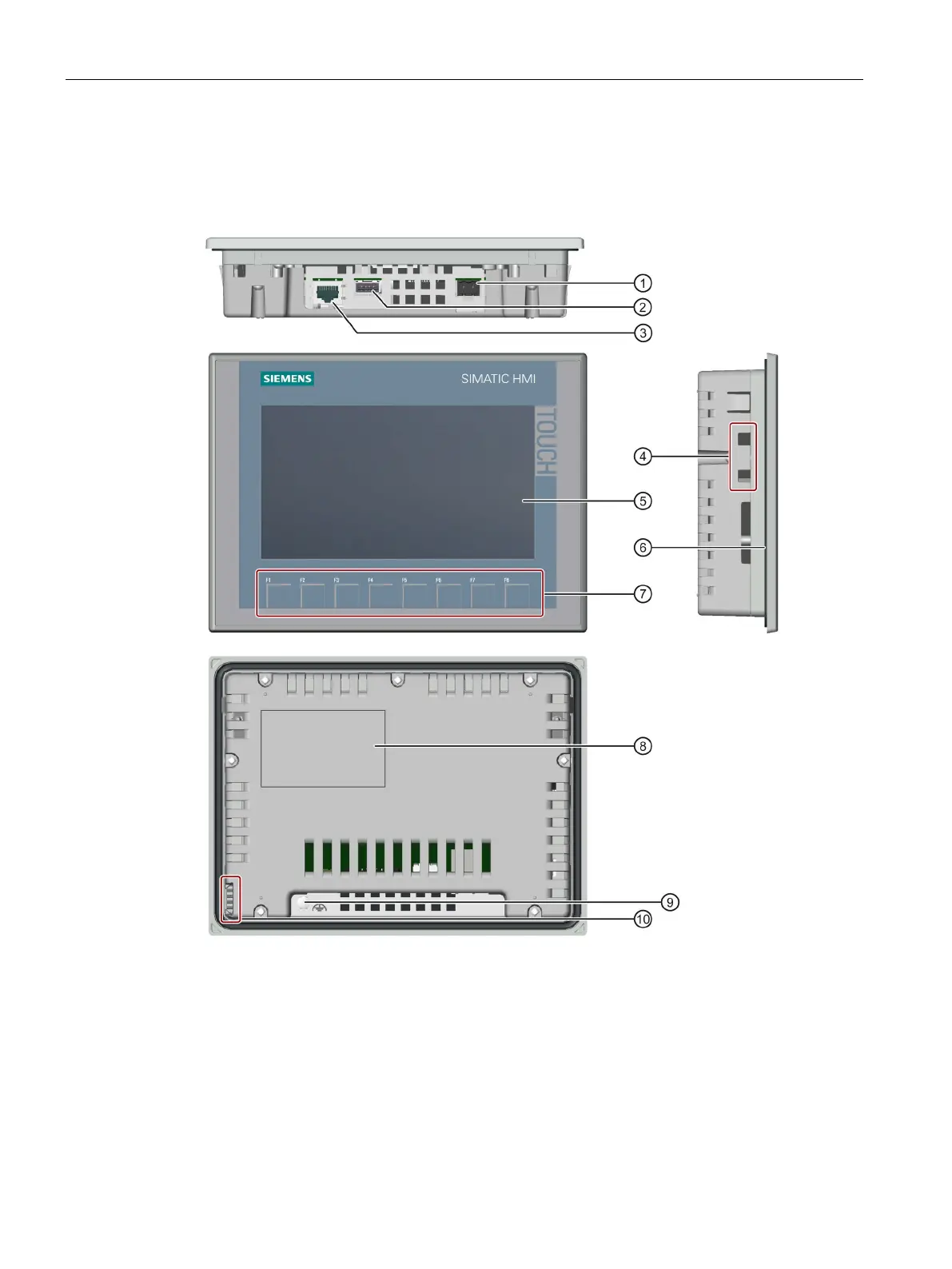

The figure below shows the design of the PROFINET devices using KTP700 Basic as an
example.
①
Power supply connection
⑥
Mounting seal
②
USB port
⑦
Function keys
③
PROFINET interface
⑧
Rating plate
④
Recesses for a mounting clip
⑨
Connection for functional ground
⑤
Display/touch screen
⑩
Guide for labeling strips

Siemens SIMATIC HMI KTP900 Basic Specifications

General

Display Size	9 inches
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Operating System	Windows CE
USB Port	1 x USB 2.0
Ambient Temperature (Operation)	0 to 50 °C
Ambient Temperature (Storage)	-20 to 60 °C
Relative Humidity	10% to 90% (non-condensing)
Protection Rating	IP65 (front)
Memory	12 MB
Communication Ports	Ethernet (RJ45)
Number of Colors	65536
