Siemens SIMATIC HMI KTP900 Basic User Manual

Technical specifications
8.8 Interface description
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
113
8.8
Interface description

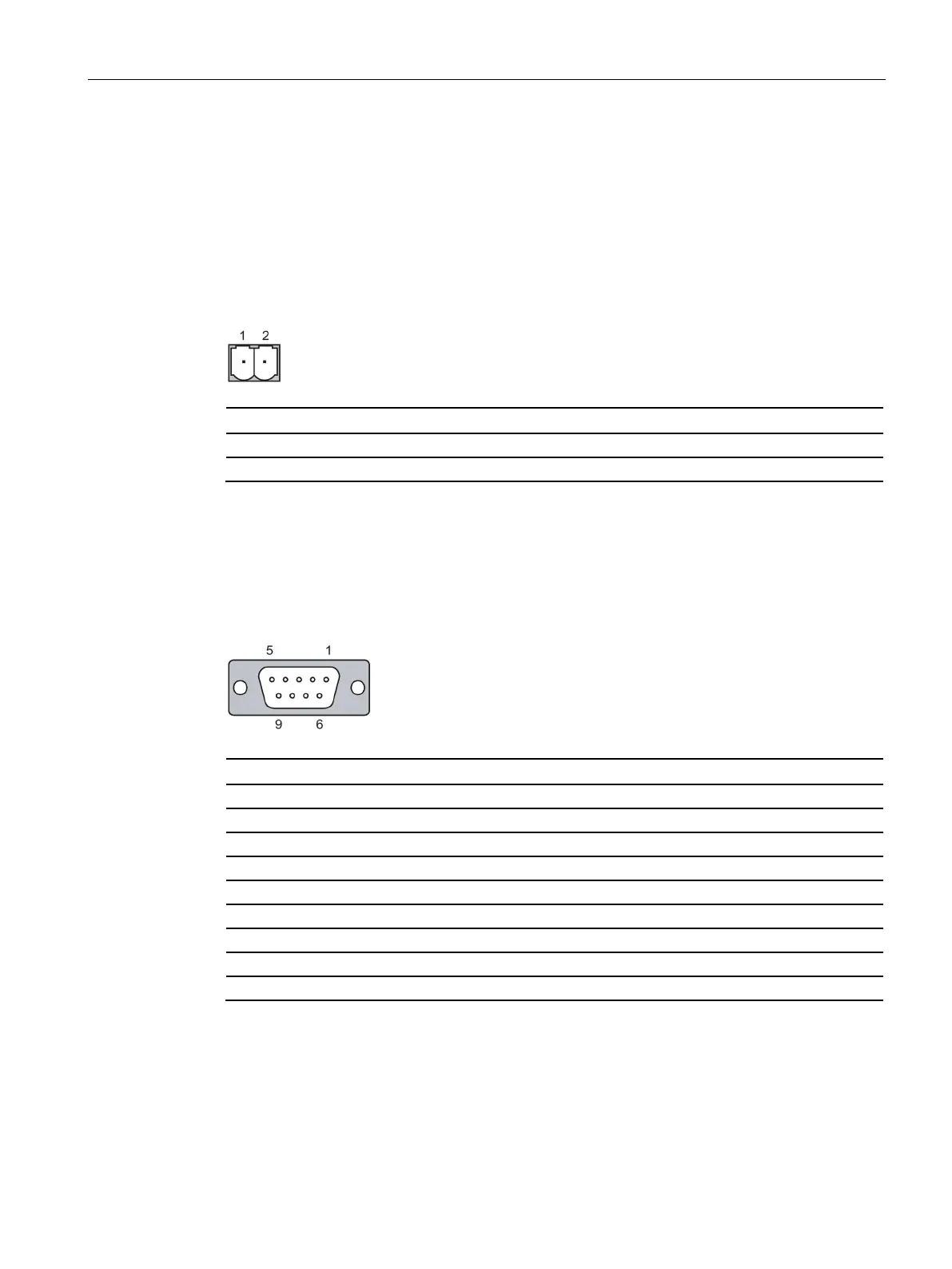

8.8.1
Power supply
Name of interface on HMI device: DC24V X80
Plug connector, 2-pin
Pin
Assignment
1
+24 V DC (L+)
2
GND 24 V (M)
8.8.2
PROFIBUS (Sub-D RS422/485)
Name of interface on HMI device: PROFIBUS DP X2
Sub-D socket, 9-pin, with screw lock
Pin
Assignment for the RS 422
Assignment for the RS 485
1
n. c.
n. c.
2
GND 24 V
GND 24 V
3
TxD+
Data channel B (+)
4
RxD+
RTS
5
GND 5 V, floating
GND 5 V, floating
6
+5 V DC, floating
+5 V DC, floating
7
+24 V DC, out (max. 100 mA)
+24 V DC, out (max. 100 mA)
8
TxD–
Data channel A (–)
9
RxD–
NC

Siemens SIMATIC HMI KTP900 Basic Specifications

General

Display Size	9 inches
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Operating System	Windows CE
USB Port	1 x USB 2.0
Ambient Temperature (Operation)	0 to 50 °C
Ambient Temperature (Storage)	-20 to 60 °C
Relative Humidity	10% to 90% (non-condensing)
Protection Rating	IP65 (front)
Memory	12 MB
Communication Ports	Ethernet (RJ45)
Number of Colors	65536
