Siemens SIMATIC HMI KTP900 Basic User Manual

Configuring the device
5.8 Editing communication connections
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
55
5.8
Editing communication connections

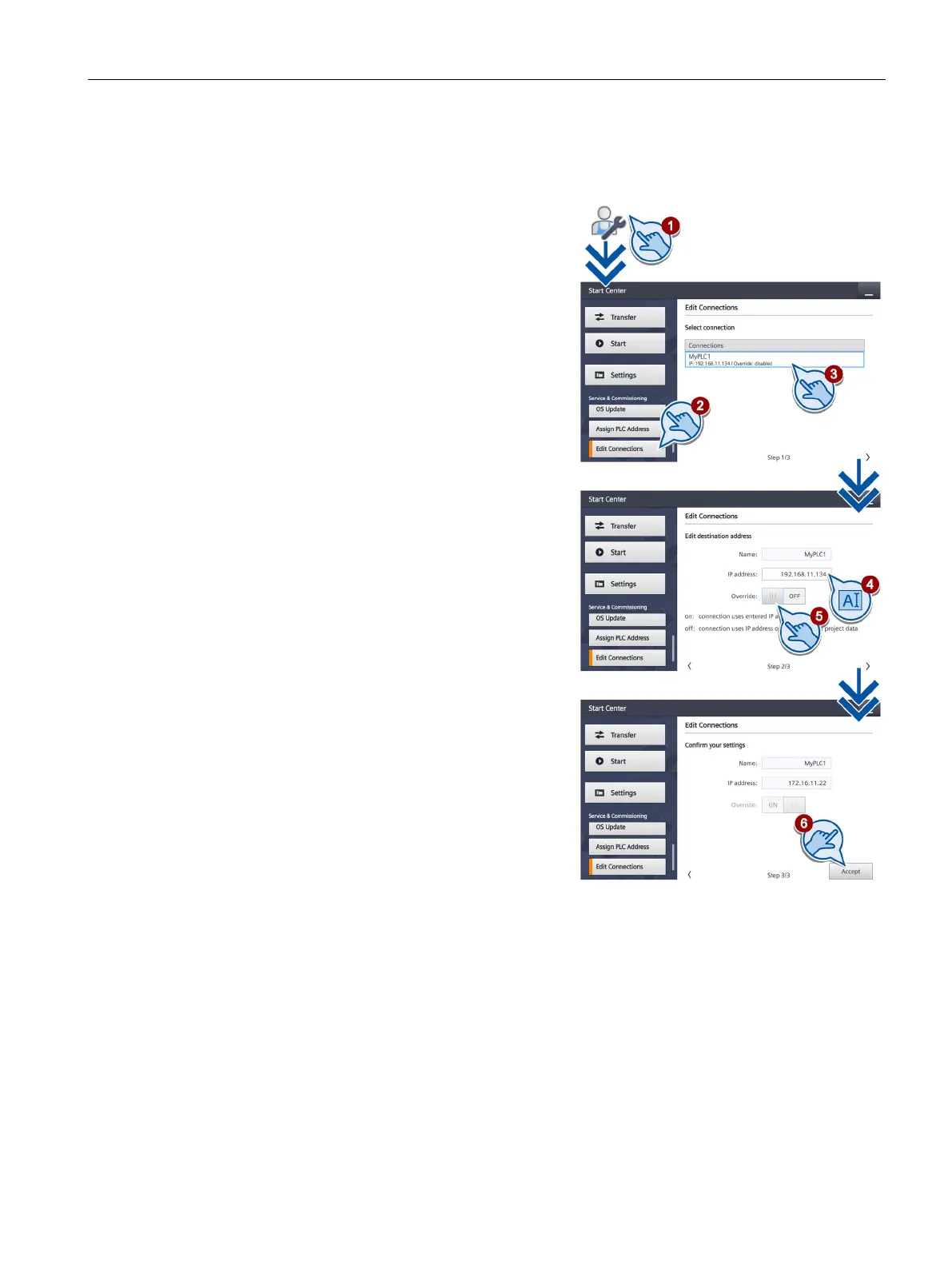

1.
Touch the "Service & Commissioning"
icon.
2.
Press the "Edit Connections" button.
With "Edit Connections", you overwrite
the parameters of configured controller
connections
in the current project.
3.
A list shows all communication
connections to controllers.
Select a communication connection
from the list.
4.
The configured name and IP address
are displayed.
You can enter a new IP address.
5.
Set the "Override" switch to "ON".
The connection parameters will only be
overwritten if "Override" is enabled
6.
Use the "Accept" button to confirm.
The configured IP address is overwritten.

Siemens SIMATIC HMI KTP900 Basic Specifications

General

Display Size	9 inches
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Operating System	Windows CE
USB Port	1 x USB 2.0
Ambient Temperature (Operation)	0 to 50 °C
Ambient Temperature (Storage)	-20 to 60 °C
Relative Humidity	10% to 90% (non-condensing)
Protection Rating	IP65 (front)
Memory	12 MB
Communication Ports	Ethernet (RJ45)
Number of Colors	65536
