Siemens SIMATIC HMI KTP900 Basic User Manual

Mounting and connecting
3.1 Preparations
Basic Panels 2nd Generation
Operating Instructions, 10/2016, A5E33293231-AB
23

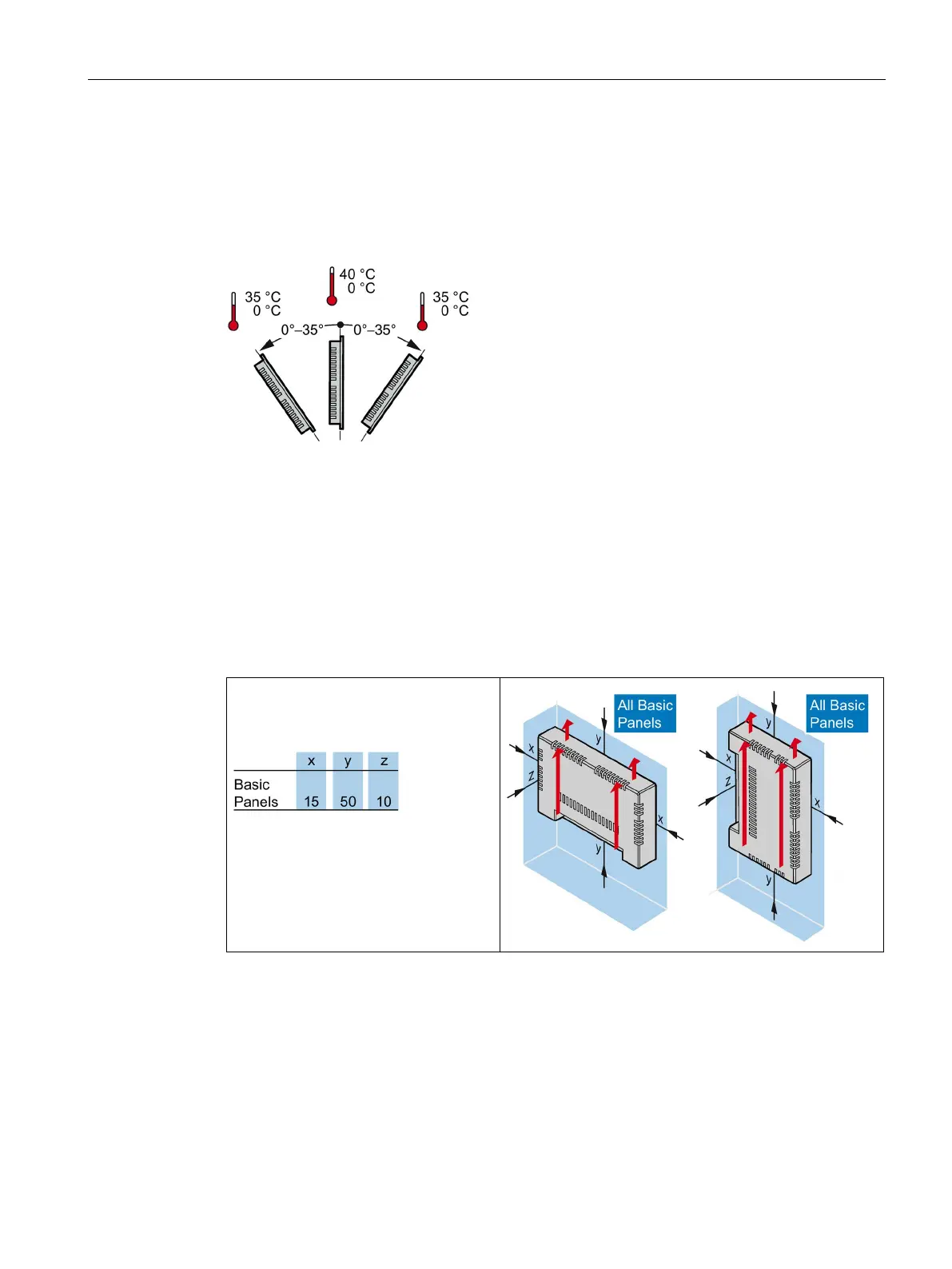

Mounting in vertical format
Ambient temperature in the cabinet with vertical mounting:
● Vertical mounting (0° inclined): Maximum +40 °C
● Inclined mounting (inclined up to 35°): Maximum +35 °C
See also
Operating Conditions (Page 101)
3.1.4
Checking clearances
The following clearances are required around the HMI device to ensure sufficient self-
ventilation:
Required clearance around the
HMI devices.
All dimensions in mm

Siemens SIMATIC HMI KTP900 Basic Specifications

General

Display Size	9 inches
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Operating System	Windows CE
USB Port	1 x USB 2.0
Ambient Temperature (Operation)	0 to 50 °C
Ambient Temperature (Storage)	-20 to 60 °C
Relative Humidity	10% to 90% (non-condensing)
Protection Rating	IP65 (front)
Memory	12 MB
Communication Ports	Ethernet (RJ45)
Number of Colors	65536
