Siemens SIMATIC HMI KTP900 Basic User Manual

Operating the device
4.3 The screen keyboards
Basic Panels 2nd Generation
42 Operating Instructions, 10/2016, A5E33293231-AB
4.3
The screen keyboards
A screen keyboard appears on the HMI device touch screen when you touch an operating
element that requires input. Depending on the type of operating element and the required
input, this may be an alphanumerical or a numerical keyboard.
Both keyboards are available in landscape and in portrait.

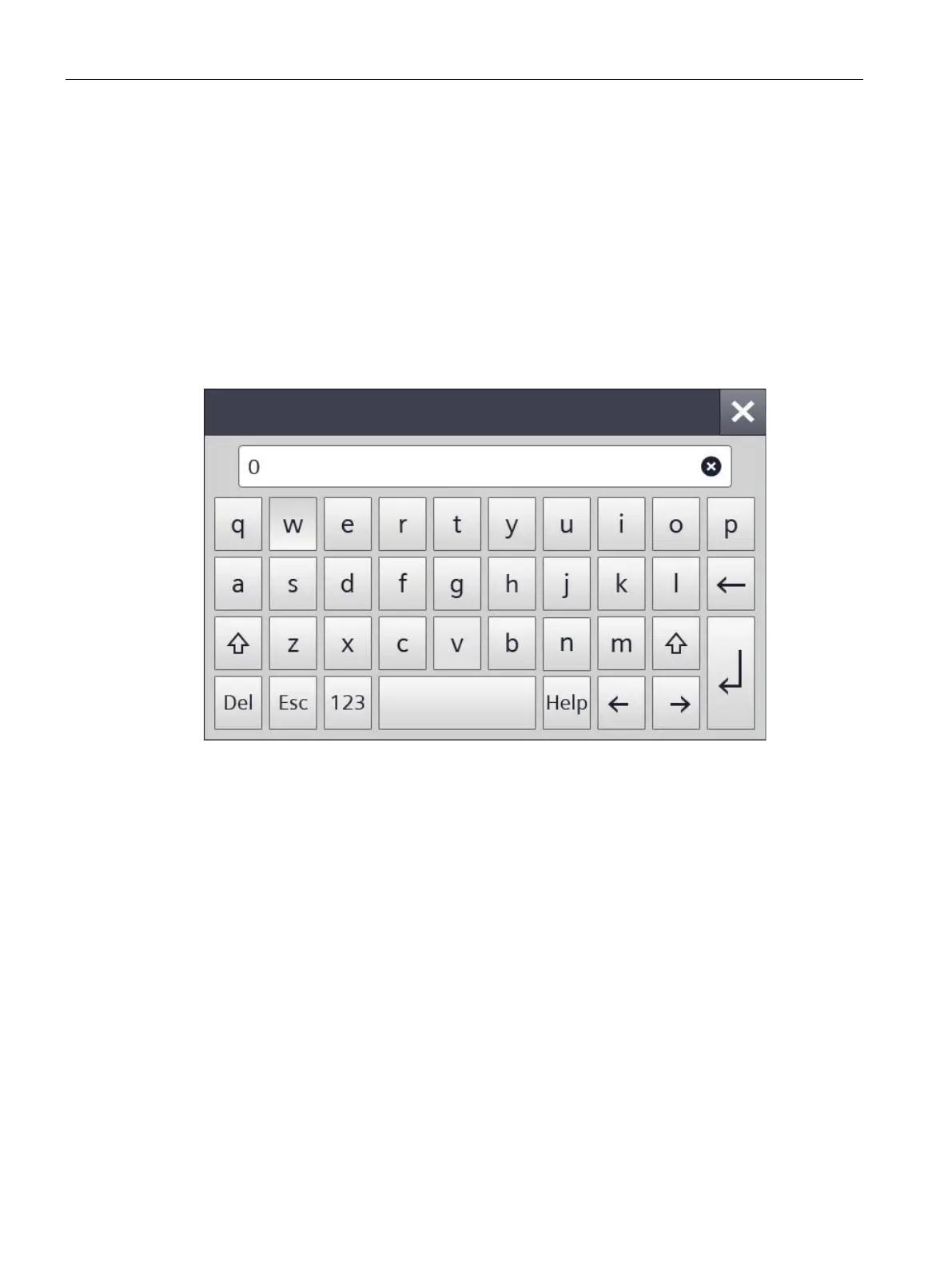

Alphanumerical screen keyboard
For HMI devices in landscape, the alphanumerical keyboard has the assignment of a
computer keyboard in US layout ("QWERTY"). You can set the keyboard to capital letters.

Siemens SIMATIC HMI KTP900 Basic Specifications

General

Display Size	9 inches
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Operating System	Windows CE
USB Port	1 x USB 2.0
Ambient Temperature (Operation)	0 to 50 °C
Ambient Temperature (Storage)	-20 to 60 °C
Relative Humidity	10% to 90% (non-condensing)
Protection Rating	IP65 (front)
Memory	12 MB
Communication Ports	Ethernet (RJ45)
Number of Colors	65536
