Mounting and connecting
3.4 Switching on and testing the HMI device
Basic Panels 2nd Generation
36 Operating Instructions, 10/2016, A5E33293231-AB
Note
Excessive rated load on port
A USB device with too high a power load may possibly cau
se functional problems.
Observe the values for the maximum load of the USB interface. You can find the values in
the chapter "
USB (Page 114)".
Note
USB stick is not detected.
Depending on the type of USB stick you use, it may happen that the operating system does
not detect the USB stick. In this case, use a different USB stick.
3.4
Switching on and testing the HMI device

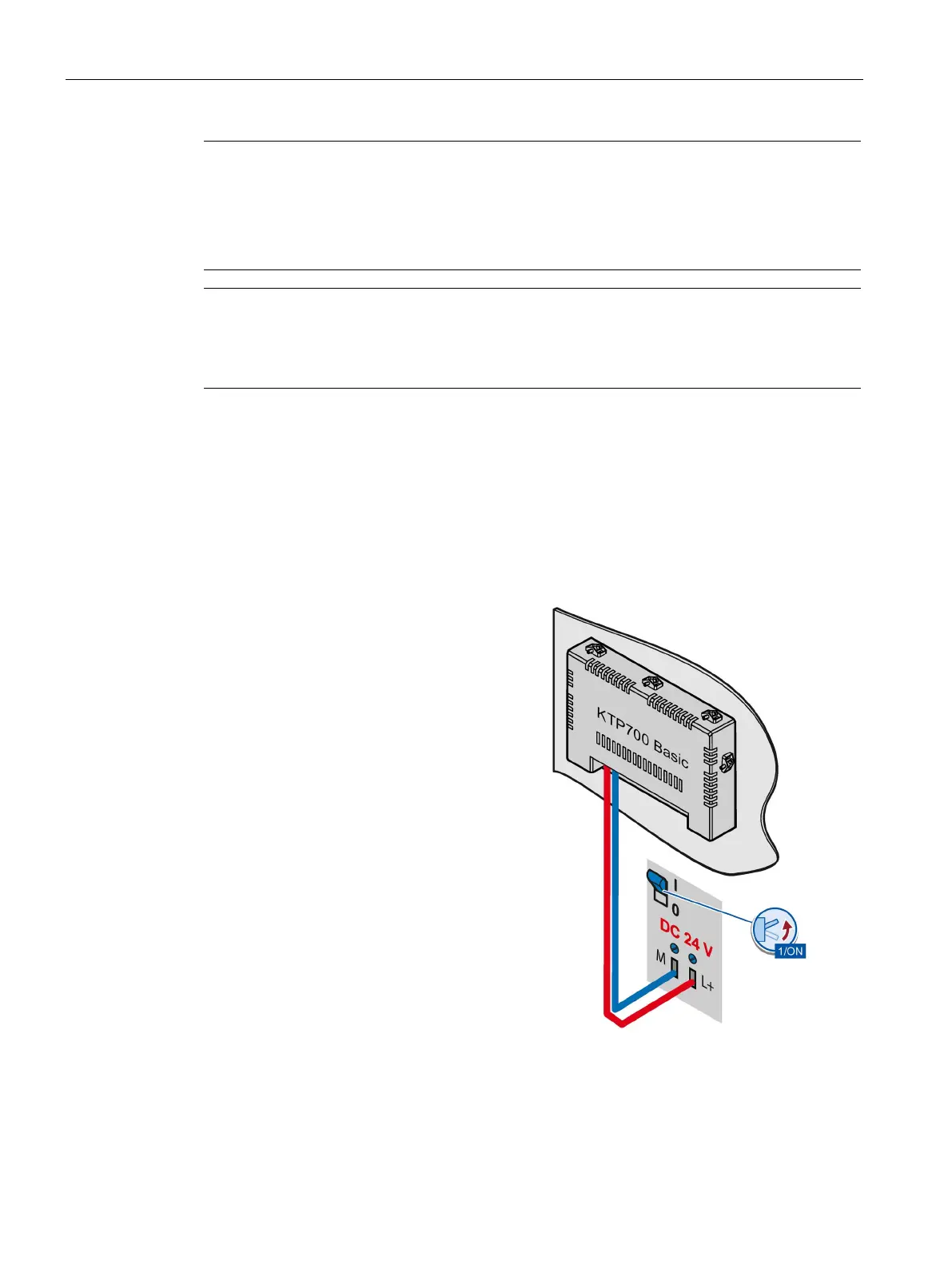

Switching on the HMI device
Switching on the power supply.
The screen lights up shortly after power
is switched on.
If the HMI device fails to start, you may
have crossed the cables on the power
supply connector. Check the connected
cables and change their connection.

Siemens SIMATIC HMI KTP900 Basic Specifications

General

Display Size	9 inches
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Operating System	Windows CE
USB Port	1 x USB 2.0
Ambient Temperature (Operation)	0 to 50 °C
Ambient Temperature (Storage)	-20 to 60 °C
Relative Humidity	10% to 90% (non-condensing)
Protection Rating	IP65 (front)
Memory	12 MB
Communication Ports	Ethernet (RJ45)
Number of Colors	65536
