Siemens SIMATIC HMI KTP900 Basic User Manual

Mounting and connecting
3.2 Mounting the HMI device
Basic Panels 2nd Generation
26 Operating Instructions, 10/2016, A5E33293231-AB

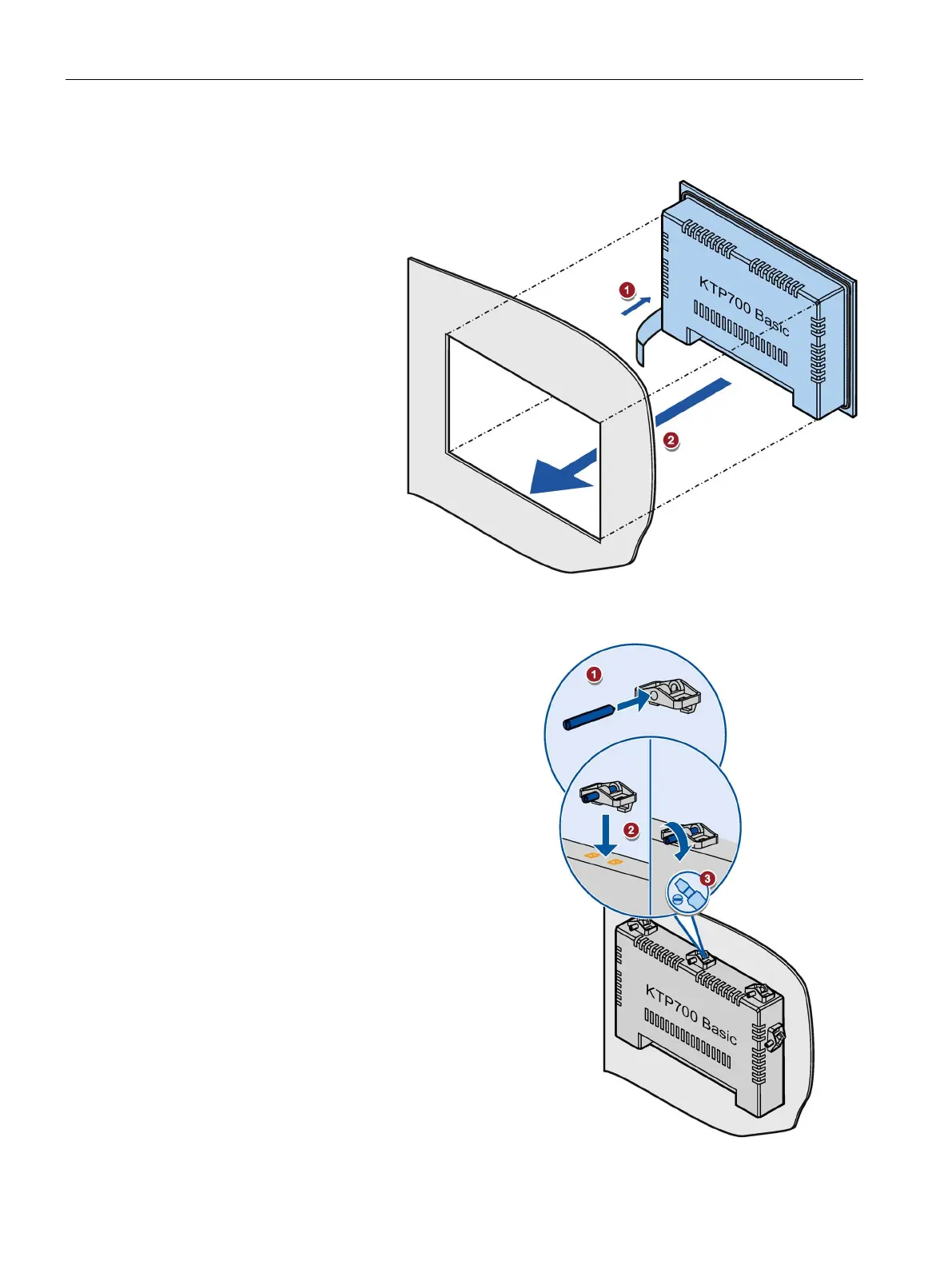

Inserting the HMI device
1.
Slide the labeling strip
into the device using
the guide, if available.
2.
Insert the HMI device
into the mounting
cutout from the front.
Make sure that
protruding labeling
strips are not caught
between the mounting
cutout and HMI device.
Securing the HMI device with mounting clips
1.
If mounting clips and grub screws are
available separately in the accessory
kit, insert a grub screw into the
mounting clip bore hole and turn it
several times.
2.
Place the first mounting clip into the
corresponding cutout.
3.
Fasten the mounting clip with a size 2
screwdriver. The maximum permitted
torque is 0.2 Nm.
4.
Repeat steps 1 to 3 for all mounting
clips required to secure your HMI
device.

Siemens SIMATIC HMI KTP900 Basic Specifications

General

Display Size	9 inches
Display Type	TFT
Resolution	800 x 480 pixels
Touchscreen	Yes
Interface	PROFINET
Power Supply	24 V DC
Operating System	Windows CE
USB Port	1 x USB 2.0
Ambient Temperature (Operation)	0 to 50 °C
Ambient Temperature (Storage)	-20 to 60 °C
Relative Humidity	10% to 90% (non-condensing)
Protection Rating	IP65 (front)
Memory	12 MB
Communication Ports	Ethernet (RJ45)
Number of Colors	65536
