Overview
1.2 Design of the devices
SIMATIC IPC127E
10 Operating Instructions, 01/2019, A5E44296915-AA
1.2 Design of the devices

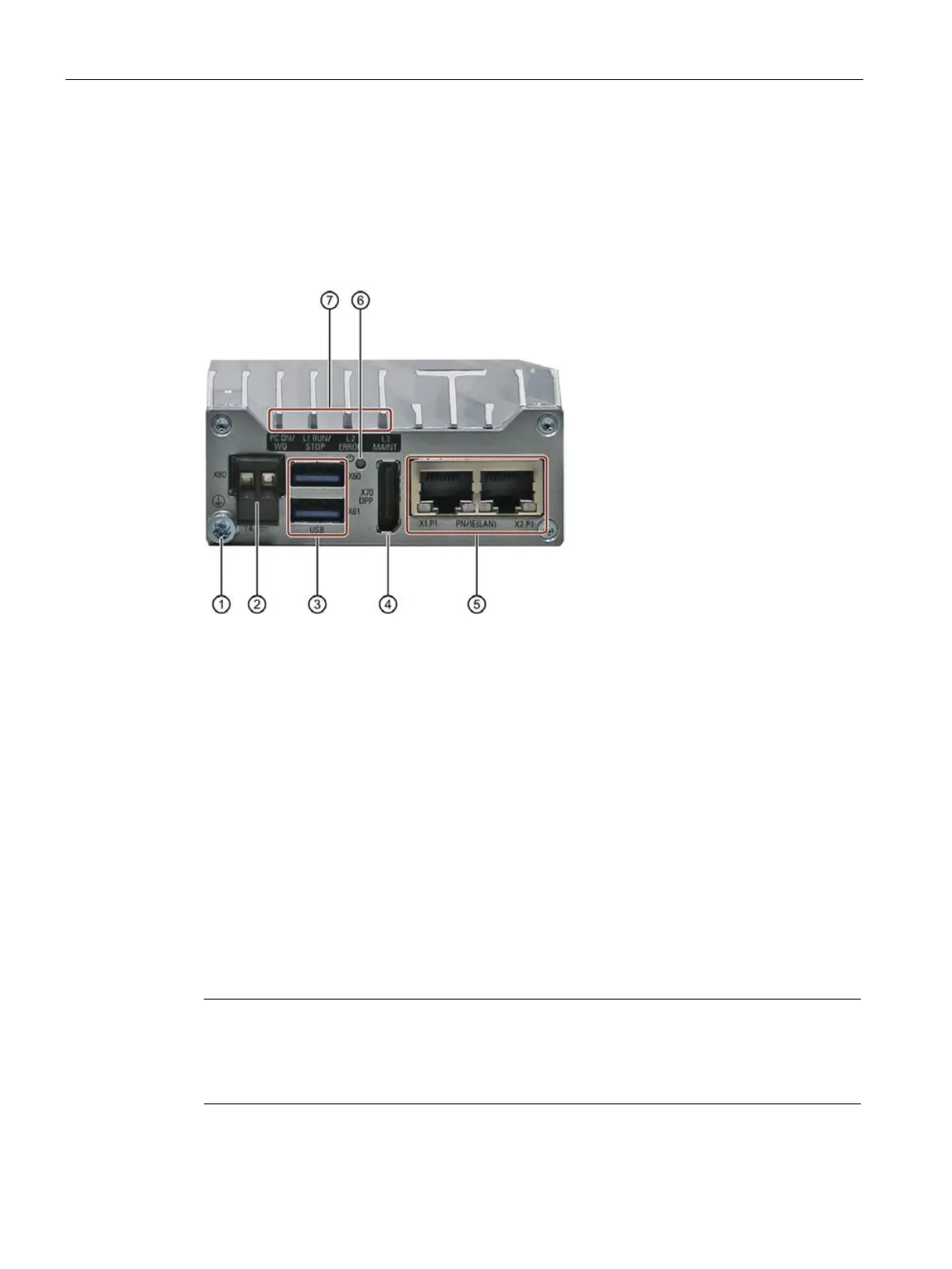

1.2.1 Interfaces and connections of Basic device
Interfaces Basic device
Protective conductor connection
Connection for a 24 VDC power supply
2 x USB 3.0 port, high current
2 x RJ45 Ethernet connection X1 and X2 for 10/100/1000
Mbps
The on/off button has three functions:
● Switch on the PC: Briefly press once
● Shut down operating system and switch off PC: Briefly press once
● Switch off PC without shutting down the operating system (hardware reset): Press for
more than 4 seconds.
Note
The BIOS setup entry "After Power Failure" is preset to "Power On". This means the device
is switched on with the on/off switch.
not need to press the on/off button to switch it on.
