Mounting and connecting the device
3.1 Preparing for mounting
SIMATIC IPC127E
Operating Instructions, 01/2019, A5E44296915-AA
23
3.1.3 Permitted mounting positions

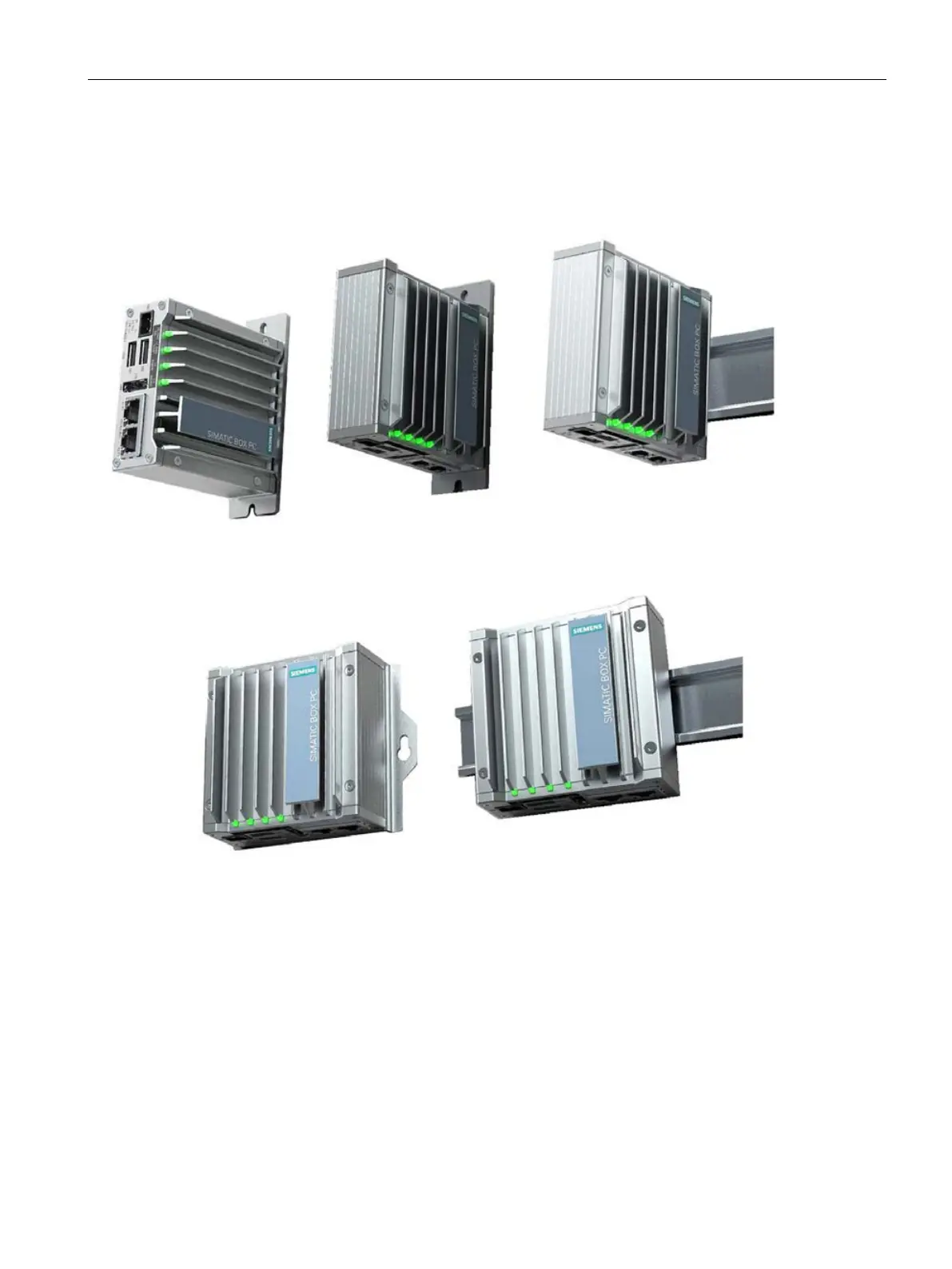

The following mounting positions are permitted:
Observe the permitted temperature range for operation in the respective mounting position
as defined in section "Technical specifications (Page 53)".
Ensure that the following clearances measurements to another component or to a wall of a
housing are complied with:
● Below the device: ≥ 50 mm
● Above the device: ≥ 50 mm
