Mounting and connecting the device
3.2 Mounting the device
SIMATIC IPC127E
28 Operating Instructions, 01/2019, A5E44296915-AA
3.2.3 Wall mounting
Wall mounting is suitable for horizontal mounting of the device.
Requirement
Mounting bracket
Note
Only use the supplied screws for fastening the mounting bracket. Longer screws can
damage the inside of the device.
A T10 screwdriver
Two anchors and two screws
Procedure for mounting
1
.
Mark the fixing holes on the mounting sur-
face.
2.
Drill the fixing holes.
3.
Insert the anchors in the drilled holes.
4.

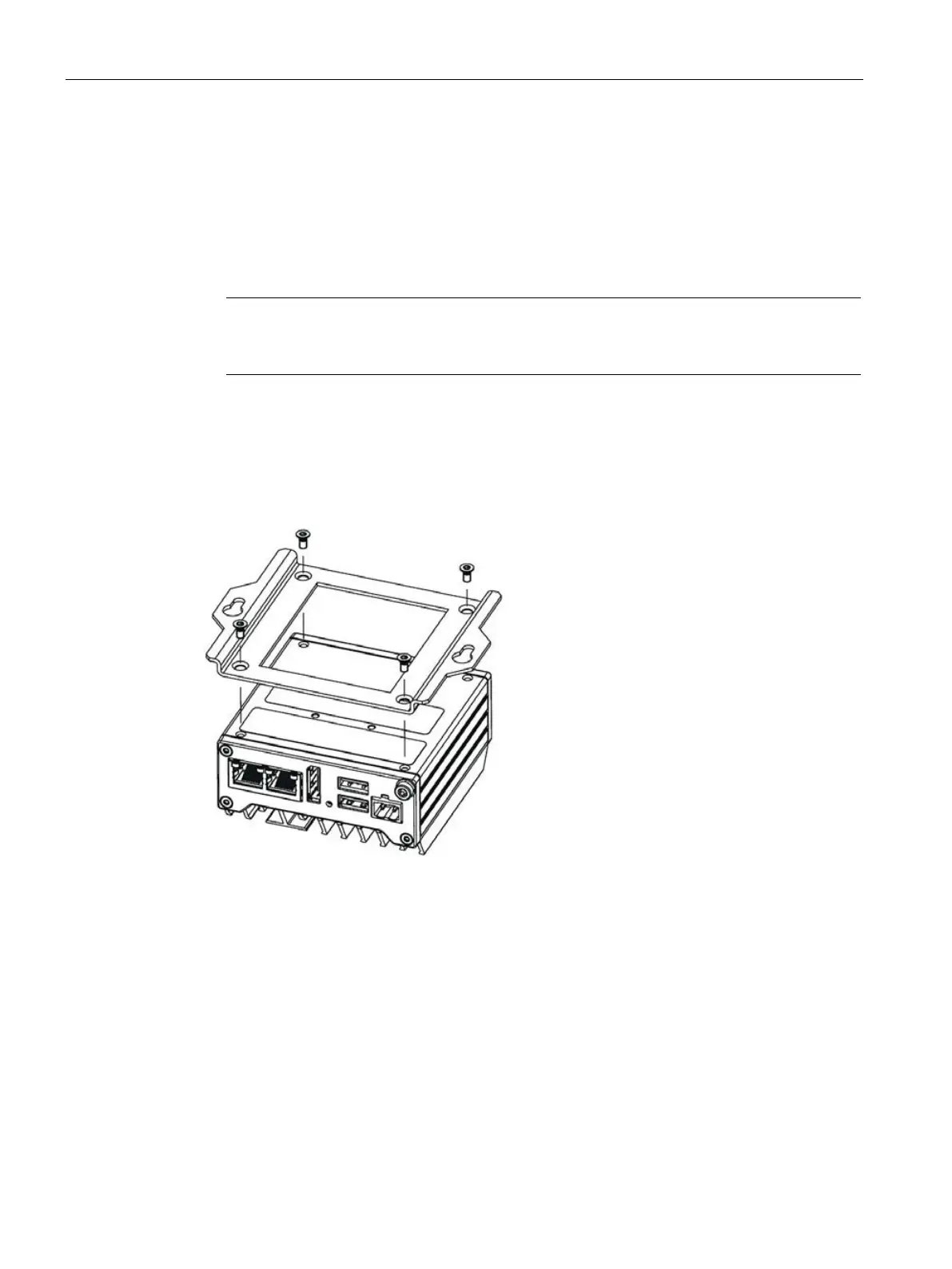

Place the mounting bracket on the rear of
the device. Note the orientation of the key-
hole bore holes of the mounting bracket.
5.
Fasten the mounting bracket with the four
supplied screws.
6.
Place the device with the mounting bracket
onto the mounting surface.
7.
Screw on the device.
See also
Dimension drawing basic device (Page 67)
Dimension drawing Extended device (Page 71)
